Engiro 205W_04

Engiro 205W_04

3 in stock
205W_04 Turns
205W Interface
205 Encoder Type
Request Quote
Request Quote

Excluding VAT

Ask for lead time / quote

Motor Pairing Considerations

Most customers speak to us before purchasing to ensure compatibility with:

  • Load profile: Is the motor driving a constant load, variable load, or shock loads?
  • Duty cycle: Continuous vs intermittent use, peak vs average power demand.
  • Environment: Marine (corrosion, humidity), agriculture (dust, mud), motorsport (heat, vibration).
  • Power/torque curve (does the motor deliver the torque at the speed you need?).
  • Cooling requirements (air vs liquid cooled, ventilation needs).

Contact us for any questions on motor pairing!

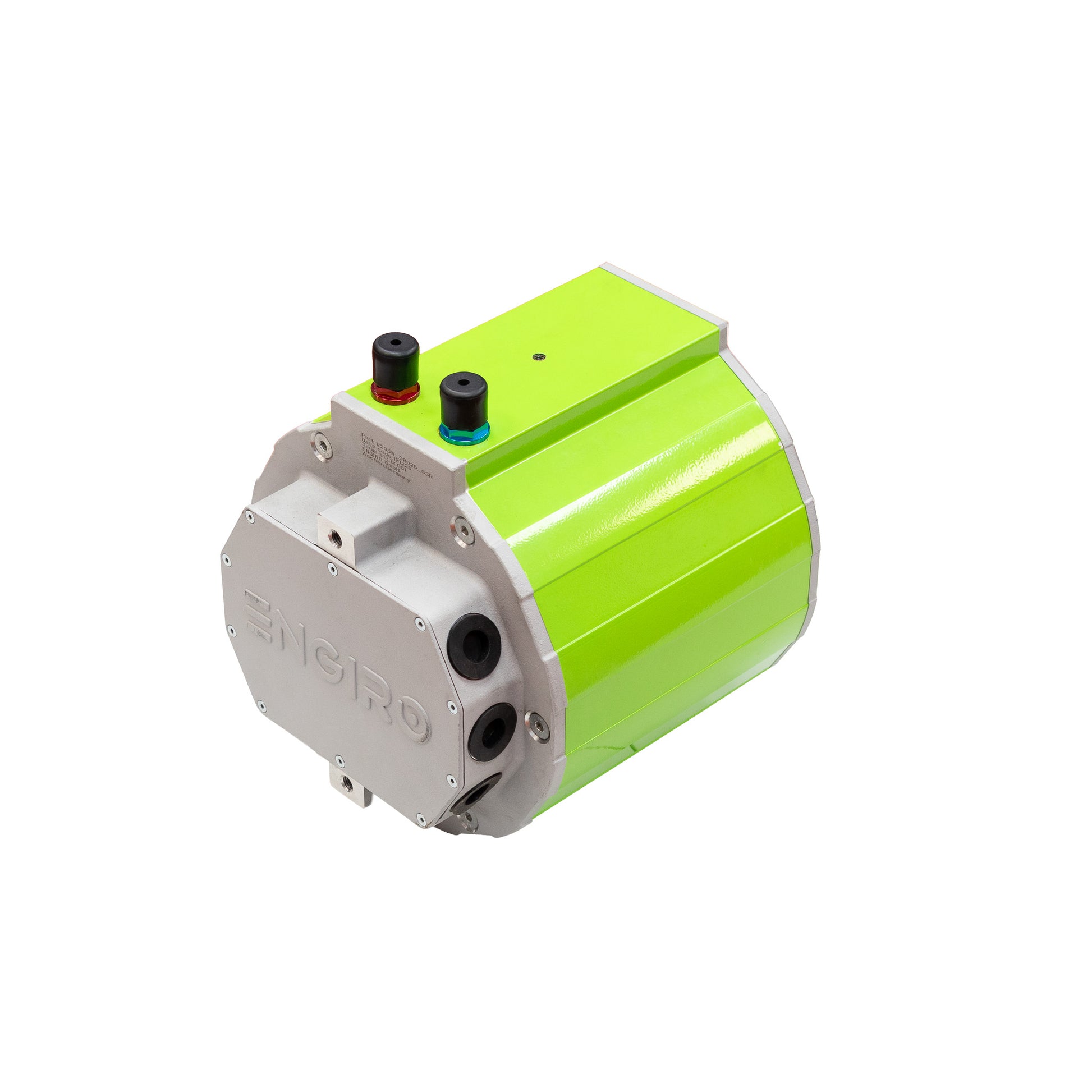

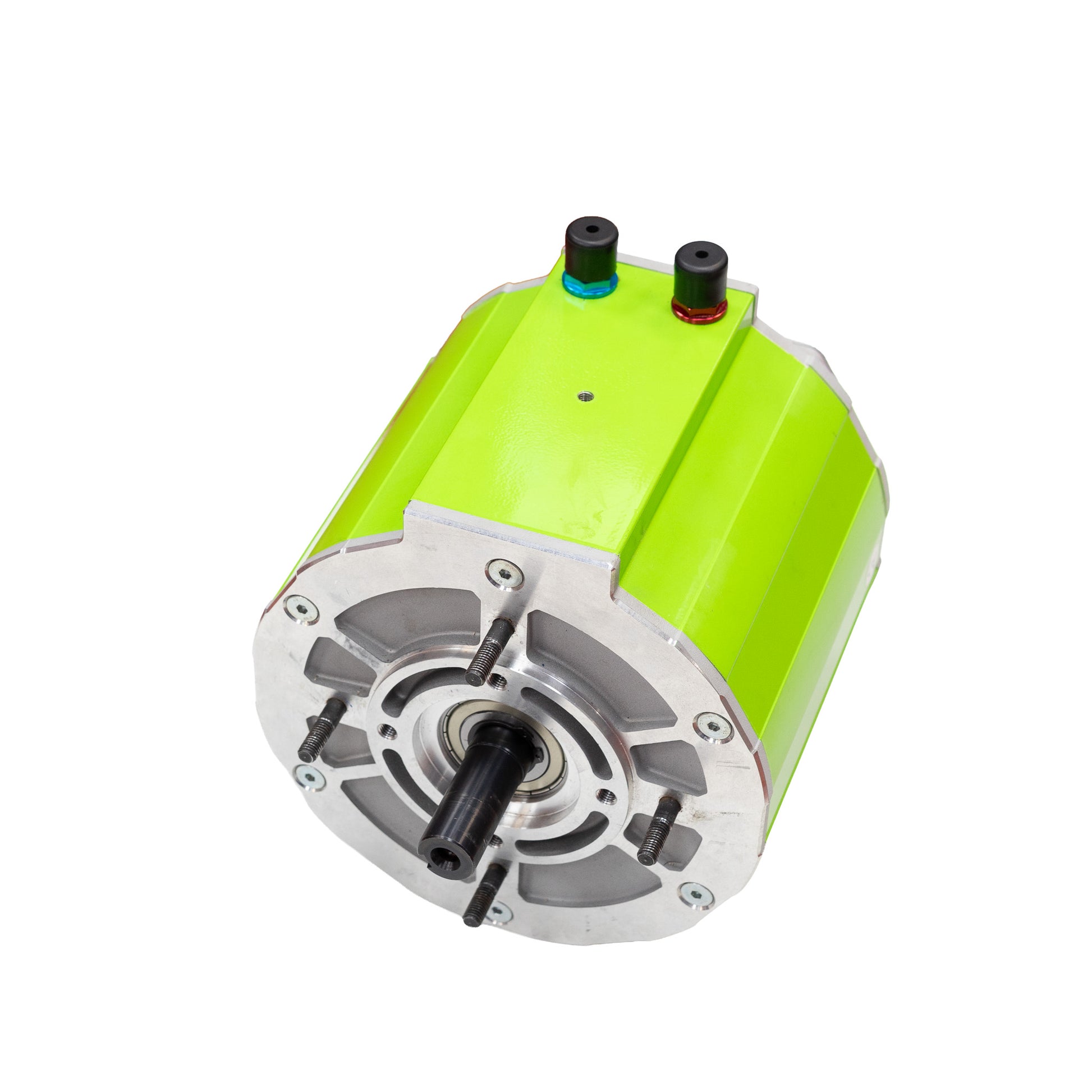

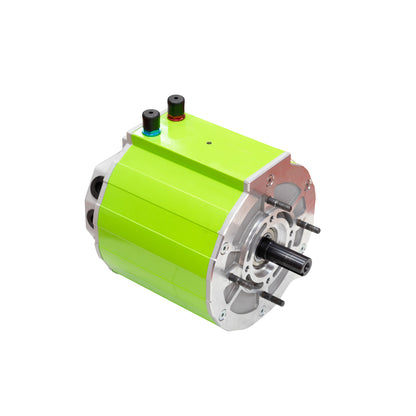

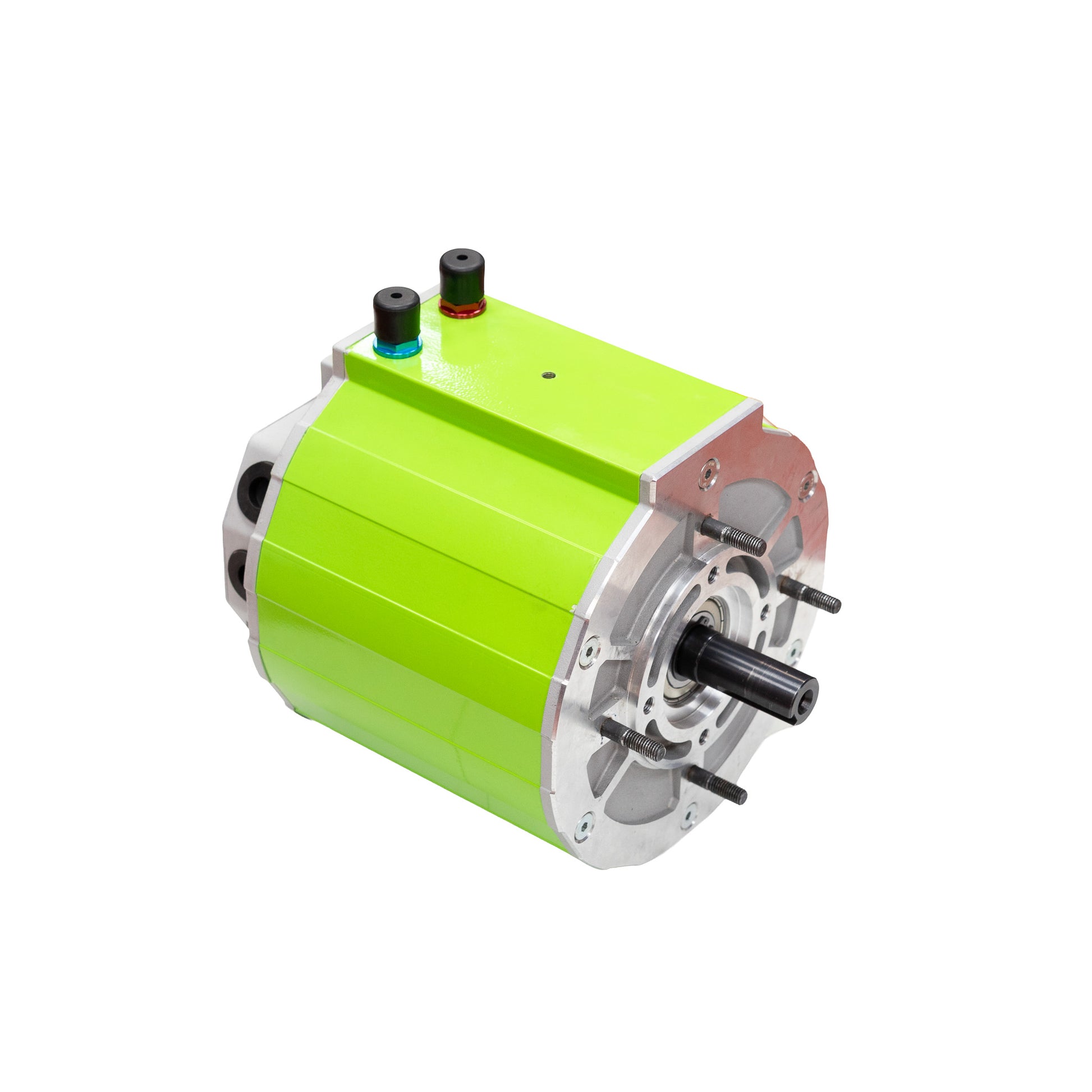

Engiro 205W_04 – Compact Water‑Cooled Motor for Lightweight EV Performance

The Engiro 205W_04 is a compact, high‑efficiency water‑cooled electric motor engineered for lightweight EV platforms that demand smooth torque delivery, excellent thermal stability, and long service life. Its small footprint and robust construction make it ideal for micro‑mobility, robotics, compact drive systems, and custom lightweight EV builds.

 Designed and manufactured in Germany, the 205W series delivers Engiro’s signature balance of power density, reliability, and controller flexibility, making it one of the most versatile motors in its class. Key Features Water‑Cooled Efficiency

The integrated liquid‑cooling system keeps temperatures stable under continuous load, enabling higher sustained performance compared to air‑cooled motors of similar size. Optimised for 24–48V Systems Perfect for low‑voltage EV architectures, offering excellent torque characteristics and compatibility with a wide range of battery configurations. Compact, Lightweight Design Ideal for applications where space and weight are critical without compromising on durability or output.

The 205W range is a reliable, adaptable motor platform engineered to deliver consistent performance across demanding applications.

Engiro 205W Family – Variant Selector

Start Identify voltage, cooling, and performance requirements.
↓
System Voltage
  • 24–800 V → There will be one in the range that is suitable!
Move to torque and duty cycle.
↓
Torque Requirement
  • Low torque → 205W_04
  • Medium torque → 205W_08
  • High torque → 205W_12
  • Very high torque → 205W_16
↓
Duty Cycle
  • Light / intermittent → 04 or 08
  • Medium / frequent → 08 or 12
  • Heavy / continuous → 12 or 16
Water‑cooling allows sustained output across all variants.
Feature 205W_04 205W_08 205W_12 205W_16
Cooling Water‑cooled Water‑cooled Water‑cooled Water‑cooled
Voltage Range 48–700 V 48–700 V 48–800 V 400-800 V
Torque Level 34-94Nm 56-189Nm 120-298Nm 174-386Nm
Controller Compatibility BorgWarner (Sevcon) / Curtis / DMC / Zapi BorgWarner (Sevcon) / Curtis / DMC / Zapi / NX BorgWarner (Sevcon) / Curtis / DMC / Zapi / NX BorgWarner (Sevcon) / NX

Specifications

Product Datasheet

 099T / Standard Keyway Shaft / 0.5 Gain Resolver191T / Standard Keyway Shaft / 0.5 Gain Resolver35T / Standard Keyway Shaft / Sin Cos13T / Standard Keyway Shaft / Sin Cos

Dimensions

 -

Manual

 -
