Engiro 205W_08

Engiro 205W_08

1 in stock
205W_08 Turns
205W Interface
205 Encoder Type
Request Quote
Request Quote

Excluding VAT

Ask for lead time / quote

Motor Pairing Considerations

Most customers speak to us before purchasing to ensure compatibility with:

  • Load profile: Is the motor driving a constant load, variable load, or shock loads?
  • Duty cycle: Continuous vs intermittent use, peak vs average power demand.
  • Environment: Marine (corrosion, humidity), agriculture (dust, mud), motorsport (heat, vibration).
  • Power/torque curve (does the motor deliver the torque at the speed you need?).
  • Cooling requirements (air vs liquid cooled, ventilation needs).

Contact us for any questions on motor pairing!

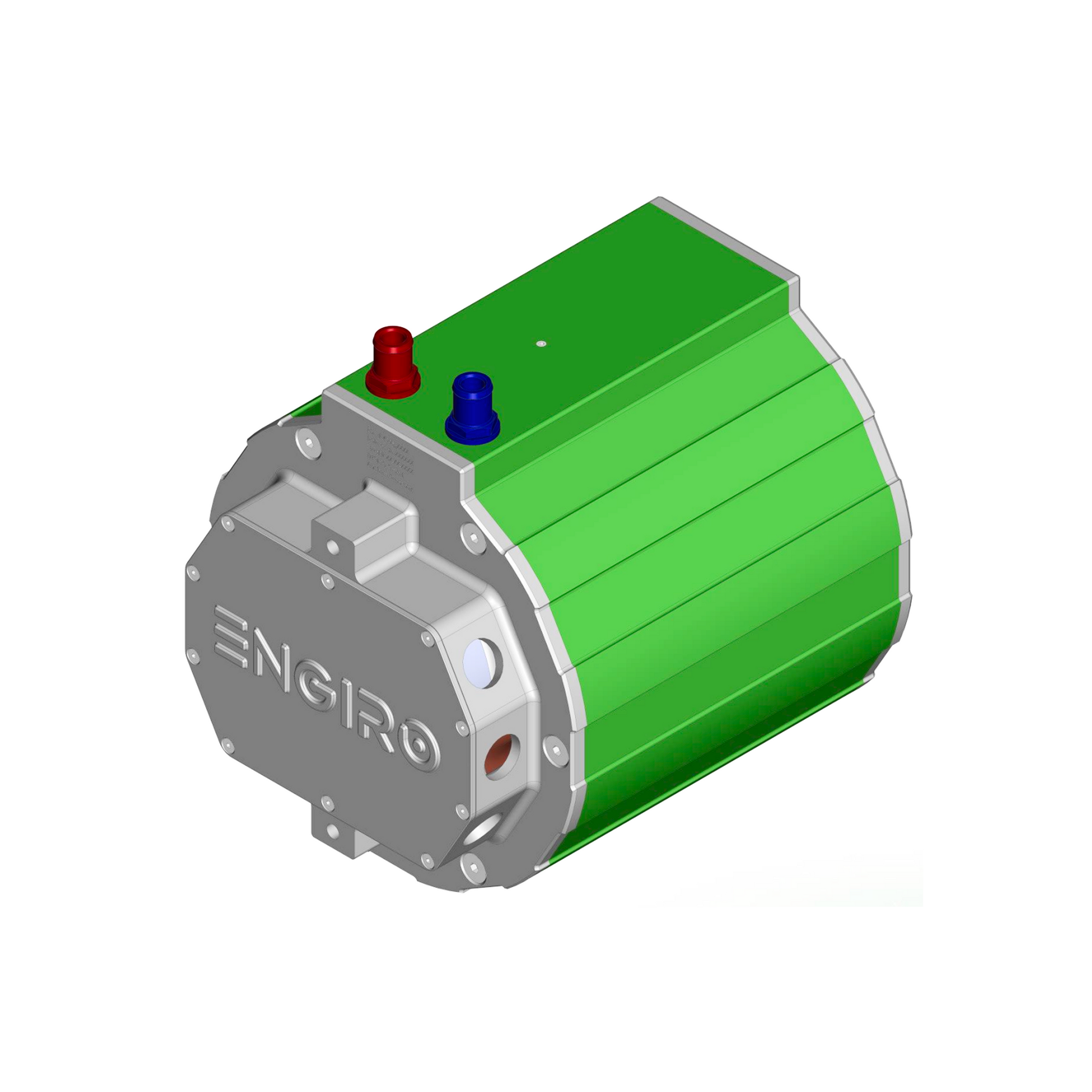

The 205W_08 family sits in the middle of Engiro’s water‑cooled 205W series. These motors are compact, efficient permanent‑magnet synchronous machines designed for 48–144 V systems and used in traction, generators, pumps, and industrial drives.

  • Water‑cooled PMSM design with high efficiency and compact size.
  • Continuous power around 12–23 kW depending on voltage (48 V vs 96 V).
  • Peak power up to 38 kW for the 08016 SSE variant.
  • Voltage range 48–144 V depending on controller pairing
  • Torque capability up to 81 Nm peak and strong low‑speed performance.
  • Weight ~36 kg — compact for its power class.
  • Protection level IP65 / IP69K for harsh environments.
  • Maximum efficiency ~96%
  • Suitable for traction, marine, and industrial drives where water cooling is available.

Specifications

Product Datasheet

 11T / Standard Keyway Shaft / Sin Cos20T / Standard Keyway Shaft / Sin Cos52T / Standard Keyway Shaft / 0.29 Gain Resolver43T / Standard Keyway Shaft / 0.29 Gain Resolver95T / Standard Keyway Shaft / 0.29 Gain Resolver
