Engiro 205W_12

Engiro 205W_12

8 in stock
205W_12 Turns
205W Interface
205 Encoder Type
Request Quote
Request Quote

Excluding VAT

Ask for lead time / quote

Motor Pairing Considerations

Most customers speak to us before purchasing to ensure compatibility with:

  • Load profile: Is the motor driving a constant load, variable load, or shock loads?
  • Duty cycle: Continuous vs intermittent use, peak vs average power demand.
  • Environment: Marine (corrosion, humidity), agriculture (dust, mud), motorsport (heat, vibration).
  • Power/torque curve (does the motor deliver the torque at the speed you need?).
  • Cooling requirements (air vs liquid cooled, ventilation needs).

Contact us for any questions on motor pairing!

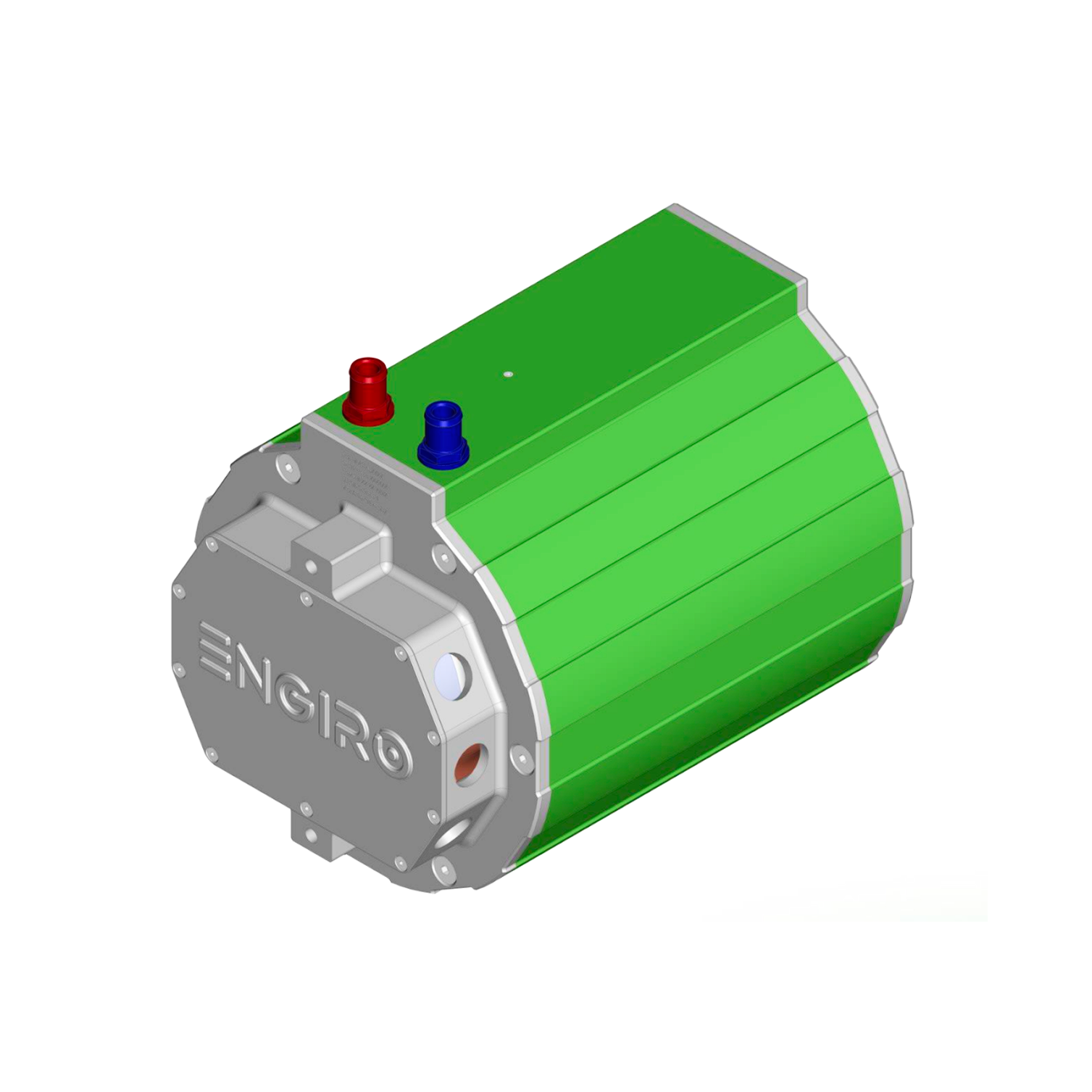

The 205W_12 family is part of Engiro’s water‑cooled 205W series, designed for compact traction, generator, and industrial applications where high power density, quiet operation, and high efficiency are required.

  • Water‑cooled PMSM design with high efficiency and compact size.
  • Continuous power up to 82 kW depending on voltage (400 V vs 700 V).
  • Peak power up to 170 kW for 10 s S2 operation.
  • Recommended voltage range 48–800 V depending on variant.
  • Multiple mechanical interfaces available (ABC, P‑ABC, etc.) with full drawings included in the datasheet.

The 205W range is a reliable, adaptable motor platform engineered to deliver consistent performance across demanding applications.

  • Engiro 205W Family – Variant Selector

    Start Identify voltage, cooling, and performance requirements.
    ↓
    System Voltage
    • 24–800 V → There will be one in the range that is suitable!
    Move to torque and duty cycle.
    ↓
    Torque Requirement
    • Low torque → 205W_04
    • Medium torque → 205W_08
    • High torque → 205W_12
    • Very high torque → 205W_16
    ↓
    Duty Cycle
    • Light / intermittent → 04 or 08
    • Medium / frequent → 08 or 12
    • Heavy / continuous → 12 or 16
    Water‑cooling allows sustained output across all variants.
    Feature 205W_04 205W_08 205W_12 205W_16
    Cooling Water‑cooled Water‑cooled Water‑cooled Water‑cooled
    Voltage Range 48–700 V 48–700 V 48–800 V 400-800 V
    Torque Level 34-94Nm 56-189Nm 120-298Nm 174-386Nm
    Controller Compatibility BorgWarner (Sevcon) / Curtis / DMC / Zapi BorgWarner (Sevcon) / Curtis / DMC / Zapi / NX BorgWarner (Sevcon) / Curtis / DMC / Zapi / NX BorgWarner (Sevcon) / NX


Specifications

Product Datasheet

 6T / Standard Keyway Shaft / Sin Cos202T / Standard Keyway Shaft / Sin Cos43T / Standard Keyway Shaft / 0.29 Gain Resolver

Dimensions

 -

Manual

 13T / Standard Keyway Shaft / Sin Cos (1)13T / Standard Keyway Shaft / Sin Cos (2)
