260W_25

260W_25

Out of stock
260W_25 Turns
260W Interface
260 Encoder Type
Request Quote
Request Quote

Excluding VAT

Ask for lead time / quote

Motor Pairing Considerations

Most customers speak to us before purchasing to ensure compatibility with:

  • Load profile: Is the motor driving a constant load, variable load, or shock loads?
  • Duty cycle: Continuous vs intermittent use, peak vs average power demand.
  • Environment: Marine (corrosion, humidity), agriculture (dust, mud), motorsport (heat, vibration).
  • Power/torque curve (does the motor deliver the torque at the speed you need?).
  • Cooling requirements (air vs liquid cooled, ventilation needs).

Contact us for any questions on motor pairing!

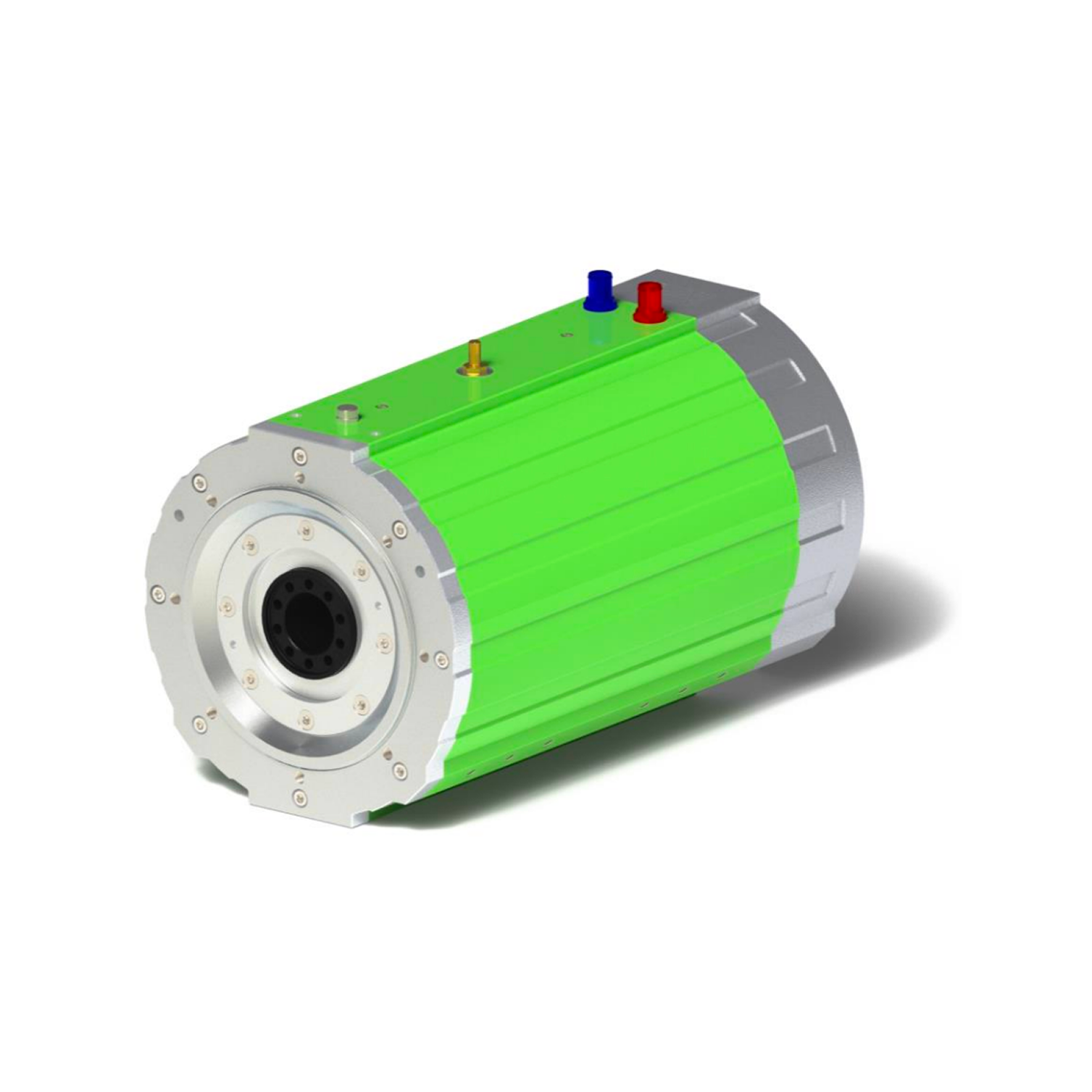

The Engiro 260W_25 series is a family of 148–265 kW water‑cooled PMSM motors offering extremely high torque, wide voltage compatibility (300–850 V), and multiple configuration options for EV, industrial, and marine applications.

These motors have a high power density, compact design, and multiple rear‑interface options (with the new S1 naming replacing D1).

Key Things You Can Say About the 260W_25 Range

  • Water‑cooled PMSM motors with very high continuous and peak power output.

  • Continuous power from 148 kW to 265 kW, depending on the model (e.g., 25202 vs 25011).

  • Peak power up to 314–320 kW, depending on variant (e.g., 25202 and 25018).

  • Recommended voltage ranges from 300 V to 850 V, depending on the specific model.

  • High torque output, with continuous torque up to ~686 Nm and peak torque exceeding 1300 Nm on some models.

  • Multiple shaft and flange configurations, with Engiro’s updated naming (D1 → S1) for rear‑interface options.

  • Delivery with matched controller available, making them OEM‑friendly for EV and industrial platforms.

  • Typical mass ~137 kg and length ~500 mm for the 25011/25018 variants.

  • Suitable for medium‑to‑heavy EVs, mobile machinery, hydraulic drives, and marine systems.


Some Models in the 260W_25 Family

Engiros are very versatile and customisable, here are some of the models/variants of the 260W_25 family.

Model Continuous Power Peak Power Voltage Range Notes
260W‑25011‑ABC‑P 265 kW Higher 350–850 V High‑power variant, updated naming scheme
260W‑25011‑ABC 219 kW Higher 500–750 V ~500 mm length, 137 kg mass
260W‑25202‑ABC 148 kW 314 kW 300–500 V 686 Nm continuous torque, 1357 Nm peak
260W‑25018‑ABC 187–295 kW 320 kW 400–750 V 1337 Nm peak torque

Engiro 260W Family – Variant Selector

Start Identify voltage, cooling, torque and duty cycle needs.
↓
System Voltage
  • 24–48 V → All 260W variants compatible
Move to torque and cooling requirements.
↓
Cooling Type
  • Air‑cooled → 260W_10, 260W_28 Range
  • Water‑cooled → 260W_08, 260W_15, 260W_20, 260W_25
↓
Torque Requirement
  • Low → 260W_08 / 260W_10
  • Medium → 260W_15 / 260W_20
  • High → 260W_25
  • Extended‑range efficiency → 260W_28 Range
↓
Duty Cycle
  • Light / intermittent → 08 / 10 / 28
  • Medium → 15 / 20
  • Heavy / continuous → 20 / 25
↓
Thermal Load
  • Low → 08 / 10 / 28
  • Moderate → 15 / 20
  • High → 25
↓
Space & Weight Constraints
  • Very compact → 08 / 10
  • Moderate space → 15 / 20
  • Space available → 25 for maximum performance
↓
Result 260W_08 → Compact, water‑cooled, light‑duty
260W_10 → Compact, air‑cooled, light‑duty
260W_15 → Medium torque, water‑cooled
260W_20 → High torque, continuous‑duty capable
260W_25 → Maximum torque, heavy‑duty
260W_28 Range → Air‑cooled, extended‑range efficiency
Feature 260W_08 260W_10 260W_15 260W_20 260W_25 260W_28 Range
Cooling Water‑cooled Air‑cooled Water‑cooled Water‑cooled Water‑cooled Air‑cooled
Voltage Range 24–48 V 24–48 V 24–48 V 24–48 V 24–48 V 24–48 V
Torque Level Low Low Medium High Very High Low–Medium (Efficiency‑optimised)
Duty Cycle Light / Intermittent Light / Intermittent Medium Heavy / Continuous Heavy / Continuous Light / Range‑focused
Thermal Headroom Low–Moderate Low Moderate High Very High Low
Recommended Use Compact EVs, robotics Light EVs, simple cooling Utility EVs, mid‑range Continuous‑duty EVs Heavy‑duty, high‑load EVs Range‑optimised mobility
Controller Compatibility Sevcon / SME / FOC Sevcon / SME / FOC Sevcon / SME / FOC Sevcon / SME / FOC Sevcon / SME / FOC Sevcon / SME / FOC

Specifications

Product Datasheet

 18T / Closed B Side / 0.29 Gain Resolver11T / Closed B Side / 0.29 Gain Resolver

Dimensions

 -

Manual

 -
