CHARX Three-Phase Type 2 Inlet

CHARX Three-Phase Type 2 Inlet

Lead time: 7 weeks
Charging Inlet Actuator Voltage
Charging Inlet Cable Length
Request Quote
Request Quote

Excluding VAT

Ask for lead time / quote

Motor Pairing Considerations

Most customers speak to us before purchasing to ensure compatibility with:

  • Load profile: Is the motor driving a constant load, variable load, or shock loads?
  • Duty cycle: Continuous vs intermittent use, peak vs average power demand.
  • Environment: Marine (corrosion, humidity), agriculture (dust, mud), motorsport (heat, vibration).
  • Power/torque curve (does the motor deliver the torque at the speed you need?).
  • Cooling requirements (air vs liquid cooled, ventilation needs).

Contact us for any questions on motor pairing!

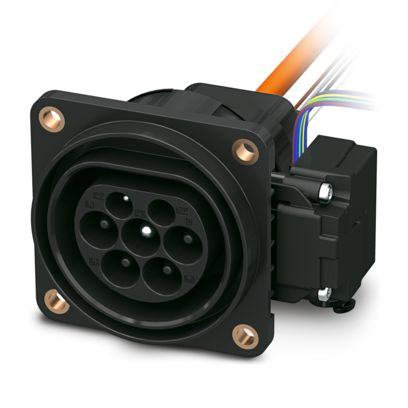

CHARX Vehicle charging inlet

The CHARX connect universal, AC type 2, Vehicle charging inlet from Phoenix Contact.

This is a high quality inlet, available in several versions and lengths. If you do not see what you need, please get in touch! If it exists, we can get you it.

12V actuator versions tend to be used on smaller vehicles, and have shorter cables.

24V actuator cables go up to 12m!

32 A , 480 V AC, Single wires.

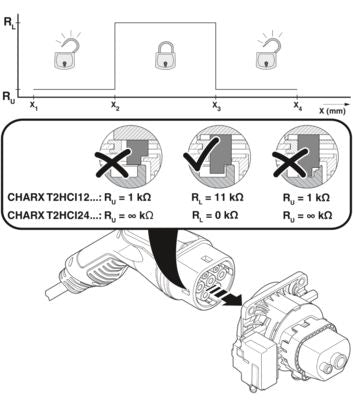

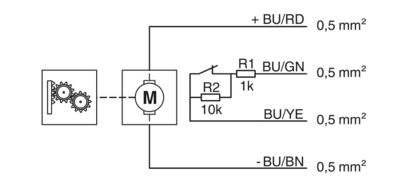

Locking Actuator in either 12V or 24V

4-pos., Front and rear mounting with M6 fixing size.

For charging electric vehicles (EV) with alternating current (AC), IEC 62196-2, A protective cap is supplied as standard for the AC contacts.

Specifications

Product Datasheet

 -

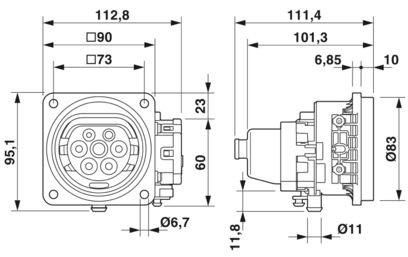

Dimensions

 -

Manual

 -
