CHARX T2HBIxx‑DC250 – DC CCS Type 2 Vehicle Charging Inlets

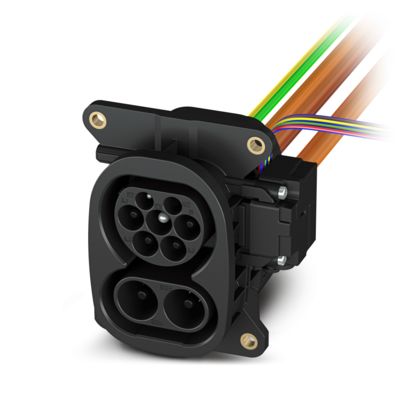

Upgrade your EV integration with the Phoenix Contact CHARX T2HBIxx‑DC250, a high‑performance DC CCS Type 2 vehicle charging inlet designed for reliable, high‑power DC fast‑charging. Part of the CHARX connect universal family, this inlet is engineered for durability, efficiency, and seamless compatibility with modern EV charging standards.

Key Features

  • DC CCS Type 2 compatibility for global fast‑charging interoperability.
  • High charging capacity with 250 A continuous and up to 500 A in Boost Mode, supporting high‑performance EV battery systems.
  • 1000 V DC rated voltage for powerful and efficient energy transfer.
  • Single‑wire construction, length variants from 2 to 15m detailed in table below.
  • 12 V or 24V locking actuator (4‑position) providing secure locking during charging, with manual emergency release for safety.
  • Front and rear mounting options, compatible with M6 hardware for flexible integration into vehicle body architecture.
  • High protection against dirt and water, featuring sealed construction and included protective cap for DC contacts.
  • Built according to IATF 16949 and ISO 9001 automotive quality standards for maximum reliability.

Electrical Specifications

  • Rated Voltage: 1000 V DC
  • Rated Current: 250 A DC (continuous), up to 500 A DC (Boost Mode; dependent on ambient conditions)
  • Charging Mode: Mode 4 (DC fast charging)

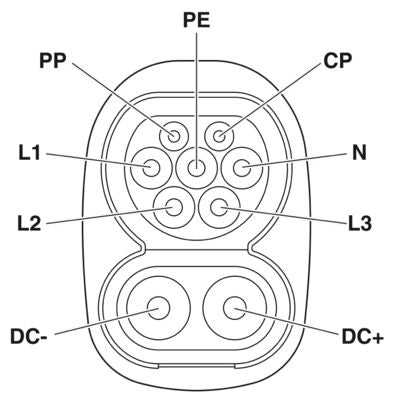

  • Signal Contacts: CP & PP with PWM + PLC communication per ISO/IEC 15118 / DIN SPEC 70121
  • Insulation Resistance: > 200 MΩ

Mechanical Details

  • Mounting: Front & rear (M6)
  • Housing: Robust black automotive‑grade material
  • Insertion Life: > 10,000 cycles for long‑term durability
  • Operating Temperature: –40 °C to +? (Based on DC200 series range, typically –40 °C… depending on variant)

Applications

  • Electric vehicle onboard charging ports
  • High‑power DC fast‑charging integration
  • OEM EV manufacturing & retrofit builds
  • Prototyping of CCS‑enabled electric platforms

Included

  • Protective cap for DC contacts (standard)



 Part Name
Part Number
Length
Actuator Voltage
CHARX T2HBI12-DC250-2,0M2 1211222 2m 12V
CHARX T2HBI12-DC250-3,0M2 1319004 3m 12V
CHARX T2HBI12-DC250-5,0M2 1349577 5m 12V
CHARX T2HBI12-DC250-8,0M2 1356142 8m 12V
CHARX T2HBI24-DC250-2,0M2 1211220 2m 24V
CHARX T2HBI24-DC250-4,0M2 1303648 4m 24V
CHARX T2HBI24-DC250-6,0M2 1396601 6m 24V
CHARX T2HBI24-DC250-8,0M2 1388731 8m 24V



Specifications

Product Datasheet

 12V / 2m12V / 3m12V / 5m12V / 8m24V / 2m24V / 4m24V / 6m24V / 8m

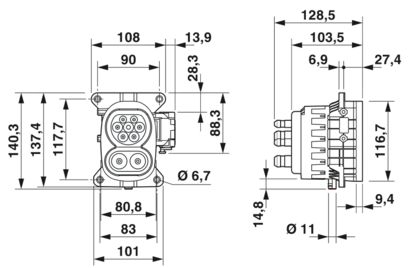

Dimensions

 -

Manual

 -
