Borgwarner HVLP Motor Controller

Borgwarner HVLP Motor Controller

23 in stock
HVLP Cooling
HVLP Build
£950.00
£950.00 £1,410.00

Excluding VAT

Motor Pairing Considerations

Most customers speak to us before purchasing to ensure compatibility with:

  • Load profile: Is the motor driving a constant load, variable load, or shock loads?
  • Duty cycle: Continuous vs intermittent use, peak vs average power demand.
  • Environment: Marine (corrosion, humidity), agriculture (dust, mud), motorsport (heat, vibration).
  • Power/torque curve (does the motor deliver the torque at the speed you need?).
  • Cooling requirements (air vs liquid cooled, ventilation needs).

Contact us for any questions on motor pairing!

Up to 33% off

High Voltage Low Power Inverter (HVLP) for Electric and Hybrid Vehicles

By far one of the most reliable, best selling controllers from the Sevcon range (now BorgWarner) - High Voltage Low Power (HVLP) Inverters are designed to drive vehicle auxiliaries, with the most popular choice for air-conditioning, compressors, fans and pumps control.

HVLP has a wide operating DC supply voltage range (200 V-800 V) and is typically used in systems rated between 5 kW and 20 kW.

Compatible with both Induction and PM Synchronous motors, sensor-less in many cases.
Supporting CAN and J1939 protocols, the HVLP may be set up to run standalone
or as a slave with commanded torque/speed over CANbus.

The HVLP has seen some design updates over the years, and there are 4 variants in production today:

  • Alpha build variant - older, but maintained as an option for system pin compatibility.
  • Beta build variant - the updated design with revised logic pinout.

All HVLP share a great feature set:

  • Operating voltage range 200 VDC-800 VDC
  • CAN Interface with CanOpen for calibration, and J1939 type control
  • Built in over-current, over-temperature protection
  • EMC to UNECE R10
  • Sensorless or position feedback with 0.25 to 0.6 gain resolvers, sin/cos encoders, or hall sensors.

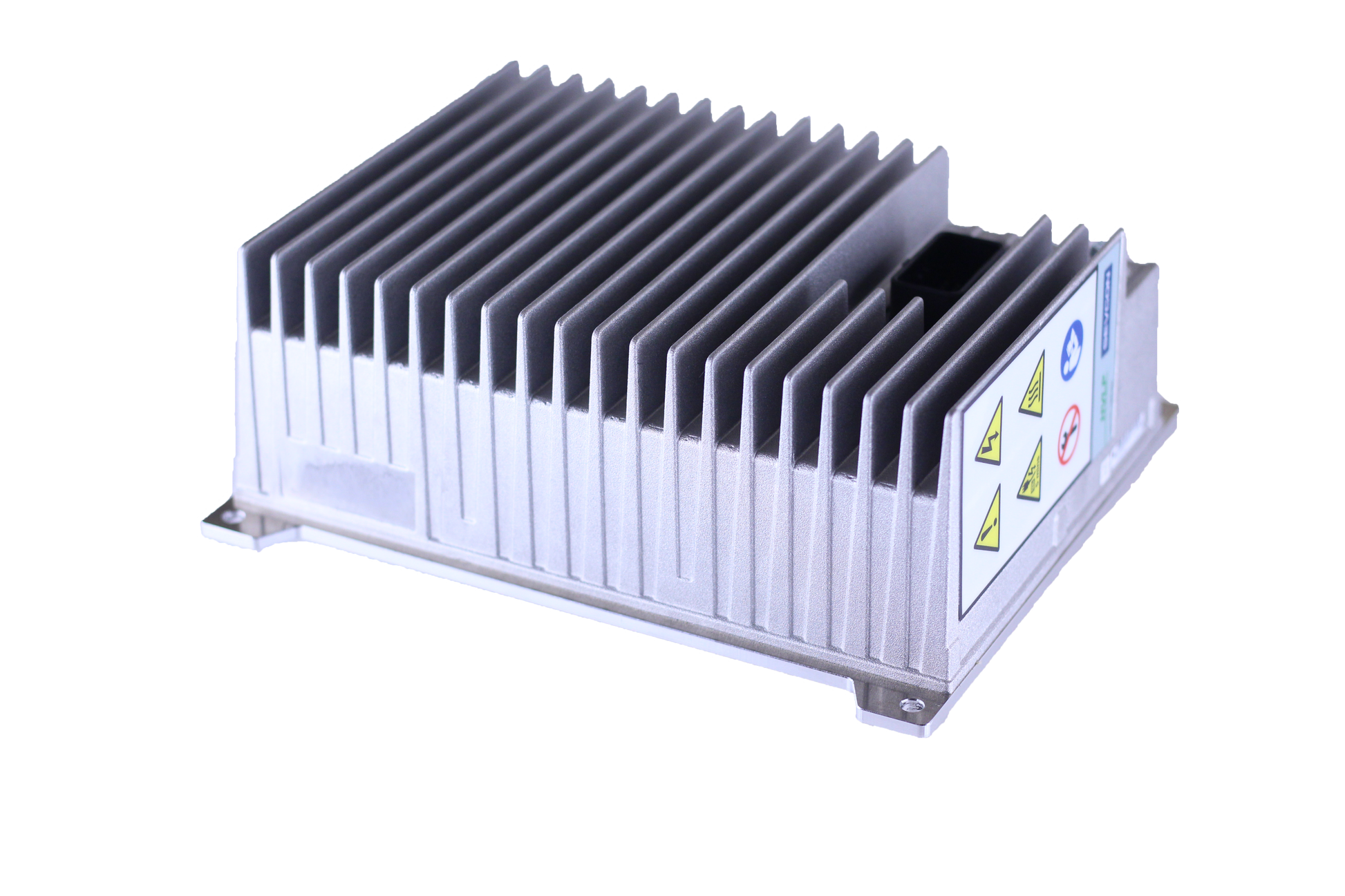

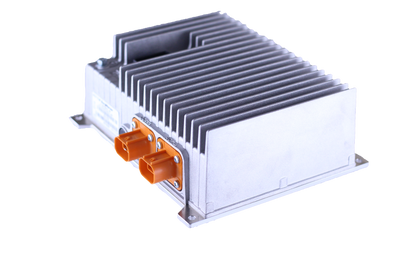

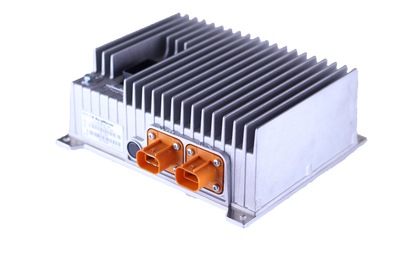

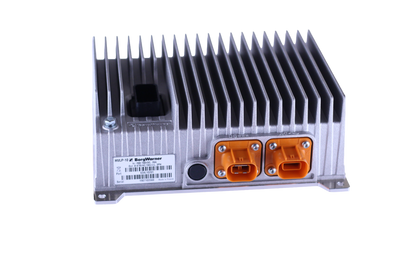

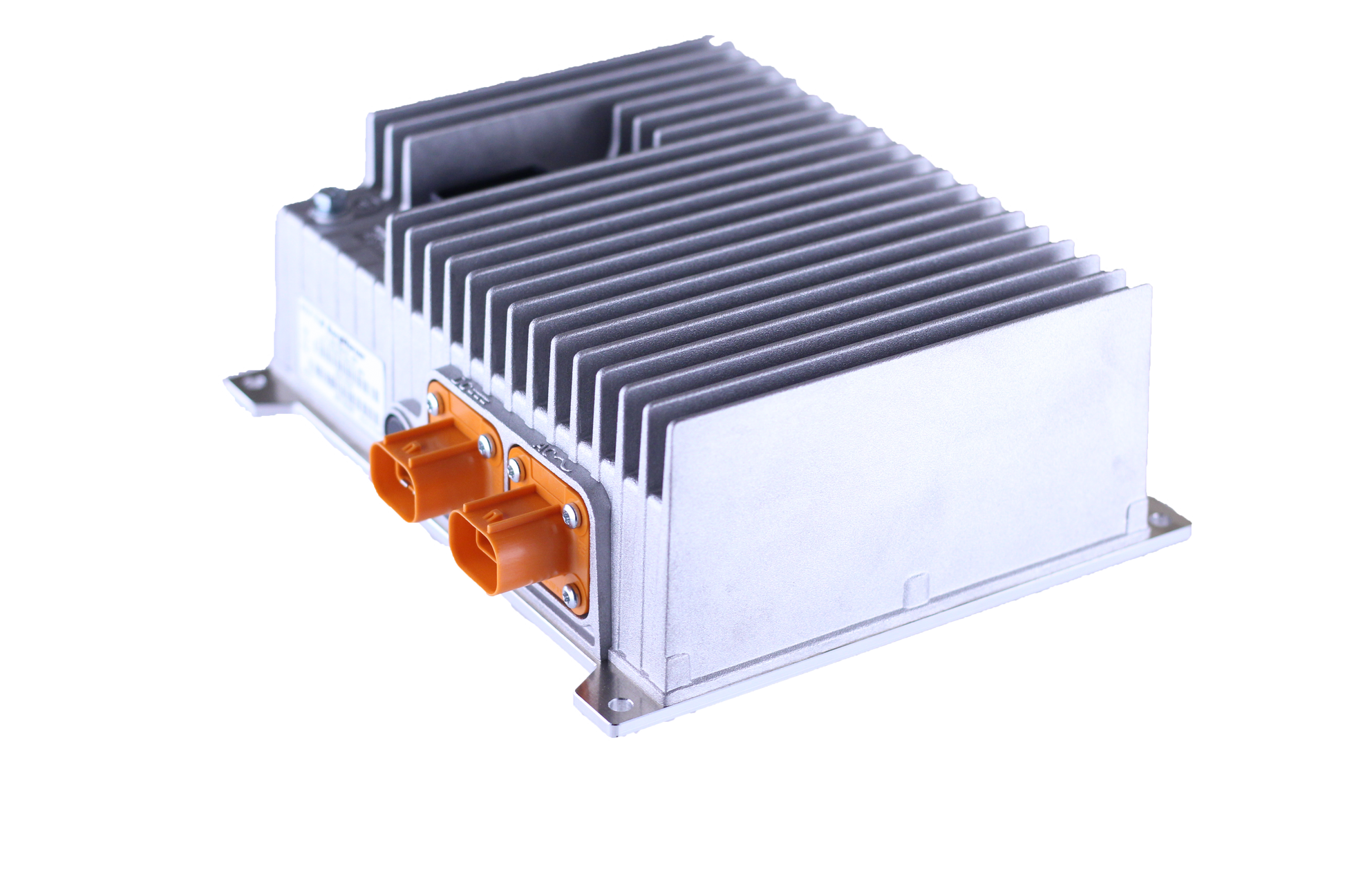

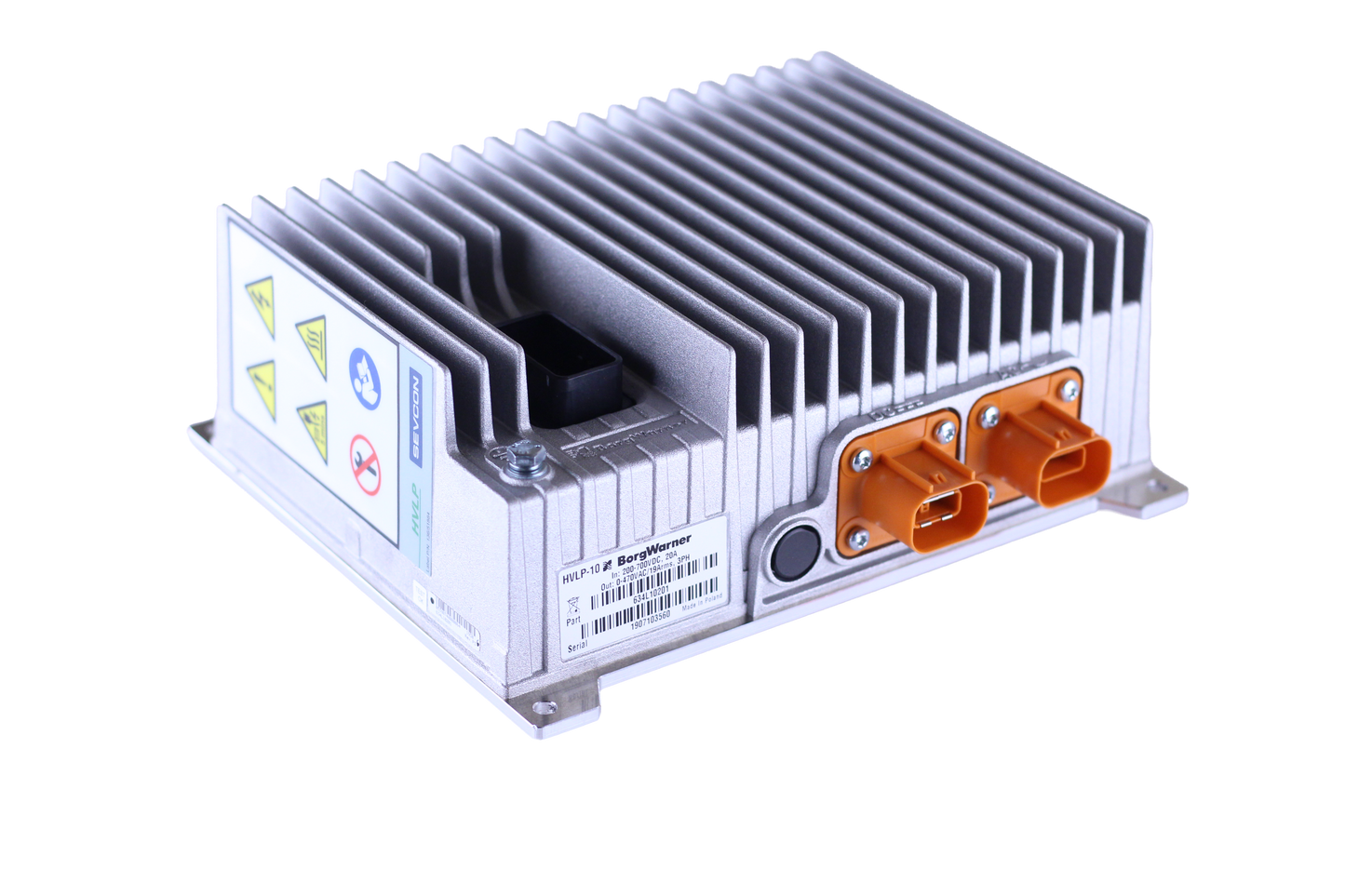

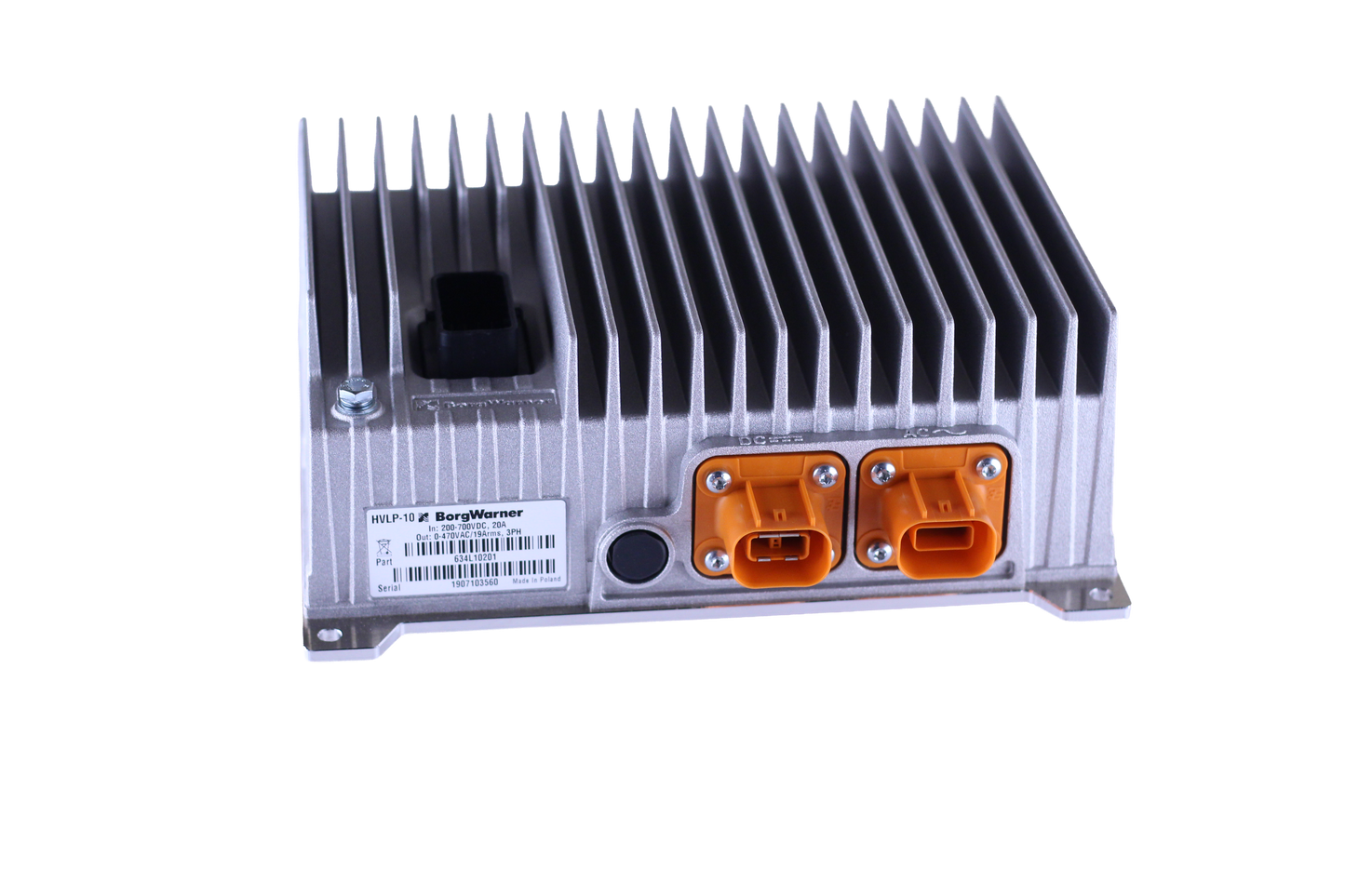

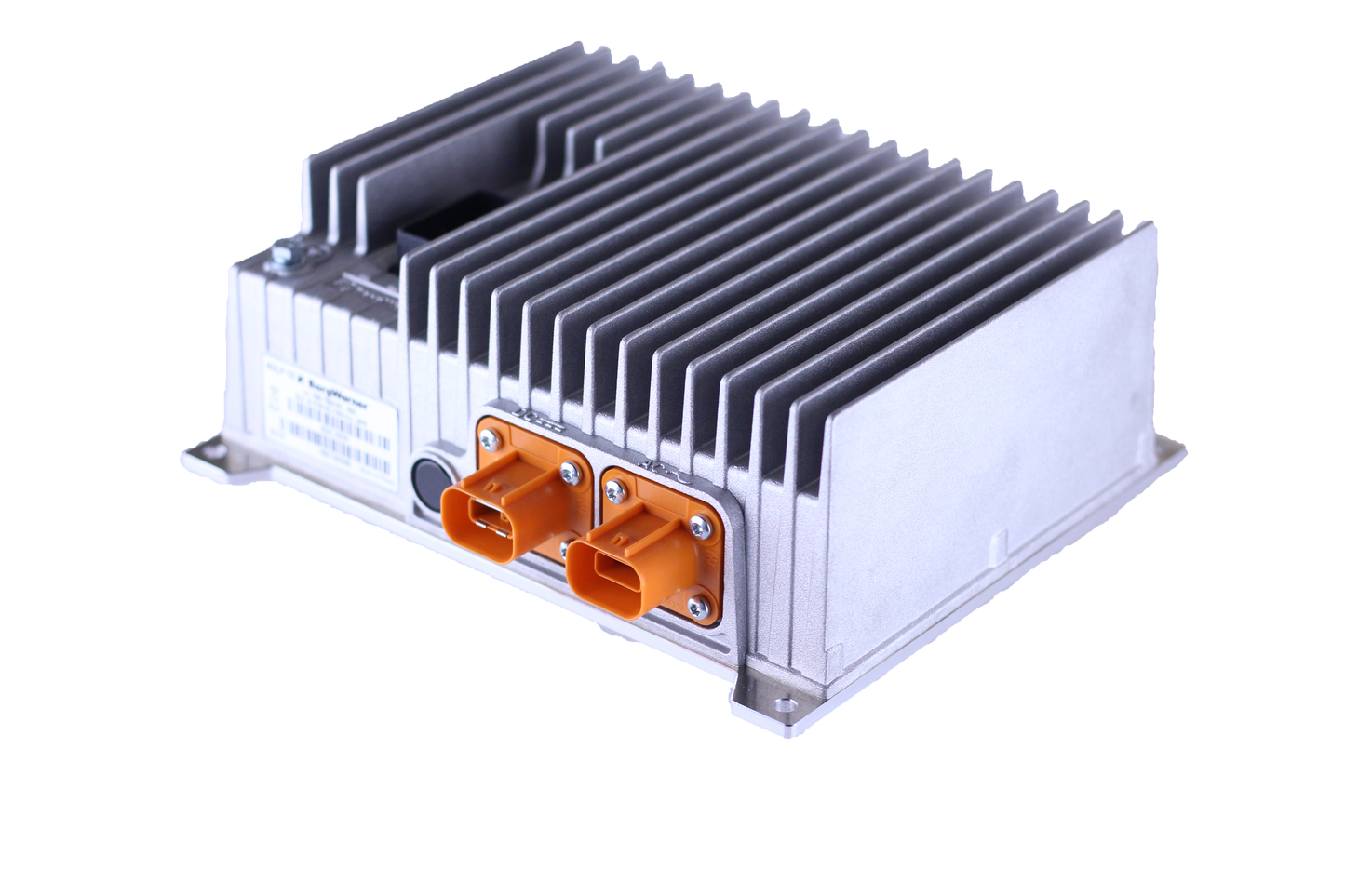

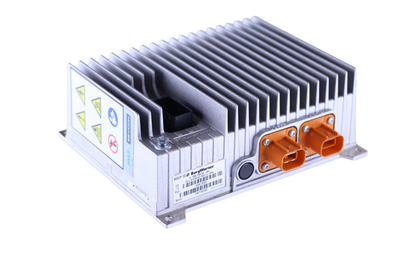

Air Cooled HVLP-10

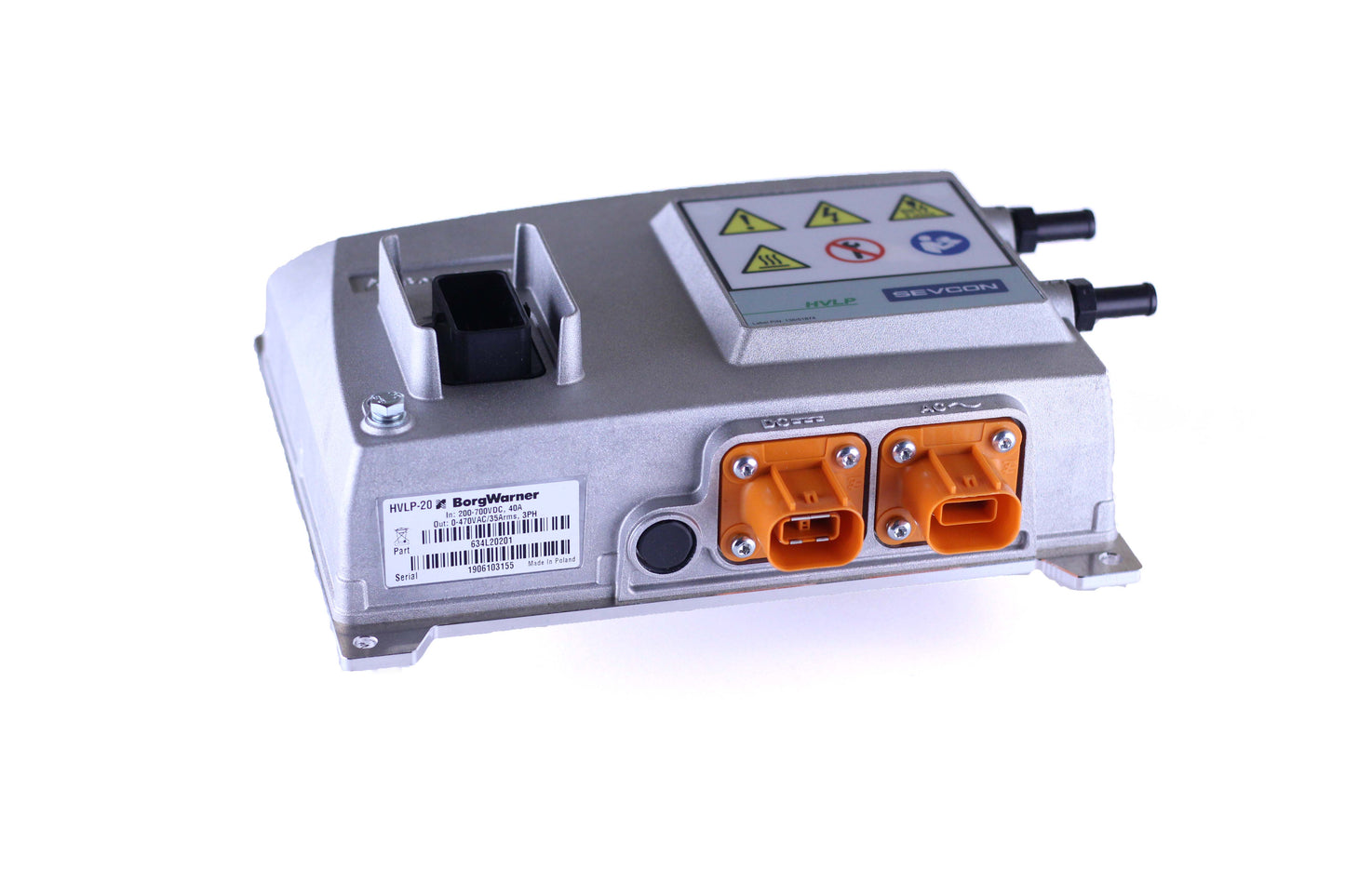

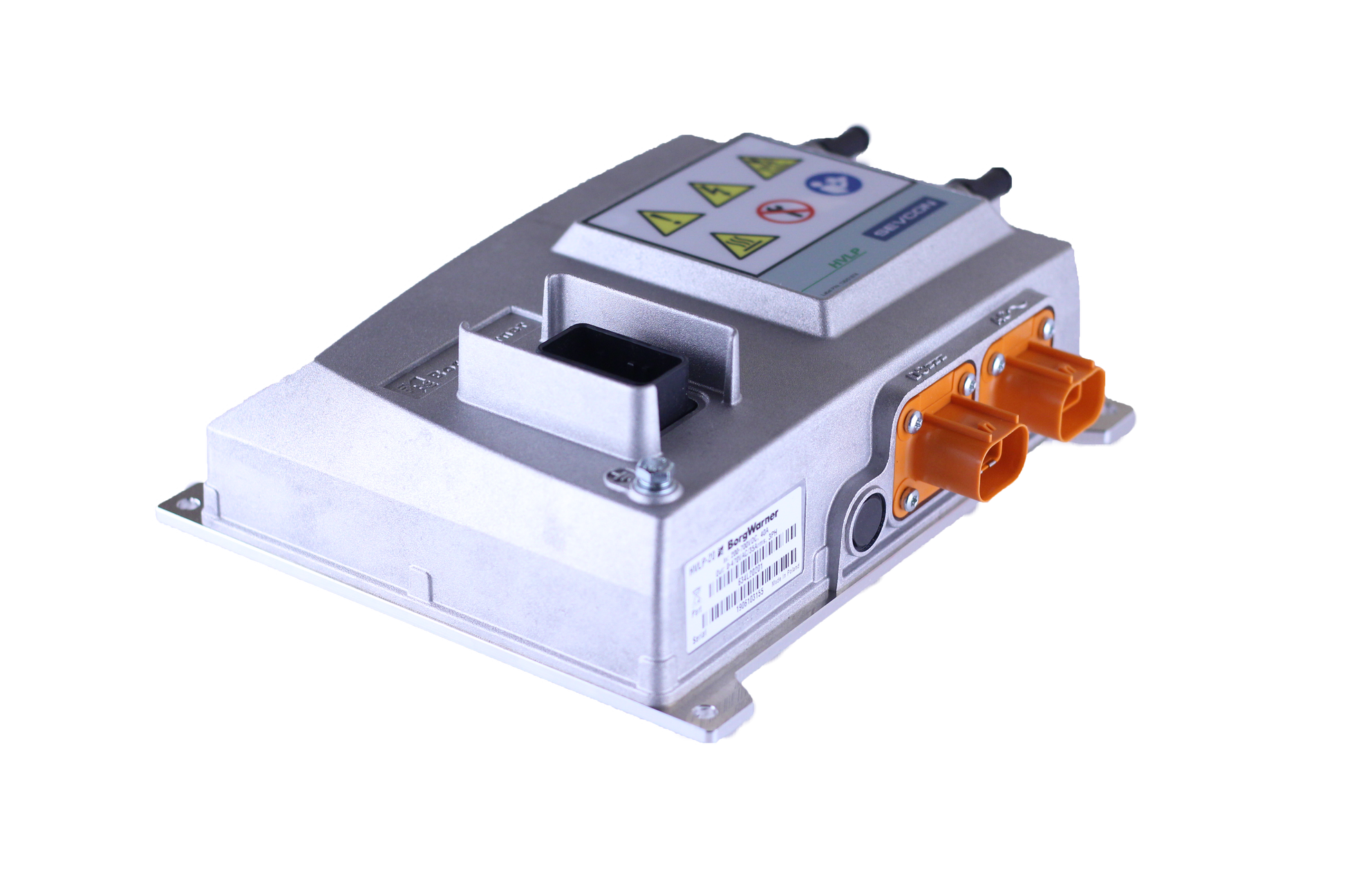

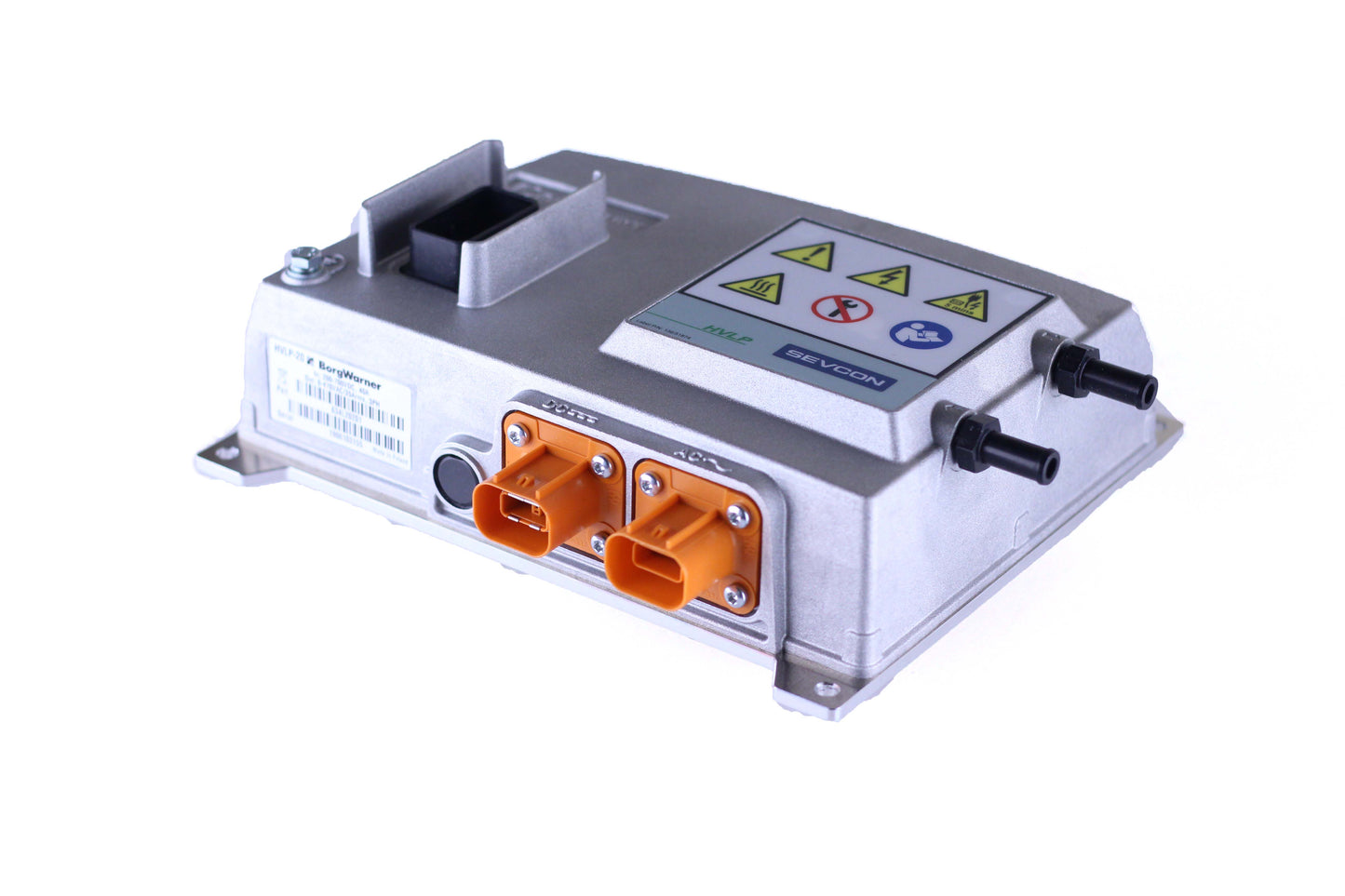

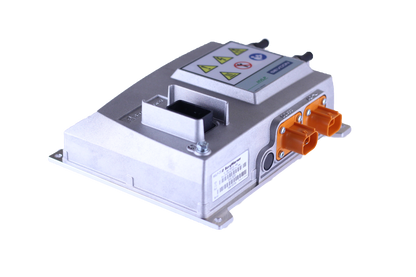

 Liquid Cooled HVLP-20
  • Air Cooled
  • 10kW Continuous power
  • Dimensions: 255mm x 223mm x 95mm
  • Weight: 3.7kg
  • IP6K9K, IP67 enclosure
  • Liquid Cooled
  • 20 kW Continuous power
  • Dimensions: 255mm x 223mm x 88mm
  • Weight: 2.3 kg
  • IP6K9K, IP67 enclosure



Specifications

Product Datasheet

 Datasheet

Dimensions

 -

Manual

 -
