CHARX T2HBI-Flap-Essential

    CHARX T2HBI-Flap-Essential

    1 in stock
    Request Quote
    Request Quote

    Excluding VAT

    Ask for lead time / quote

    Motor Pairing Considerations

    Most customers speak to us before purchasing to ensure compatibility with:

    • Load profile: Is the motor driving a constant load, variable load, or shock loads?
    • Duty cycle: Continuous vs intermittent use, peak vs average power demand.
    • Environment: Marine (corrosion, humidity), agriculture (dust, mud), motorsport (heat, vibration).
    • Power/torque curve (does the motor deliver the torque at the speed you need?).
    • Cooling requirements (air vs liquid cooled, ventilation needs).

    Contact us for any questions on motor pairing!

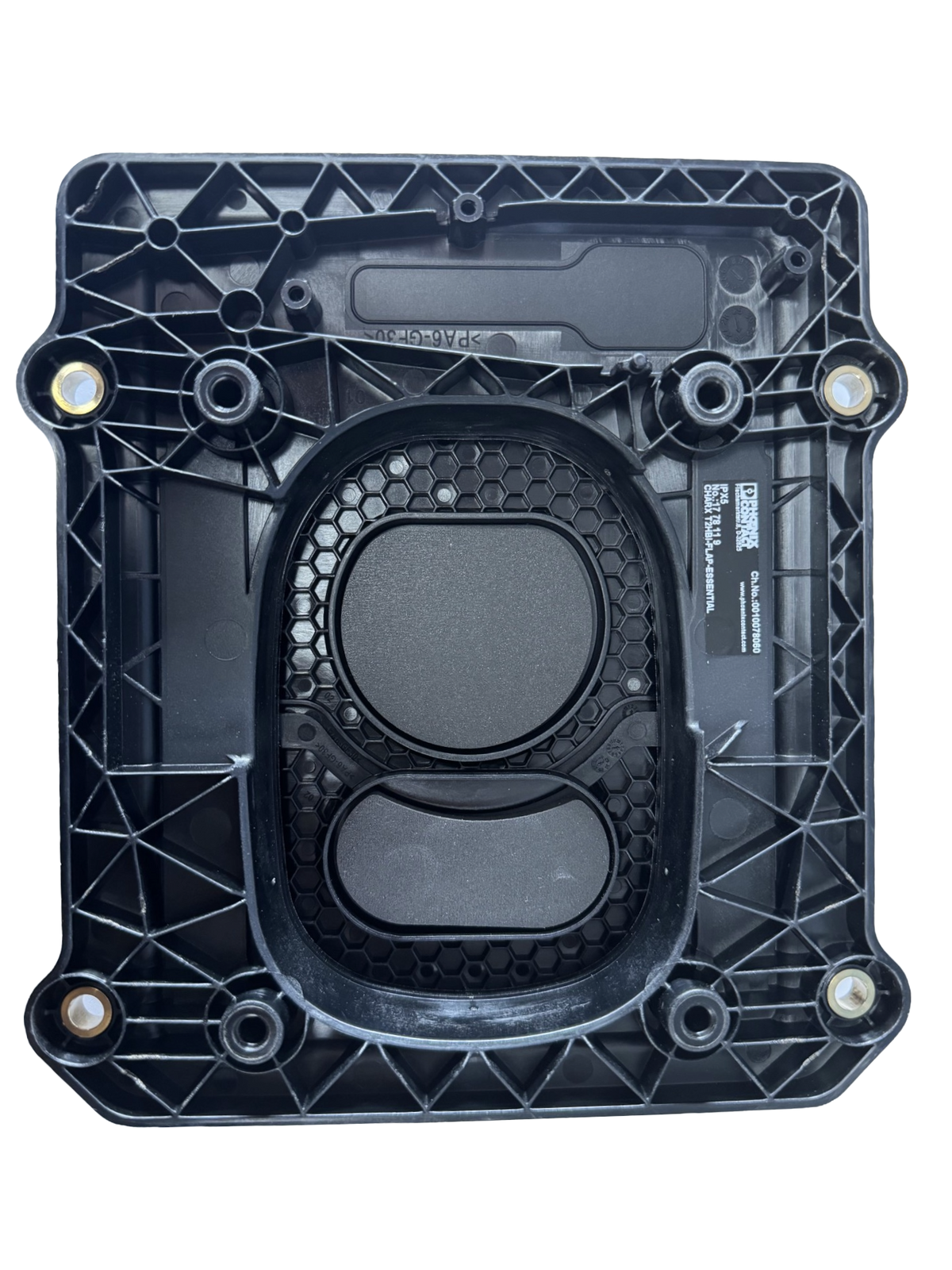

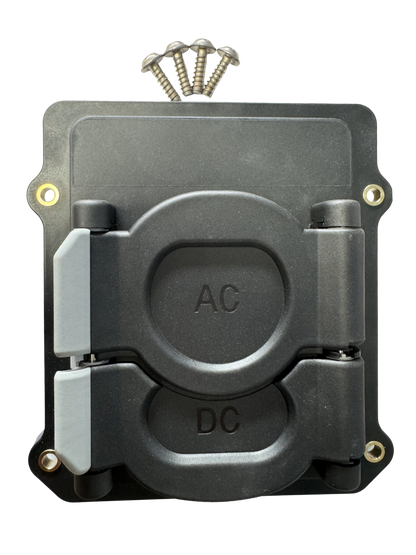

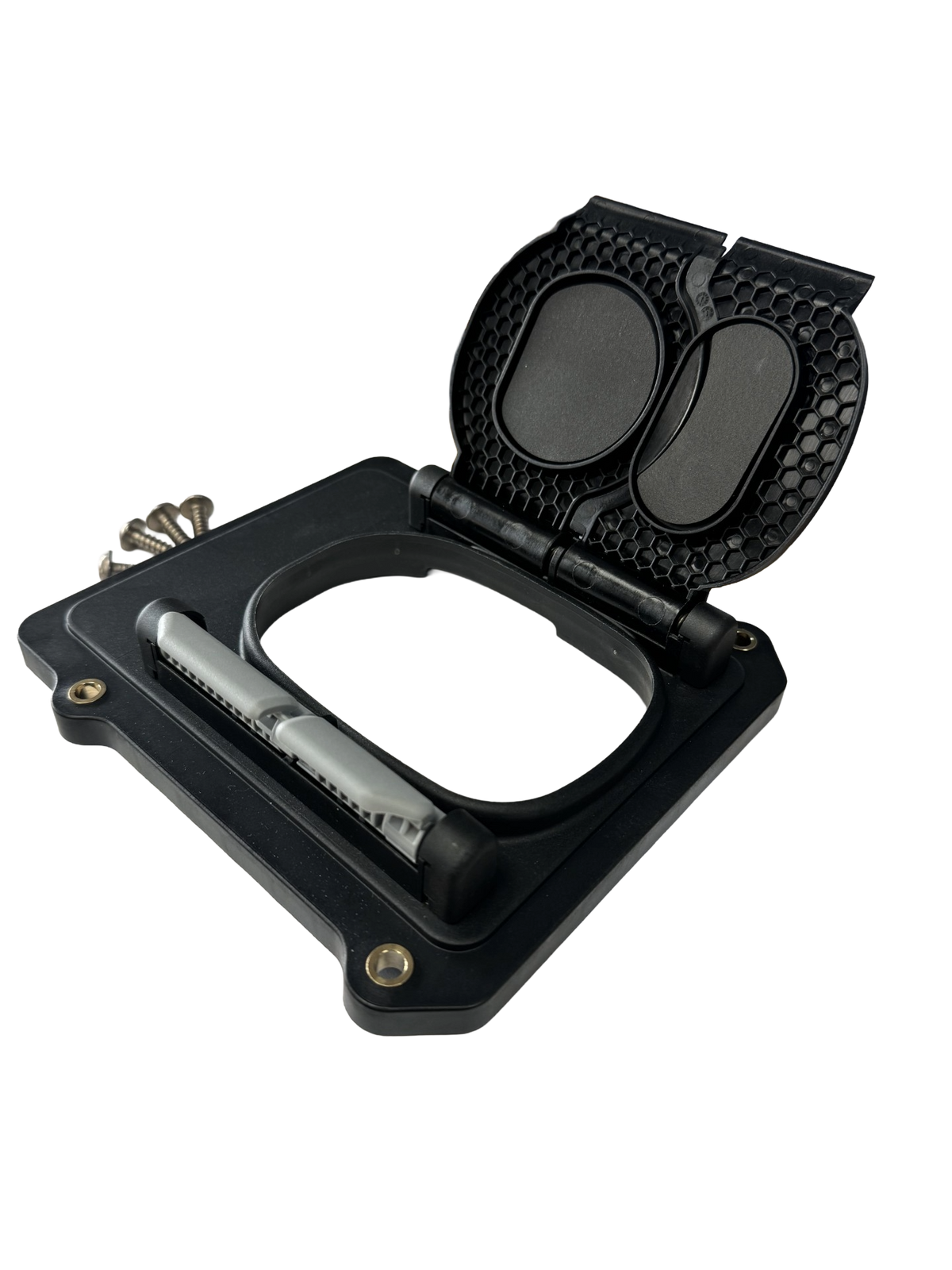

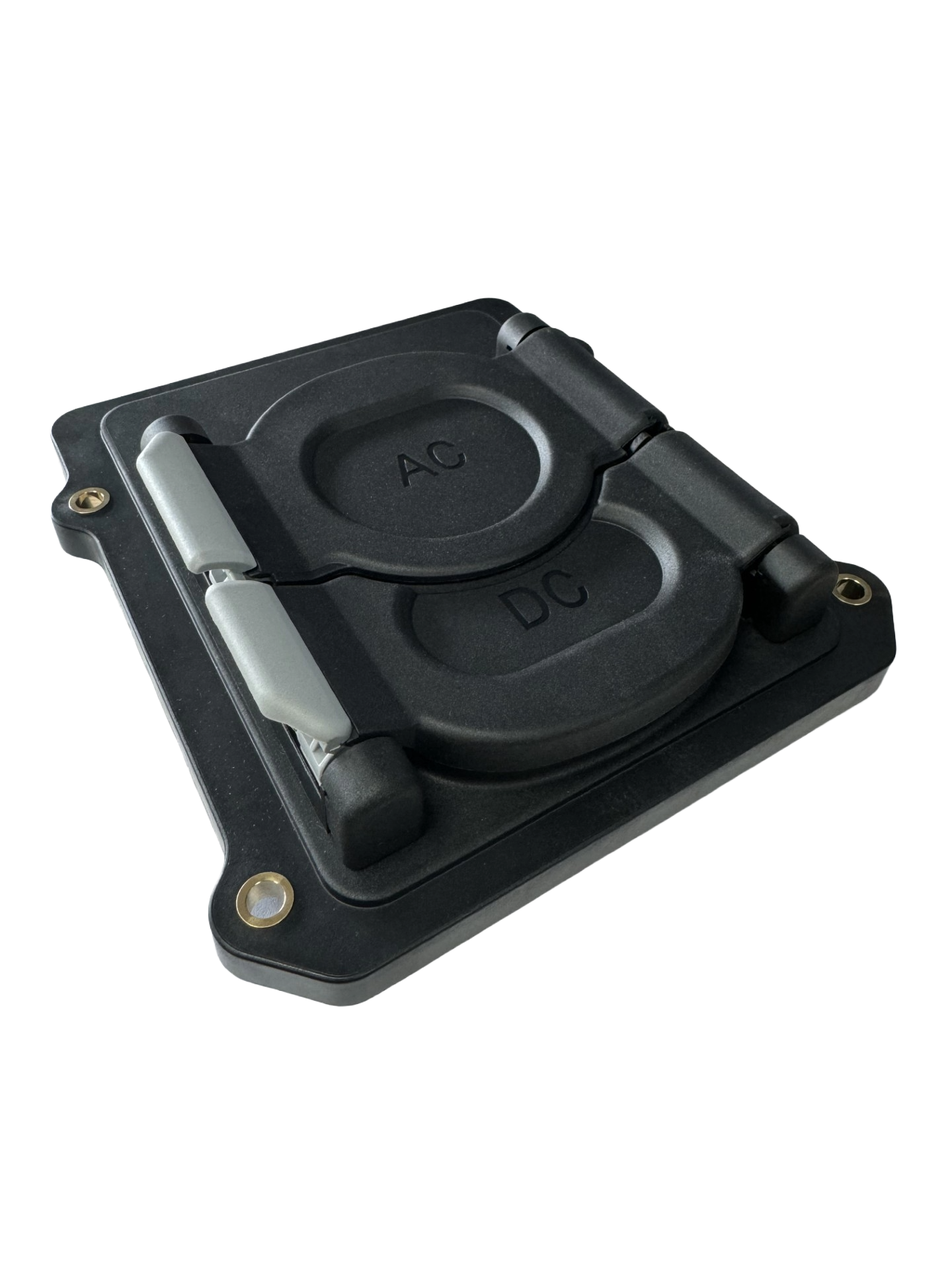

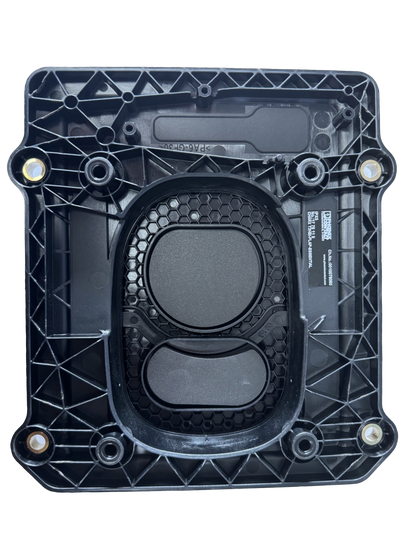

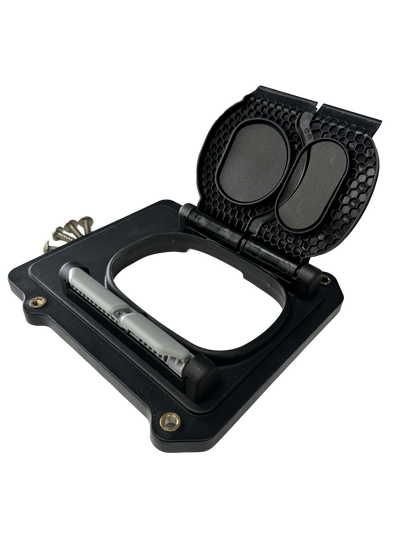

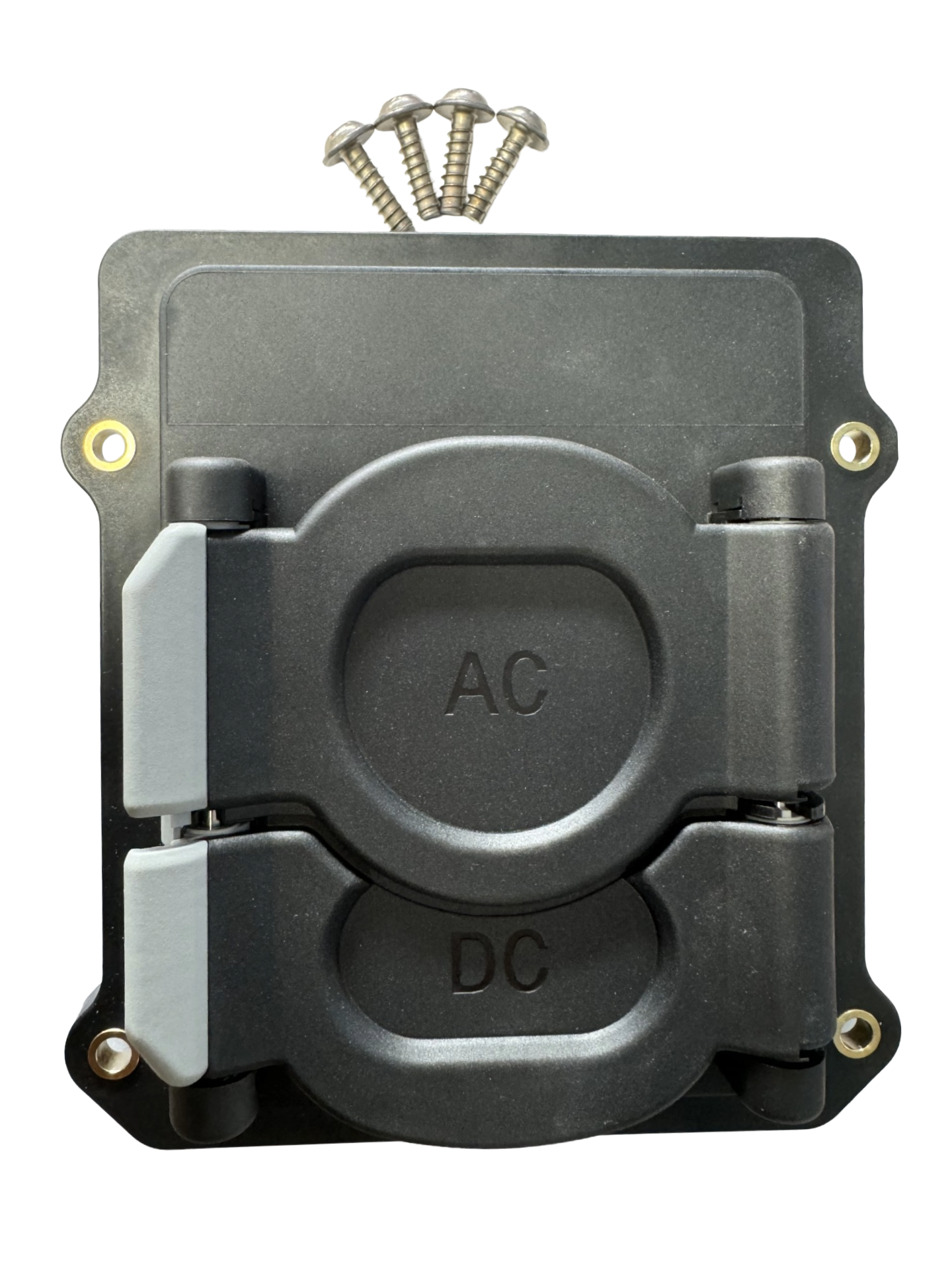

    Phoenix Contact CHARX T2HBI‑Flap‑Essential (1778119) A high‑durability protective cover engineered for CCS Type 2 vehicle charging inlets. This flap provides reliable protection for all signal and power contacts, ensuring long service life even in harsh outdoor environments.

    • IPX5 jet‑water protection when closed — ideal for EVs exposed to weather
    • Self‑opening mechanism: opening the DC cover automatically opens the AC cover for smooth operation
    • Compatible with all Phoenix Contact CHARX CCS Type 2 inlets
    • Square mounting design with M6/M7 screw geometry for easy integration
    • -40°C to +85°C operating range for all‑climate reliability
    • Optional add‑ons: cancel‑charging button and RGB LED status indicator
    • Automotive‑grade construction meeting UNECE R61 standards

    Perfect for EV builders, conversion projects, and OEM applications needing a robust, weather‑resistant inlet cover.

    • Product type: Protective cover
    • Family: CHARX connect universal
    • Compatibility: CCS Type 2 vehicle charging inlets
    • Dimensions: 170.7 × 184.4 × 41 mm
    • Material: Black plastic (RAL 9005)
    • Protection: IPX5 (closed)
    • Ambient temperature: –40°C to +85°C

    Specifications

    Product Datasheet

    		 -

    Dimensions

    		 -

    Manual

    		 -

    Manufacturer Part Number

    		 1778119 (selected)
