Curtis F2-A Motor Controller

Curtis F2-A Motor Controller

12 in stock
F2 Nominal Voltage
F2 Max Current
Can Termination
Request Quote
Request Quote

Excluding VAT

Ask for lead time / quote

Motor Pairing Considerations

Most customers speak to us before purchasing to ensure compatibility with:

  • Load profile: Is the motor driving a constant load, variable load, or shock loads?
  • Duty cycle: Continuous vs intermittent use, peak vs average power demand.
  • Environment: Marine (corrosion, humidity), agriculture (dust, mud), motorsport (heat, vibration).
  • Power/torque curve (does the motor deliver the torque at the speed you need?).
  • Cooling requirements (air vs liquid cooled, ventilation needs).

Contact us for any questions on motor pairing!

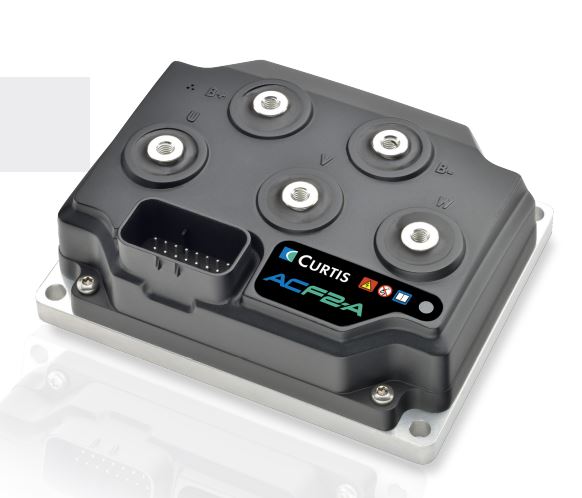

The Curtis Model AC F2-A Motor Controller provides accurate speed and torque control of 3-phase AC induction, PMAC and BLDC motors. Model AC F2-A is optimized for use as a traction controller on 1.0 ton-2.0 ton Class III pedestrian-operated powered pallet trucks.

The controller is also suitable for traction or hydraulic pump control on other types of battery powered vehicles. Vehicle designers can define and control the dynamic performance of vehicles’ drivetrains. Model AC F2-A is also a powerful system controller that can operate as a commander device on the CANbus.

Disclaimer: Please note we do not sell the Curtis fuses (pictured)

Specifications

Product Datasheet

 Datasheet

Dimensions

 -

Manual

 -

Manufacturer Part Number

 F2_A-48-150-001 (selected), F2_A-48-150-051 (selected), F2_A-48-240-001 (selected), F2_A-48-240-051 (selected), F2_A-24-120-001 (selected), F2_A-24-120-051 (selected), F2_A-24-280-001 (selected), F2_A-24-280-051 (selected), F2_A-24-200-001 (selected), F2_A-24-200-051 (selected), F2_A-24-240-001 (selected), F2_A-24-240-051 (selected), F2_A-12-120-001 (selected), F2_A-12-120-051 (selected)
