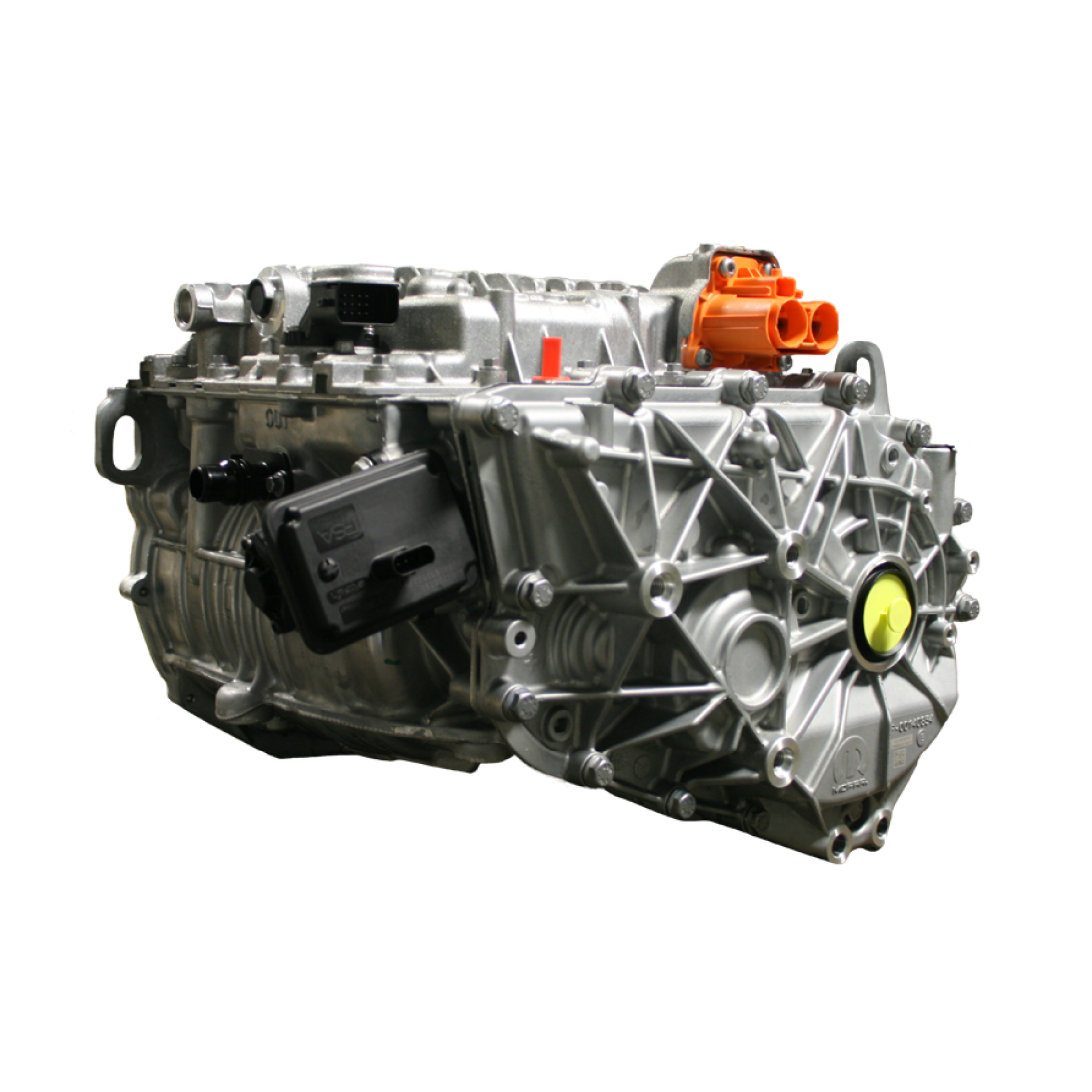

EFM2 400V 80kW 3in1 Drive Module

EFM2 400V 80kW 3in1 Drive Module

Out of stock
Request Quote
Request Quote

Excluding VAT

Ask for lead time / quote

Motor Pairing Considerations

Most customers speak to us before purchasing to ensure compatibility with:

  • Load profile: Is the motor driving a constant load, variable load, or shock loads?
  • Duty cycle: Continuous vs intermittent use, peak vs average power demand.
  • Environment: Marine (corrosion, humidity), agriculture (dust, mud), motorsport (heat, vibration).
  • Power/torque curve (does the motor deliver the torque at the speed you need?).
  • Cooling requirements (air vs liquid cooled, ventilation needs).

Contact us for any questions on motor pairing!

Compact Power for Electric Mobility

The EFM2 Electric Drive Unit from Voltsport X Electrofit delivers exceptional performance in a lightweight, integrated design. Ideal for EV conversions and OEM applications where space and efficiency matter.

Key Features

3-in-1 Integration: Motor, inverter, and gearbox combined for streamlined installation.
Performance Specs:

  • Peak Torque: 125 Nm
  • Continuous Torque: 60 Nm
  • Peak Power: 83 kW (10s)
  • Continuous Power: 35 kW

Compact & Lightweight:

  • Weight: 49 kg
  • Stator Diameter: 150 mm

High-Speed Capability:

  • Max Speed: >17,500 RPM
  • Nominal Voltage: 400 Vdc
  • Cooling System: Water/Glycol for optimal thermal management.
  • Transmission Ratio: Integrated Bolt-on (Stellantis product).

Why Choose EFM2?

  • Space-Saving Design: Perfect for smaller EV platforms.
  • Reliable & Efficient: Engineered for durability and high performance.
  • Lightweight Advantage: Reduces overall vehicle weight for better range.

Specifications

Product Datasheet

 Datasheet

Dimensions

 -

Manual

 -
