Engiro 205A_12

Engiro 205A_12

1 in stock
205A_12 Turns
205W Interface
205 Encoder Type
Request Quote
Request Quote

Excluding VAT

Ask for lead time / quote

Motor Pairing Considerations

Most customers speak to us before purchasing to ensure compatibility with:

  • Load profile: Is the motor driving a constant load, variable load, or shock loads?
  • Duty cycle: Continuous vs intermittent use, peak vs average power demand.
  • Environment: Marine (corrosion, humidity), agriculture (dust, mud), motorsport (heat, vibration).
  • Power/torque curve (does the motor deliver the torque at the speed you need?).
  • Cooling requirements (air vs liquid cooled, ventilation needs).

Contact us for any questions on motor pairing!

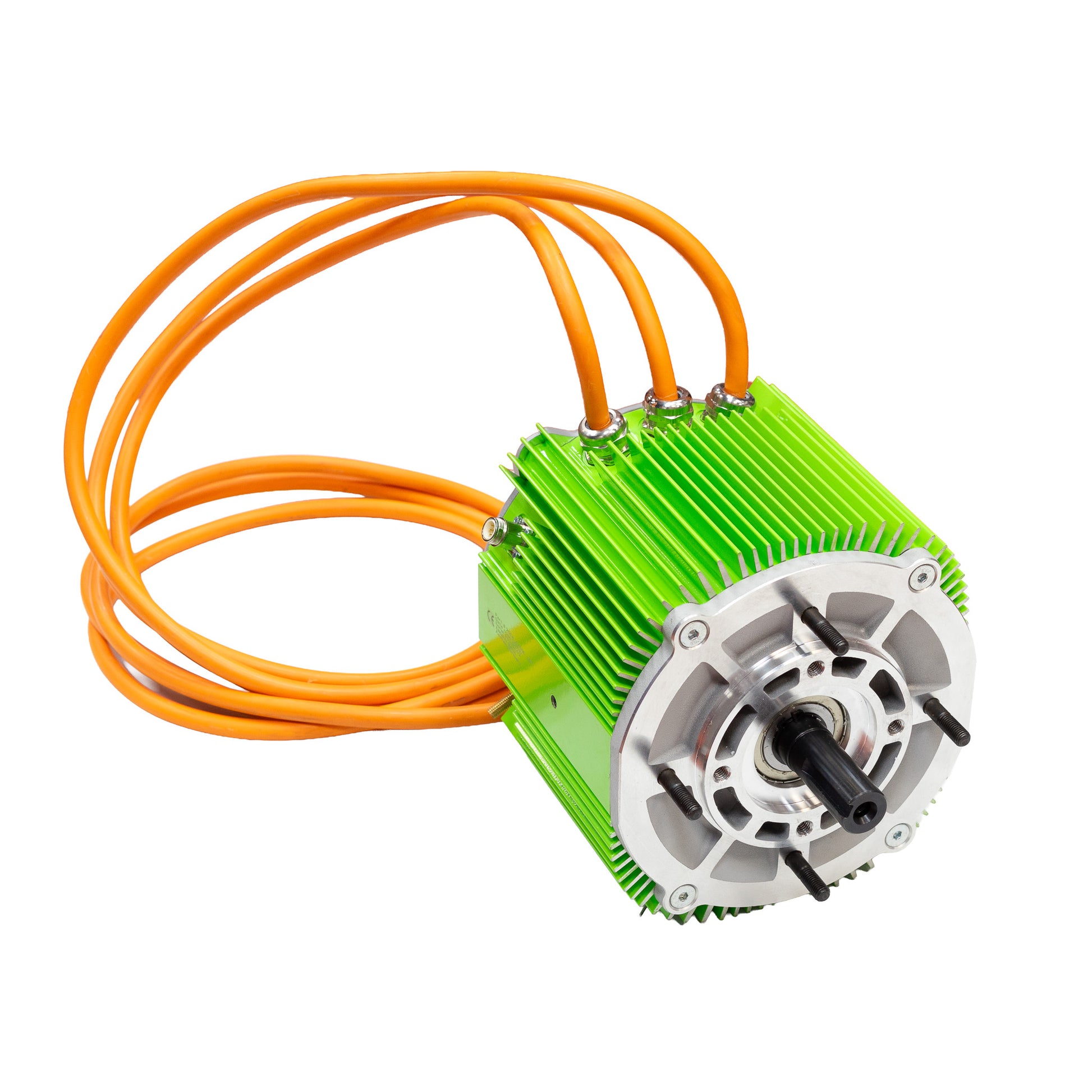

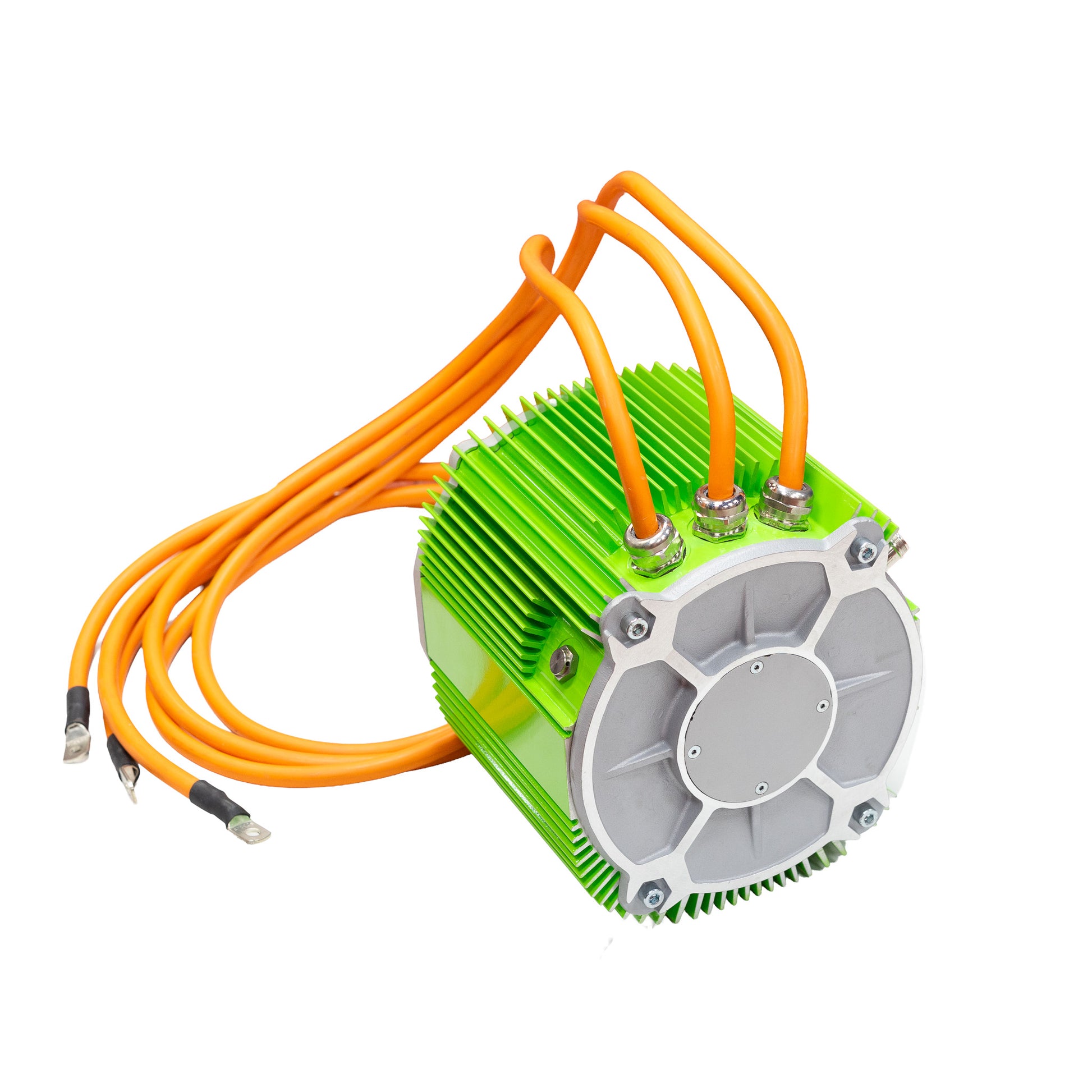

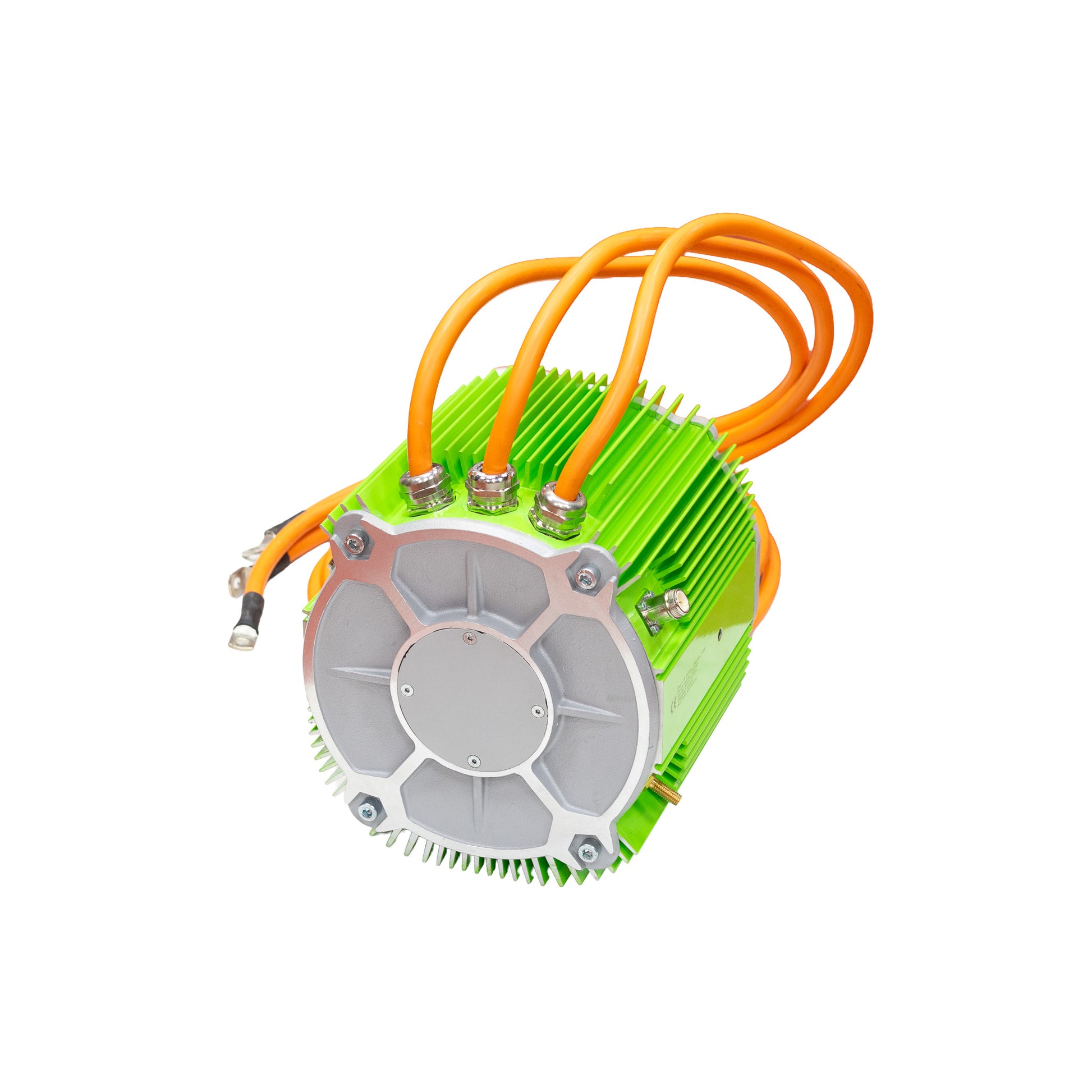

The Engiro 205A_12 motors belong to the 205A air‑cooled PMSM family, which covers compact, low‑voltage (48–140 V) traction and generator machines. The HYDAC listing gives us the clearest overview of the 205A_12010 and 205A_12013 variants - the two models in the 205A_12 size class.

These motors sit at the top end of the 205A range in terms of power and physical size.

Key Specs

  • Air‑cooled permanent‑magnet synchronous motors designed for 48–140 V systems.
  • Power range up to ~31 kW, the highest in the 205A family.
  • Torque range 22–89 Nm, depending on the specific 205A_12 variant.
  • Speed capability up to 8000 rpm across the 205A series.
  • Length ~300 mm, making it the longest of the 205A motors.
  • Weight ~36 kg, again the heaviest in the 205A family.
  • Recommended DC voltage 48–140 V, depending on winding variant.
  • Multiple mounting and shaft options available (ABC variants, spline options, etc.).
  • Suitable for traction, generators, hydraulic pumps, and industrial drives.

Specifications

Product Datasheet

 13T / Standard Keyway Shaft / Sin Cos10T / Standard Keyway Shaft / Sin Cos

Dimensions

 -

Manual

 -
Engiro 205A_12
