Gen4 Size8 PMAC

Gen4 Size8 PMAC

1 in stock
Encoder Type
£3,150.00
£3,150.00

Excluding VAT

Motor Pairing Considerations

Most customers speak to us before purchasing to ensure compatibility with:

  • Load profile: Is the motor driving a constant load, variable load, or shock loads?
  • Duty cycle: Continuous vs intermittent use, peak vs average power demand.
  • Environment: Marine (corrosion, humidity), agriculture (dust, mud), motorsport (heat, vibration).
  • Power/torque curve (does the motor deliver the torque at the speed you need?).
  • Cooling requirements (air vs liquid cooled, ventilation needs).

Contact us for any questions on motor pairing!

Up to 46% off

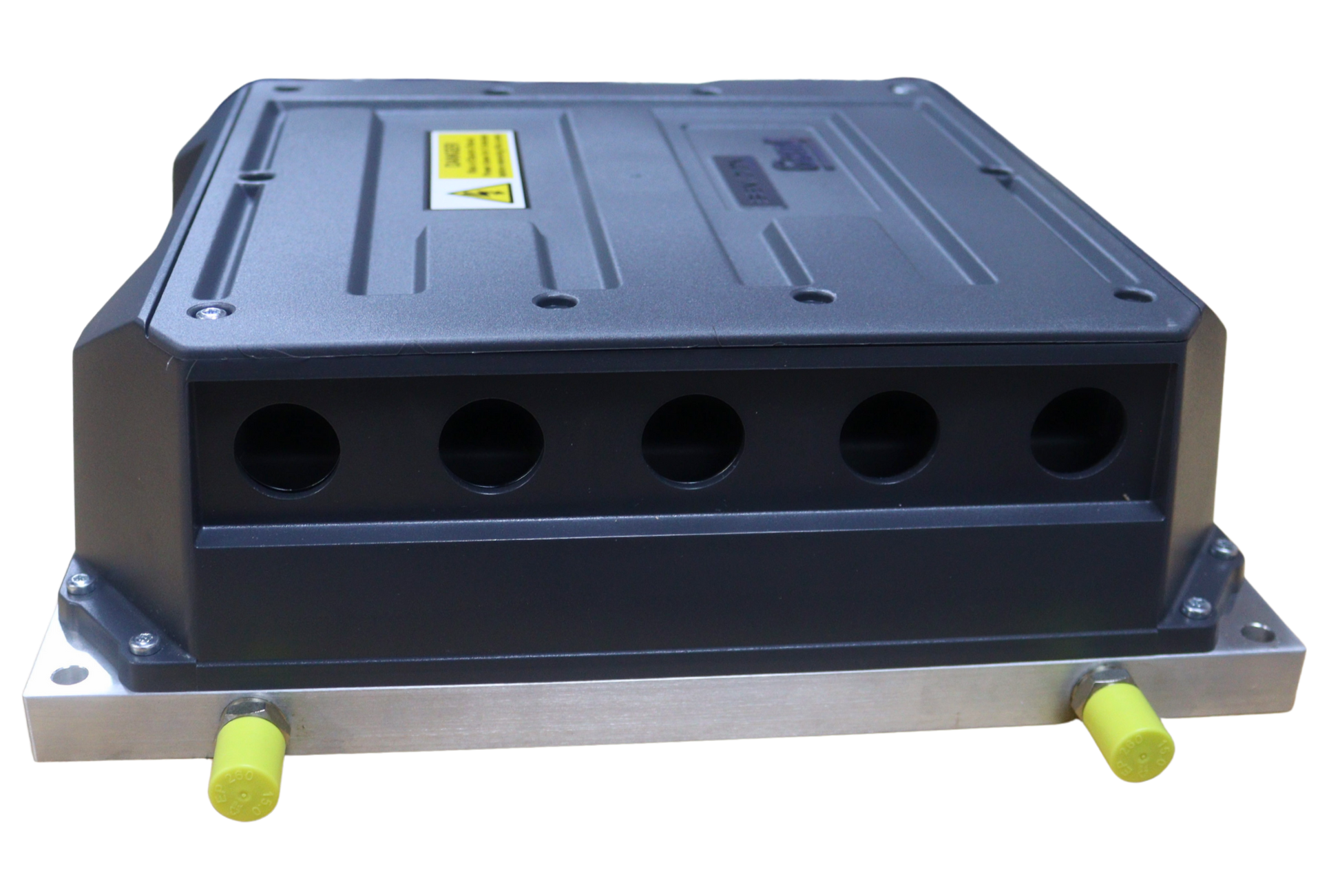

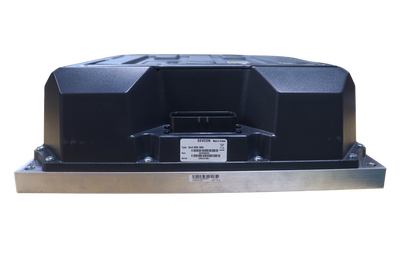

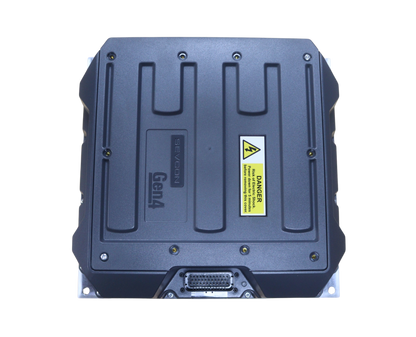

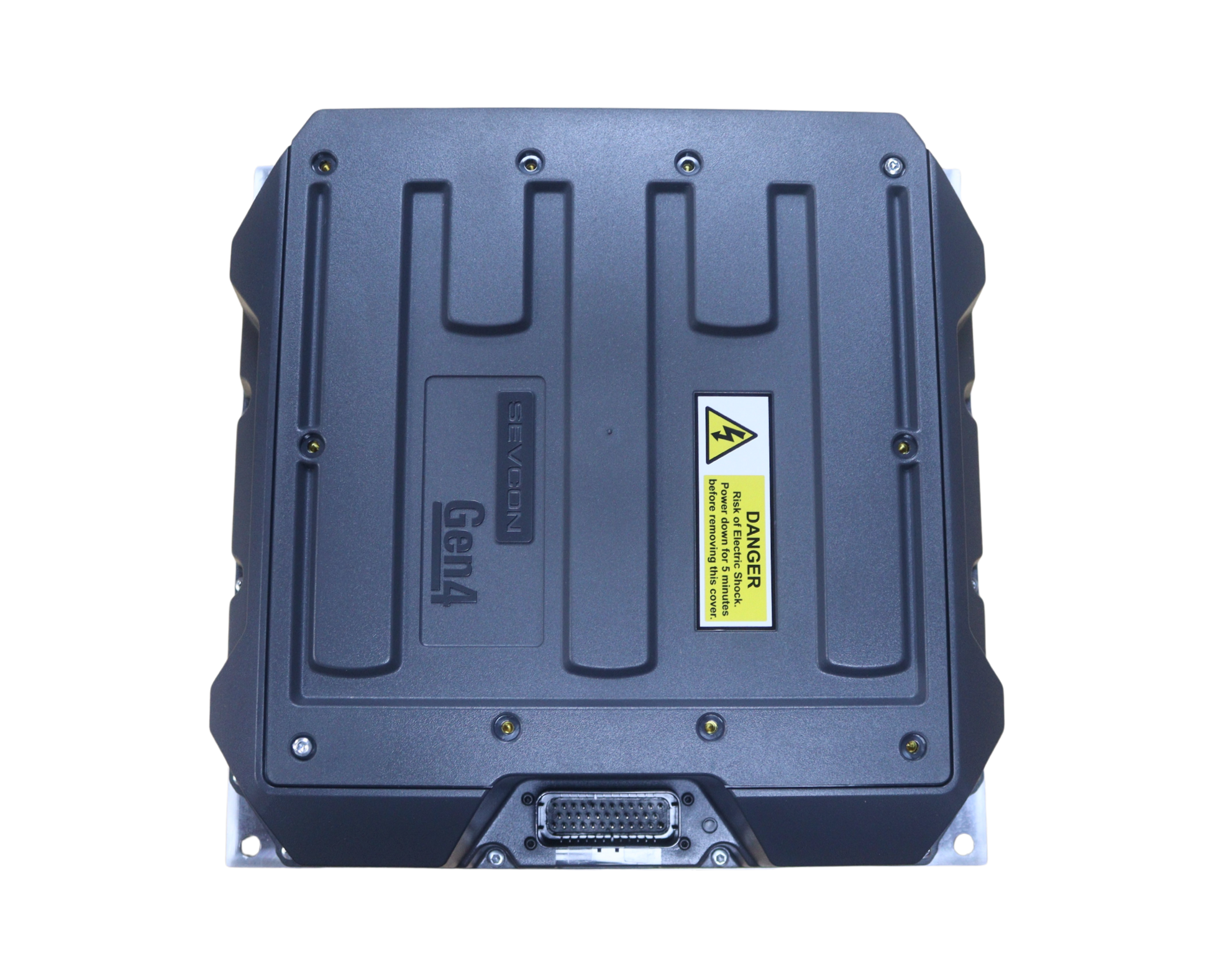

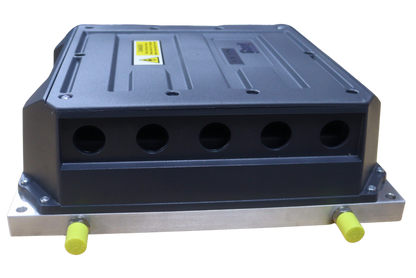

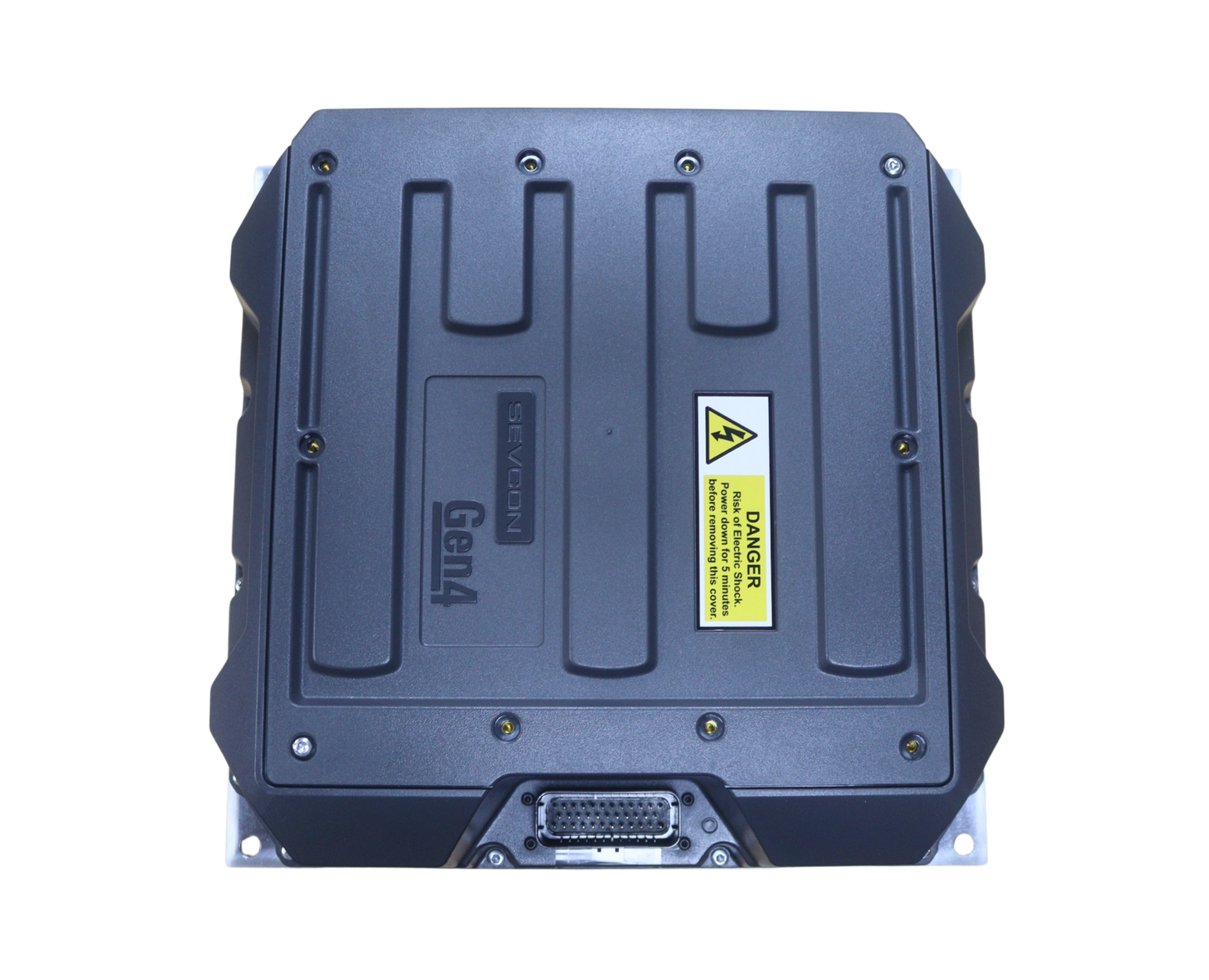

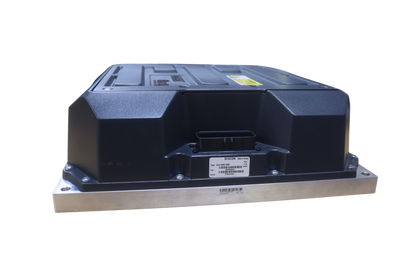

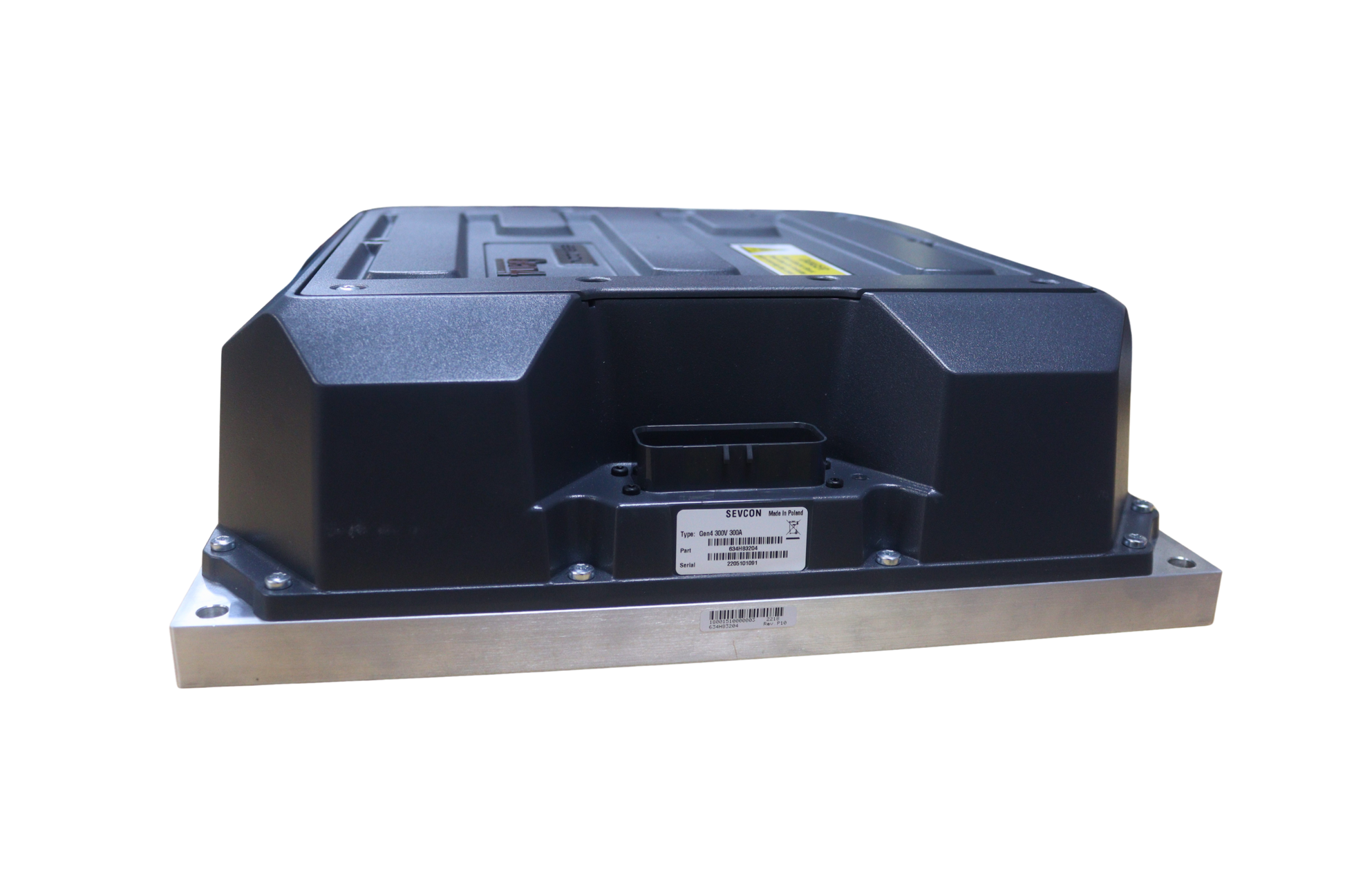

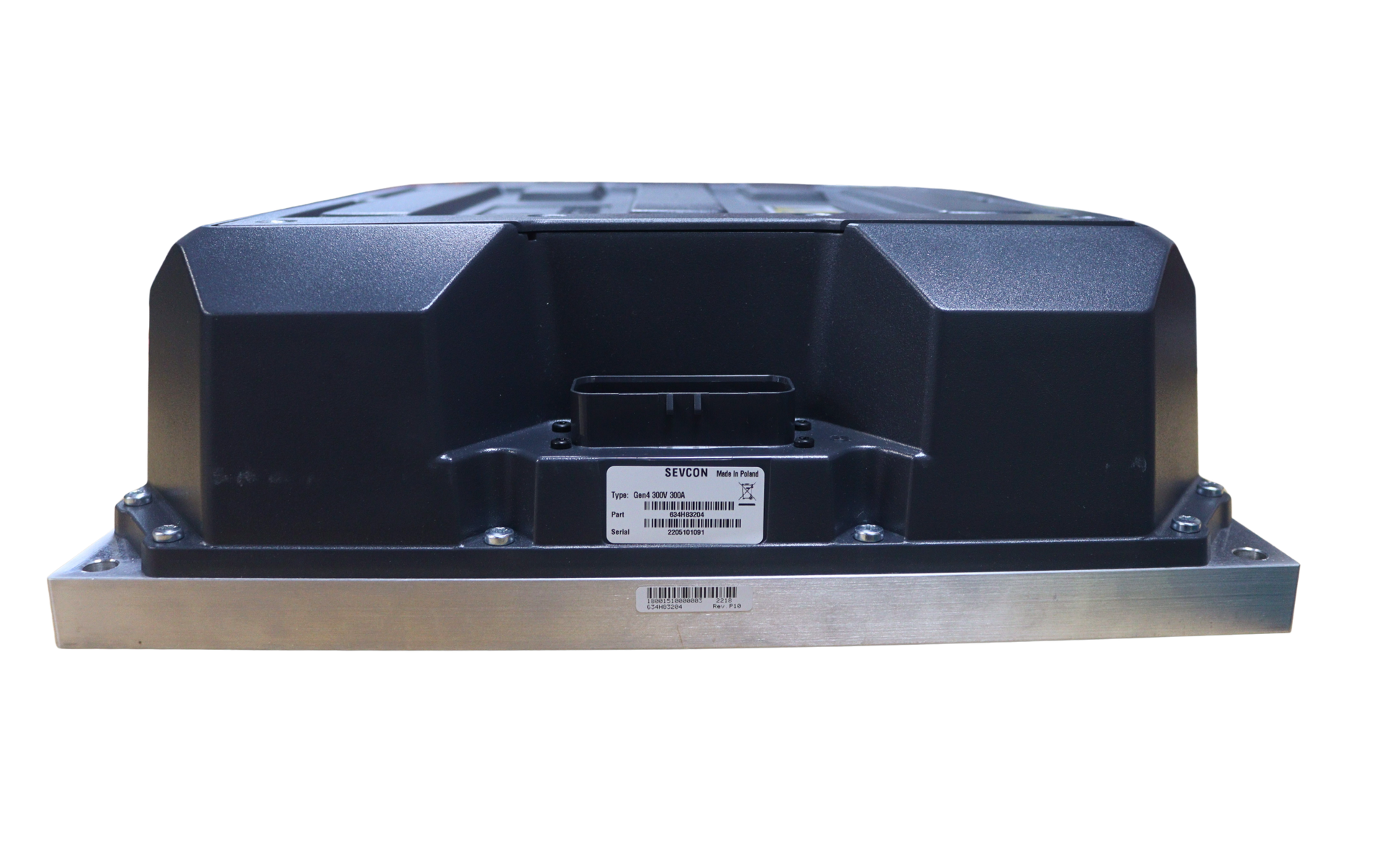

AC Motor Controller Gen4 (Size 8)

The Gen4 Size8 is a great all-rounder. This is a robust motor controller that is versatile, and can easily be calibrated to work with a wide variety of motors. The controller was designed around the super reliable Gen4 control architecture, and is at home in many applications.

The same hardware platform handles both AC Induction and Permanent Magnet AC motor technologies.

Features

  • Induction Machine, PMAC including SPM and IPM supported.
  • CAN communications bus allows for easy interconnection of controllers and devices.
  • CANopen and J1939 protocols
  • Configurable as a vehicle control master with demand generation for vehicles and pump applications, or as a motor control slave
  • Up to 400 VDC supply voltage
  • More than 150 kW peak power output
  • Up to 60 kW continuous power output
  • Safety interlock pulsed enable signal to enable hardware shutdown via VCU
  • IP66 protection
  • Highly configurable

Key Parameters

  • Operating voltage range 128 V to 400VDC
  • Output motor phase current:
    • 400 Arms (boost)
    • 300 Arms (2 min)
    • 200 Arms (continuous)
  • Water/Glycol cooling
  • –40°C to +85°C operation
  • IP66 protection
  • ISO 16750
Integrated I/O


The Gen4 Size 8 includes a fully-integrated set of inputs and outputs (I/O) designed to handle a wide range of vehicle functions. This eliminates the need for additional external
I/O modules or vehicle controllers and connectors.


All I/O protected to 40V
4 analogue inputs 0 – 10V
4 digital inputs
3 power supplies 0 – 10 V 100mA
3 contactor/solenoid outputs max 2A
Motor temperature sensor input
Programmable 5 V to 10 V encoder supply


Motor encoders supported include Resolver, UVW hall effect sensors, Sin/Cos sensors and  incremental AB encoders.

Specifications

Product Datasheet

 Datasheet

Dimensions

 -

Manual

 -
