Gen5 Size9 400V 400A

Gen5 Size9 400V 400A

Out of stock
£3,500.00
£3,500.00

Excluding VAT

Ask for lead time / quote

Motor Pairing Considerations

Most customers speak to us before purchasing to ensure compatibility with:

  • Load profile: Is the motor driving a constant load, variable load, or shock loads?
  • Duty cycle: Continuous vs intermittent use, peak vs average power demand.
  • Environment: Marine (corrosion, humidity), agriculture (dust, mud), motorsport (heat, vibration).
  • Power/torque curve (does the motor deliver the torque at the speed you need?).
  • Cooling requirements (air vs liquid cooled, ventilation needs).

Contact us for any questions on motor pairing!

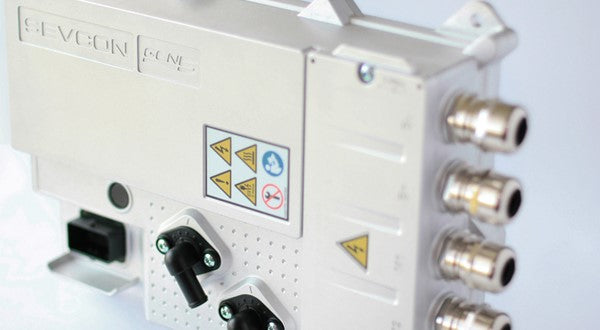

The Gen5 Size 9 motor controller is a high‑voltage, high‑output solution engineered for demanding traction and electrification applications. Operating up to 400 V with 400 A peak output, it delivers robust, efficient control for induction and permanent‑magnet motors. Its fully isolated logic, sealed high‑voltage connections, and advanced “User Code” customisation make it a reliable, integration‑friendly choice for OEMs and system builders.

Key Highlights

  • 400 V input and 400 A peak output for high‑power traction systems

  • Fully isolated logic and I/O for enhanced safety and system separation

  • Regenerative braking support to improve overall energy efficiency

  • Compact, liquid‑cooled design suitable for automotive, commercial, and off‑road EVs

  • Integrated I/O suite for broad vehicle‑function control and OEM flexibility

A rugged, high‑performance controller built to meet the electrification demands of modern mobility platforms.

Specifications

Product Datasheet

 Datasheet

Dimensions

 285mm x 394mm x 90mm

Manual

 -
