IVT-S-1K Sensor

IVT-S-1K Sensor

50 in stock
£125.00
£125.00 £249.00

Excluding VAT

Motor Pairing Considerations

Most customers speak to us before purchasing to ensure compatibility with:

  • Load profile: Is the motor driving a constant load, variable load, or shock loads?
  • Duty cycle: Continuous vs intermittent use, peak vs average power demand.
  • Environment: Marine (corrosion, humidity), agriculture (dust, mud), motorsport (heat, vibration).
  • Power/torque curve (does the motor deliver the torque at the speed you need?).
  • Cooling requirements (air vs liquid cooled, ventilation needs).

Contact us for any questions on motor pairing!

Up to 50% off

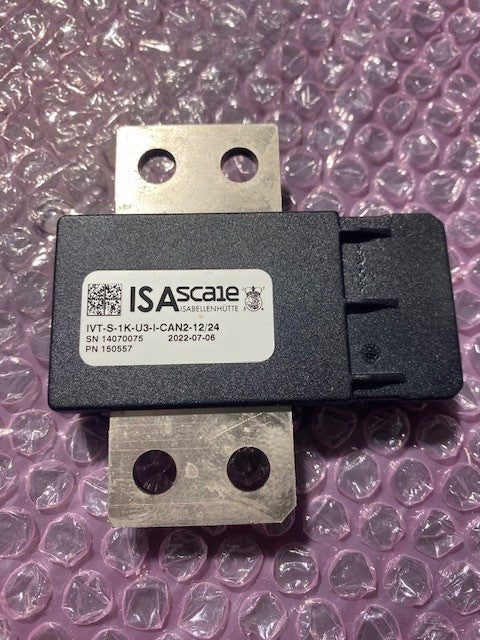

🔋 IVT‑S‑1K Digital Current & Voltage Sensor – Clearance Edition

Charge into your holiday tinkering with precision! Our clearance sale now includes the IVT‑S‑1K sensor which is a sleek, high-precision digital sensor perfect for your EV, battery, and energy-monitoring projects this festive season.

This is never-used, old stock, out of warranty parts.

🎯 Why It’s a Sensor Superstar

  • Triple Measurement Capability – Simultaneously monitors bidirectional DC current (±1,000 A nominal, extended to ±4,000 A peak), plus up to three high-voltage channels (nominal 1,000 V), with full temperature sensing.
  • CAN-Bus Smart Interface – Communicates via CAN 2.0a/b, comes with a DBC file, and supports advanced error diagnostics, coulomb counting, and programmable thresholds.
  • High Accuracy & Isolation – 0.4% total accuracy; 0.01% linearity; galvanically isolated up to 1,000 V, with active temperature compensation from –40 °C to +125 °C.
  • EV-Grade Reliability – Automotive-qualified with lifetime calibration, robust galvanic separation, and compact rugged form factor; benchmarked since 2017.

🛠️ Ideal For:

  1. EV battery packs and BMS projects
  2. High-current DC systems, UPS, stationary storage
  3. DIY ventures: e-bikes, motor control, charging stations
  4. Holiday weekend builds and precision diagnostics

Specifications

Product Datasheet

 -

Dimensions

 -

Manual

 -
IVT-S-1K Sensor
