Motenergy ME1003 Motor

Name: Motenergy ME1003 Motor
Brand: Voltsport
SKU: MTR_ME1003
Price: 715.0 GBP
Availability: InStock

64 in stock

£715.00

Excluding VAT

Motor Pairing Considerations

Most customers speak to us before purchasing to ensure compatibility with:

Load profile: Is the motor driving a constant load, variable load, or shock loads?
Duty cycle: Continuous vs intermittent use, peak vs average power demand.
Environment: Marine (corrosion, humidity), agriculture (dust, mud), motorsport (heat, vibration).
Power/torque curve (does the motor deliver the torque at the speed you need?).
Cooling requirements (air vs liquid cooled, ventilation needs).

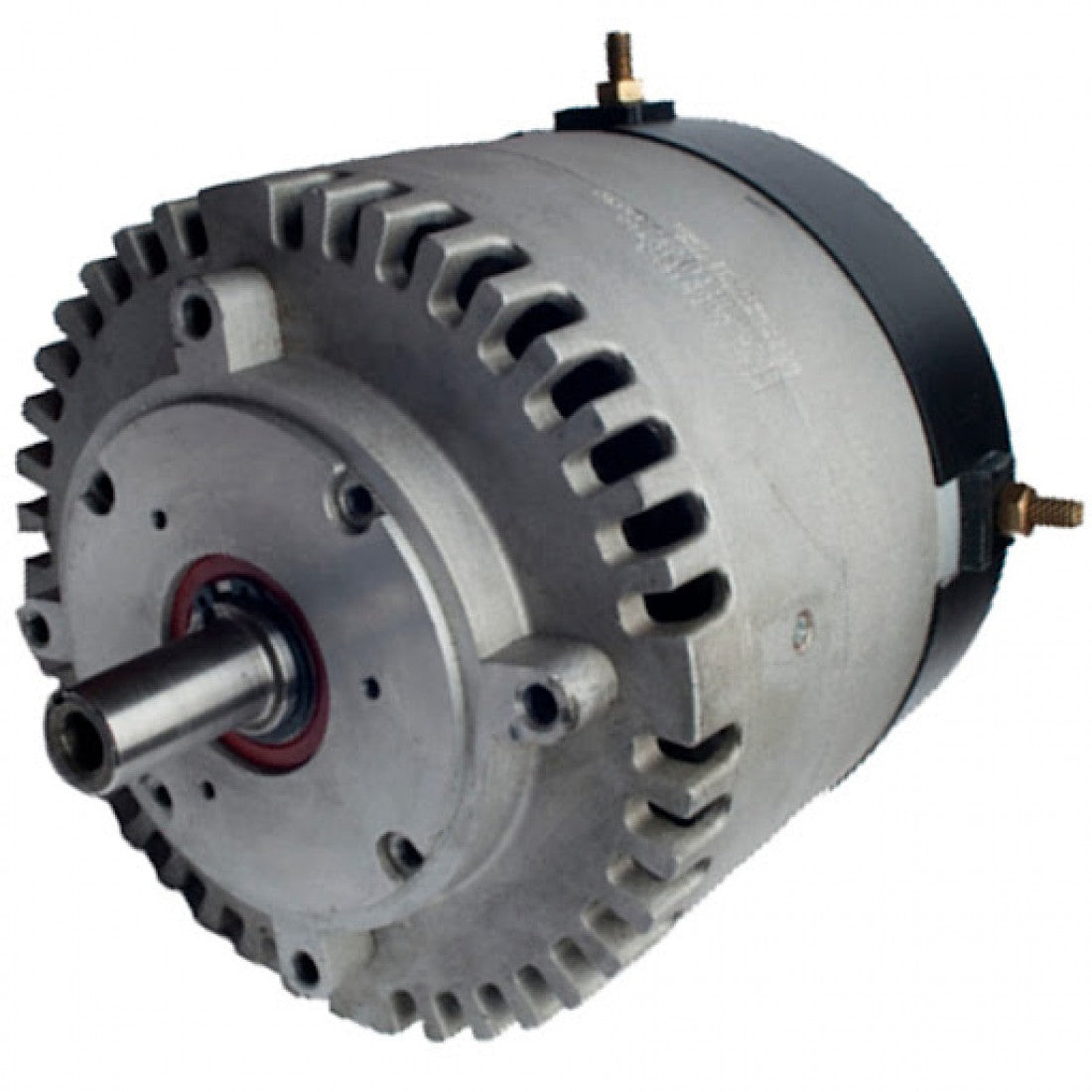

This ME1003 is a Brush-Type, Permanent Magnet DC motor with very high efficiency. Capable of 11.5 KW continuous and 20 KW for 30 seconds (at 72 VDC). For voltages from 12 to 72 VDC input and 200 amps continuous (400 amps for 30 seconds ). Designed for battery operated equipment. For more information, see the Drawing below. Motor weight of 39 pounds.

Feature	Value
Overall length	203 mm
Diameter	180 mm
Shaft diameter	22.2 mm (7/8")
Shaft length	50 mm
Keyway	3/16"
Mounting B.C.	127 mm (5.00")
Weight	17.7 kg

Specifications

Product Datasheet	Datasheet
Dimensions	-
Manual	-
