Motenergy ME1304 Motor

Motenergy ME1304 Motor

24 in stock
£800.00
£800.00

Excluding VAT

Motor Pairing Considerations

Most customers speak to us before purchasing to ensure compatibility with:

  • Load profile: Is the motor driving a constant load, variable load, or shock loads?
  • Duty cycle: Continuous vs intermittent use, peak vs average power demand.
  • Environment: Marine (corrosion, humidity), agriculture (dust, mud), motorsport (heat, vibration).
  • Power/torque curve (does the motor deliver the torque at the speed you need?).
  • Cooling requirements (air vs liquid cooled, ventilation needs).

Contact us for any questions on motor pairing!

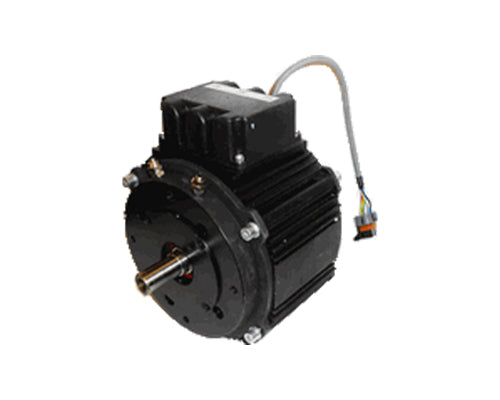

The Motenergy ME1304 motor
A 3-phase, Y-connected Permanent Magnet Synchronous Motor with an axial air gap, otherwise known as PMAC motor.

1) Designed for 180 amps continuous, 450 amps for 2 minutes.
2) Maximum rotor speed of 5000 rpm.
3) Recommended 6 litres per minute of water cooling (Can also be used as an Air-Cooled, Totally Enclosed motor without water cooling, but de-rated to 125 amps continuous.)
4) Weight is approx 36 pounds
5) Rating of 14.5 kW continuous with a 96 VDC battery pack voltage.
6) Sine/cosine rotor position sensor
7)  KTY84-130 Temperature sensor in the motor windings
8) Designed for 24 to 96-volt battery-operated systems.


These patented axial flux motors are designed to work with sinusoidal (sine wave) controllers such as the Sevcon Gen4.
NOTE: We do not recommend the use of square wave controllers with these motors. This may reduce the durability and efficiency of the motor, as well as void it's warranty.
