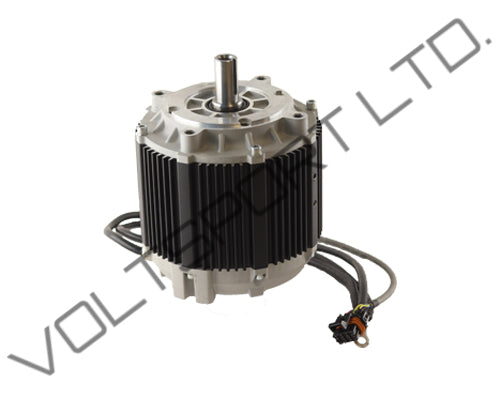

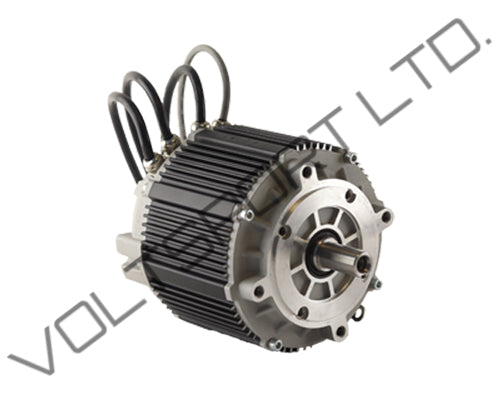

Motenergy ME1718 Motor

Designed for high-performance electric drive applications, the Motenergy ME1718 is a 3-phase, Y-connected Permanent Magnet Synchronous Motor. It achieves efficiencies of up to 92% across a battery voltage range of 24-60 VDC and is rated for a continuous current of 100 A at 48 VDC.

Key Features

 1) Inductance (at 1000 Hz): 39 to 43.5 µH
 2) Winding Resistance (Phase-to-Phase): 5.06 to 5.28 mΩ
 3) Sensor Type: Sine-cosine encoder, one cycle per revolution
 4) Weight: 13.8 kg
 5) Number of Poles: 10 poles (5 pole pairs)
 6) Protection Rating: IP65-rated casing
 7) Maximum Current: 300 A for up to 2 minutes
 8) Continuous Current: 100 A
 9) Power Rating: 6 kW
 10) Duty Cycle: S1 continuous duty
 11) Rated Speed: 4,000 rpm
 12) Rated Torque: 14.3 Nm
 13) Supply Voltage: 60 VDC battery supply to the controller
 14) Temperature Sensor: KTY84-130 winding temperature sensor
 15) Magnet Specification: N38UH, rated to 180°C
 16) Maximum Winding Temperature: 170°C
 17) Front Bearing: NSK 6206
 18) Rear Bearing: NSK 6203
 19) Maximum Mechanical Rotor Speed: 6,000 rpm
