Motor Pairing Considerations

Most customers speak to us before purchasing to ensure compatibility with:

  • Load profile: Is the motor driving a constant load, variable load, or shock loads?
  • Duty cycle: Continuous vs intermittent use, peak vs average power demand.
  • Environment: Marine (corrosion, humidity), agriculture (dust, mud), motorsport (heat, vibration).
  • Power/torque curve (does the motor deliver the torque at the speed you need?).
  • Cooling requirements (air vs liquid cooled, ventilation needs).

Contact us for any questions on motor pairing!

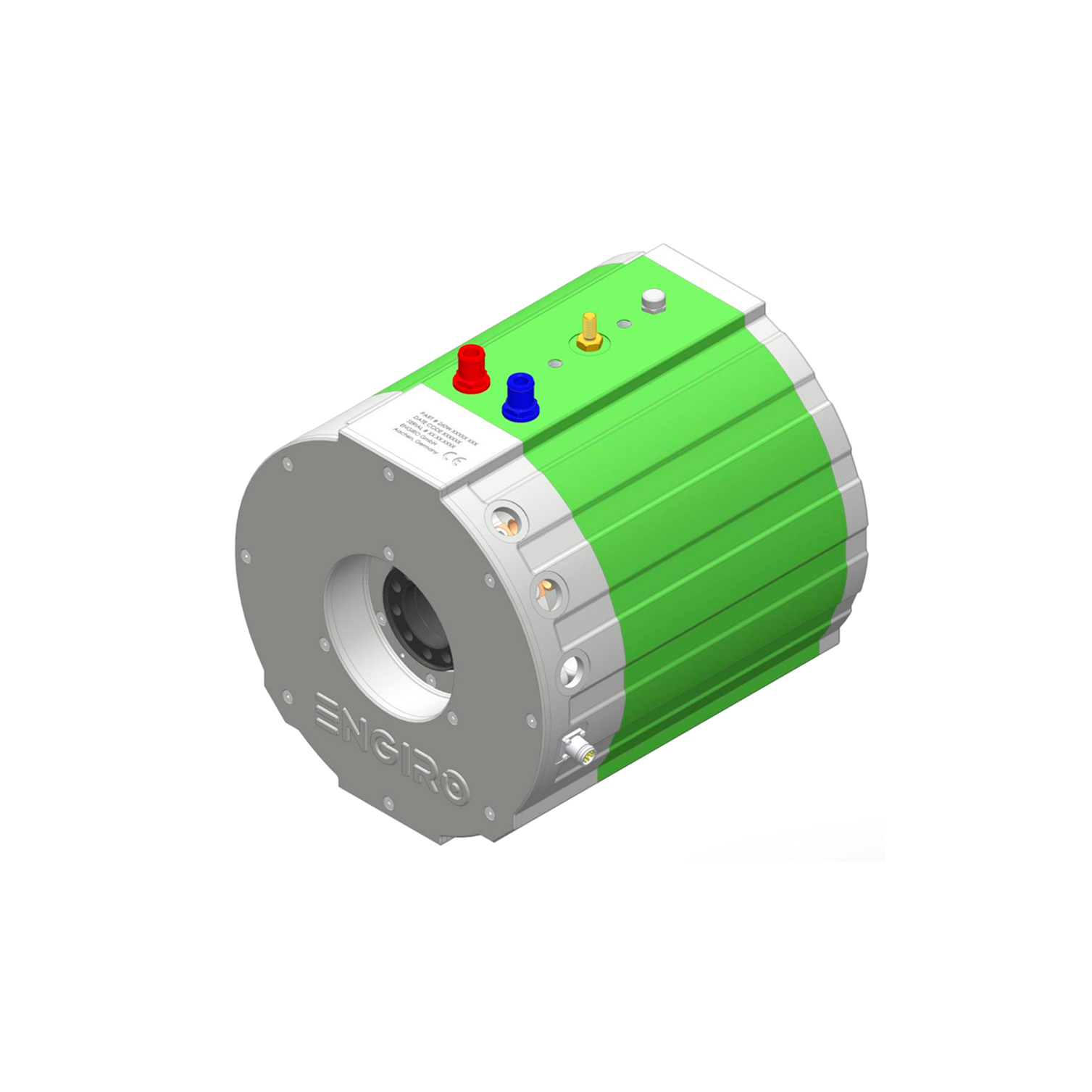

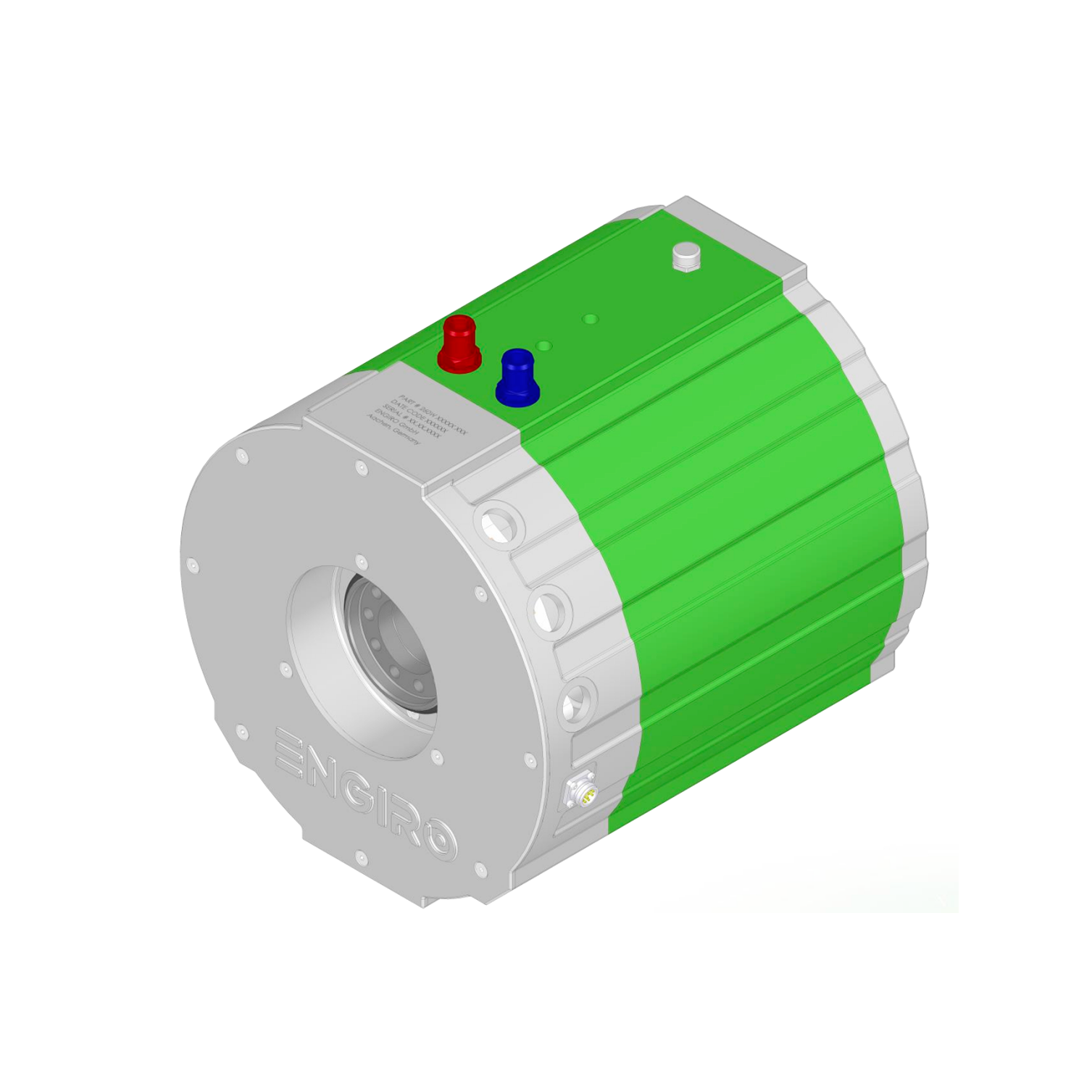

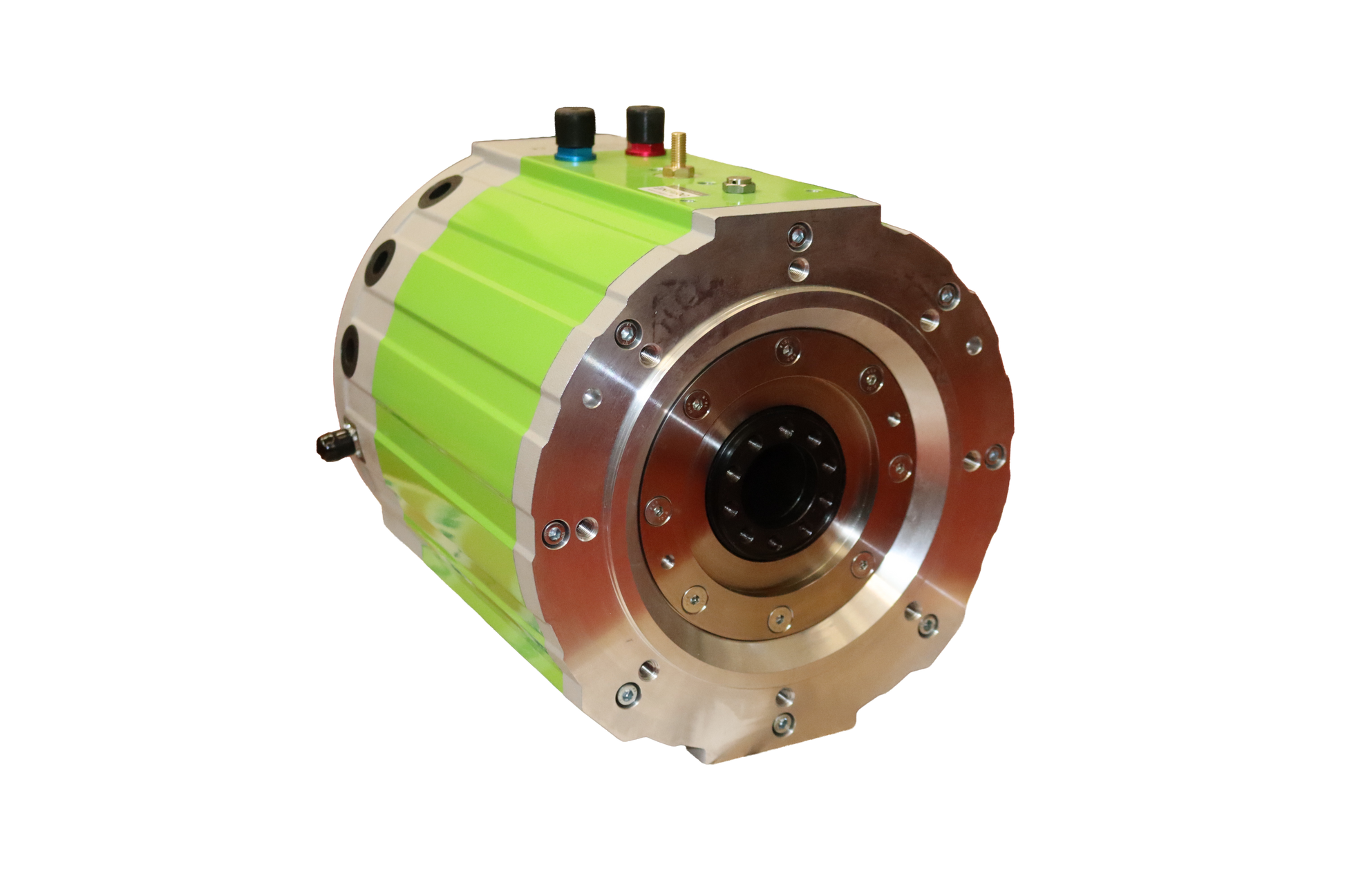

The Engiro 260W_08 family consists of compact, water‑cooled permanent‑magnet synchronous motors designed for traction, generator, and industrial applications. These motors deliver 47–93 kW continuous power, with 80–162 kW peak, depending on the specific variant.

They are the smallest high‑voltage motors in the 260W series, offering excellent power density in a compact package.



  • Water‑cooled PMSM motors with high efficiency and compact dimensions.
  • Continuous power from 47 kW to 93 kW, depending on the model.
  • Peak power from 80 kW to 162 kW for the 08058 and 08028 variants respectively.
  • Recommended voltage ranges:
    • 500–850 V for the 08028‑ABC
    • 48–200 V for the 08058‑ABC/SFR low‑voltage variant
  • High torque output, including:
    • 08028‑ABC: 212 Nm continuous, 443 Nm peak
    • 08058‑ABC: 222 Nm continuous, 435 Nm peak
  • Compact and lightweight:
    • 08058‑ABC: 230 × 331 × 90 mm, 68 kg
  • IP6K9K protection for harsh environments.
  • Resolver‑based position sensing and temperature monitoring built in.


Specifications

Product Datasheet

 58T / Closed B Side / 0.29 Gain Resolver11T / Closed B Side / 0.29 Gain Resolver28T / Closed B Side / 0.29 Gain Resolver

Dimensions

 -

Manual

 -
