260W_10 Turns
260W Interface
260 Encoder Type
Request Quote
Request Quote

Excluding VAT

Ask for lead time / quote

Motor Pairing Considerations

Most customers speak to us before purchasing to ensure compatibility with:

  • Load profile: Is the motor driving a constant load, variable load, or shock loads?
  • Duty cycle: Continuous vs intermittent use, peak vs average power demand.
  • Environment: Marine (corrosion, humidity), agriculture (dust, mud), motorsport (heat, vibration).
  • Power/torque curve (does the motor deliver the torque at the speed you need?).
  • Cooling requirements (air vs liquid cooled, ventilation needs).

Contact us for any questions on motor pairing!

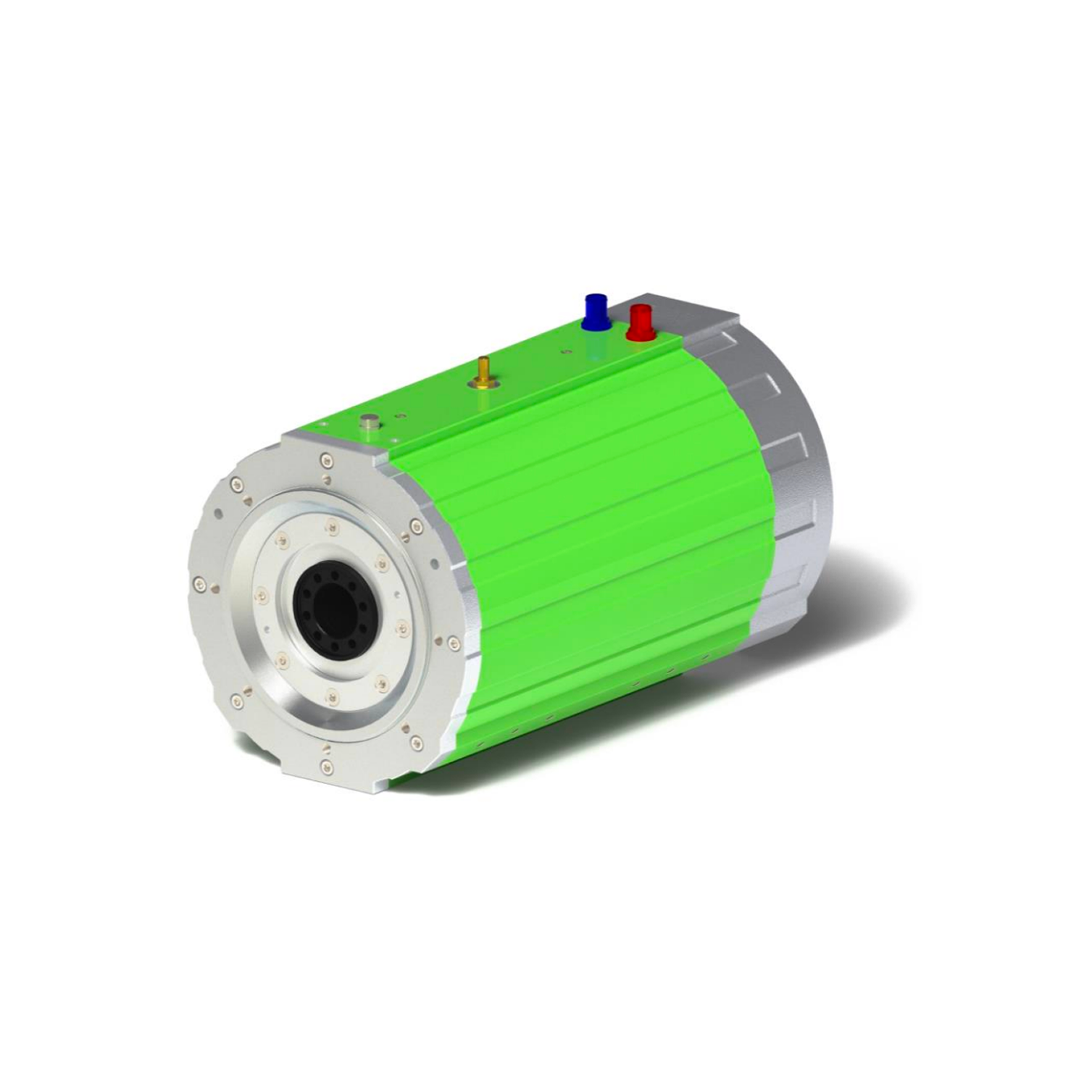

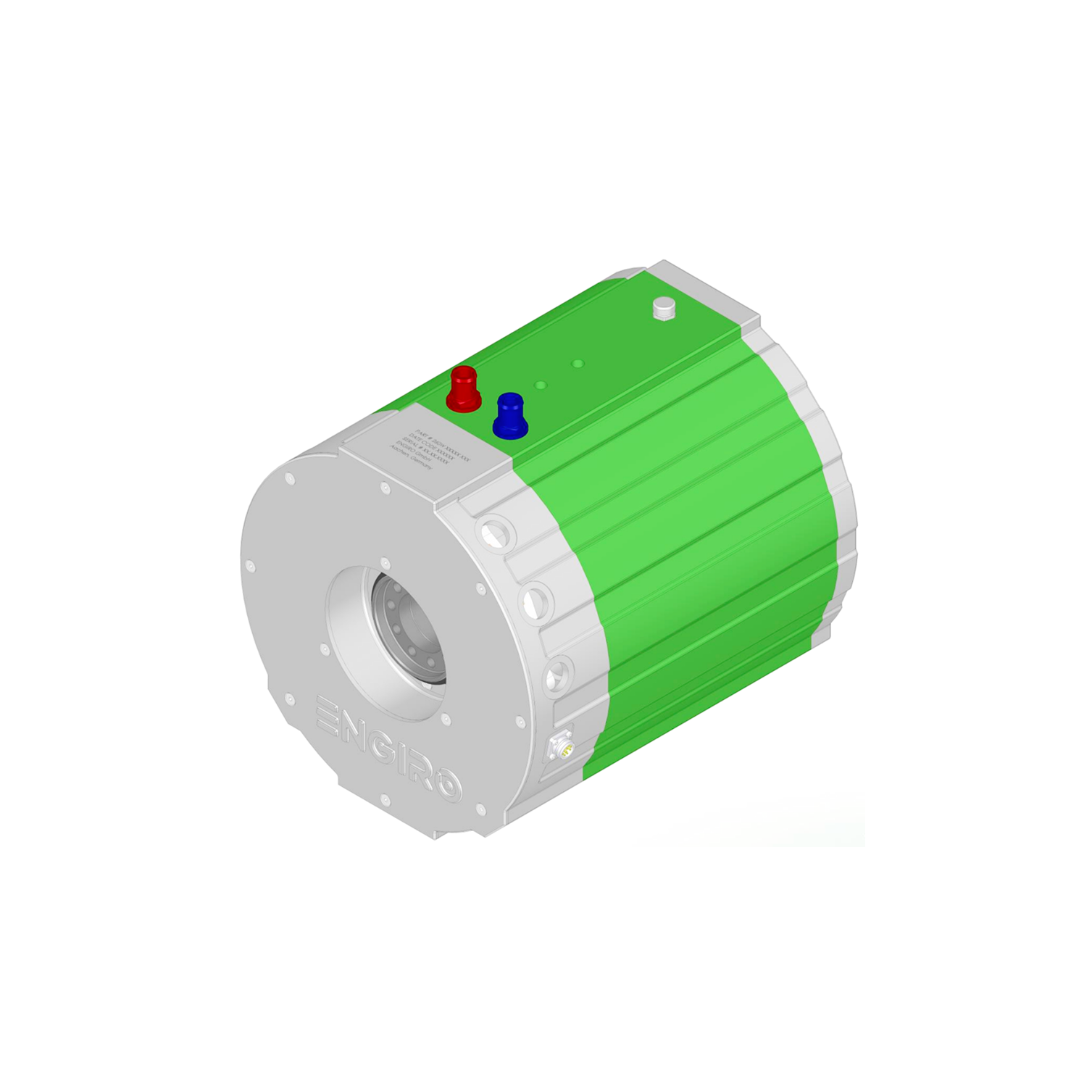

The Engiro 260W_10 series delivers 148–229 kW continuous and up to 490 kW peak in compact, water‑cooled PMSM machines designed for 300–850 V traction and industrial applications with excellent power density.

The 260W_10 family is part of Engiro’s high‑power 260W water‑cooled PMSM lineup. These motors deliver 148–229 kW continuous power, extremely high peak torque, and operate across 300–850 V depending on the specific variant.

They are designed for traction, generator, and industrial applications where high power density and compact packaging are essential.

Key Specs from the 260W_10 Range

  • Water‑cooled PMSM architecture with very high efficiency and power density.
  • Continuous power from ~148 kW to 229 kW depending on the model (10010 vs 20010).
  • Peak power up to ~490 kW for the 20010‑ABC variant.
  • Voltage ranges from 300 V to 850 V depending on the variant.
  • High torque output, including:
    • 260W‑20010‑ABC: 488 Nm continuous, 1108 Nm peak
    • 260W‑10010: 148 kW continuous
  • Compact and lightweight for the power class — e.g., 260W‑10010 is ~350 mm long and 77 kg.
  • Double‑shaft options and multiple mounting interfaces (ABC, S1, etc.).
  • Suitable for EVs, mobile machinery, hydraulic drives, and marine systems.

Engiro 260W Family – Variant Selector

Start Identify voltage, cooling, torque and duty cycle needs.
↓
System Voltage
  • 24–48 V → All 260W variants compatible
Move to torque and cooling requirements.
↓
Cooling Type
  • Air‑cooled → 260W_10, 260W_28 Range
  • Water‑cooled → 260W_08, 260W_15, 260W_20, 260W_25
↓
Torque Requirement
  • Low → 260W_08 / 260W_10
  • Medium → 260W_15 / 260W_20
  • High → 260W_25
  • Extended‑range efficiency → 260W_28 Range
↓
Duty Cycle
  • Light / intermittent → 08 / 10 / 28
  • Medium → 15 / 20
  • Heavy / continuous → 20 / 25
↓
Thermal Load
  • Low → 08 / 10 / 28
  • Moderate → 15 / 20
  • High → 25
↓
Space & Weight Constraints
  • Very compact → 08 / 10
  • Moderate space → 15 / 20
  • Space available → 25 for maximum performance
↓
Result 260W_08 → Compact, water‑cooled, light‑duty
260W_10 → Compact, air‑cooled, light‑duty
260W_15 → Medium torque, water‑cooled
260W_20 → High torque, continuous‑duty capable
260W_25 → Maximum torque, heavy‑duty
260W_28 Range → Air‑cooled, extended‑range efficiency
Feature 260W_08 260W_10 260W_15 260W_20 260W_25 260W_28 Range
Cooling Water‑cooled Air‑cooled Water‑cooled Water‑cooled Water‑cooled Air‑cooled
Voltage Range 24–48 V 24–48 V 24–48 V 24–48 V 24–48 V 24–48 V
Torque Level Low Low Medium High Very High Low–Medium (Efficiency‑optimised)
Duty Cycle Light / Intermittent Light / Intermittent Medium Heavy / Continuous Heavy / Continuous Light / Range‑focused
Thermal Headroom Low–Moderate Low Moderate High Very High Low
Recommended Use Compact EVs, robotics Light EVs, simple cooling Utility EVs, mid‑range Continuous‑duty EVs Heavy‑duty, high‑load EVs Range‑optimised mobility
Controller Compatibility Sevcon / SME / FOC Sevcon / SME / FOC Sevcon / SME / FOC Sevcon / SME / FOC Sevcon / SME / FOC Sevcon / SME / FOC

Specifications

Product Datasheet

 20T / Closed B Side / 0.29 Gain Resolver14T / Closed B Side / 0.29 Gain Resolver

Dimensions

 -

Manual

 -
