260W_15

260W_15

Out of stock
260W_15 Turns
260W Interface
260 Encoder Type
Request Quote
Request Quote

Excluding VAT

Ask for lead time / quote

Motor Pairing Considerations

Most customers speak to us before purchasing to ensure compatibility with:

  • Load profile: Is the motor driving a constant load, variable load, or shock loads?
  • Duty cycle: Continuous vs intermittent use, peak vs average power demand.
  • Environment: Marine (corrosion, humidity), agriculture (dust, mud), motorsport (heat, vibration).
  • Power/torque curve (does the motor deliver the torque at the speed you need?).
  • Cooling requirements (air vs liquid cooled, ventilation needs).

Contact us for any questions on motor pairing!

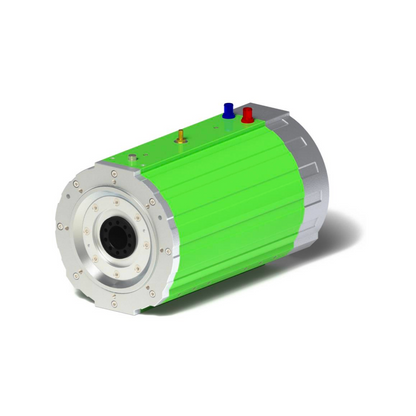

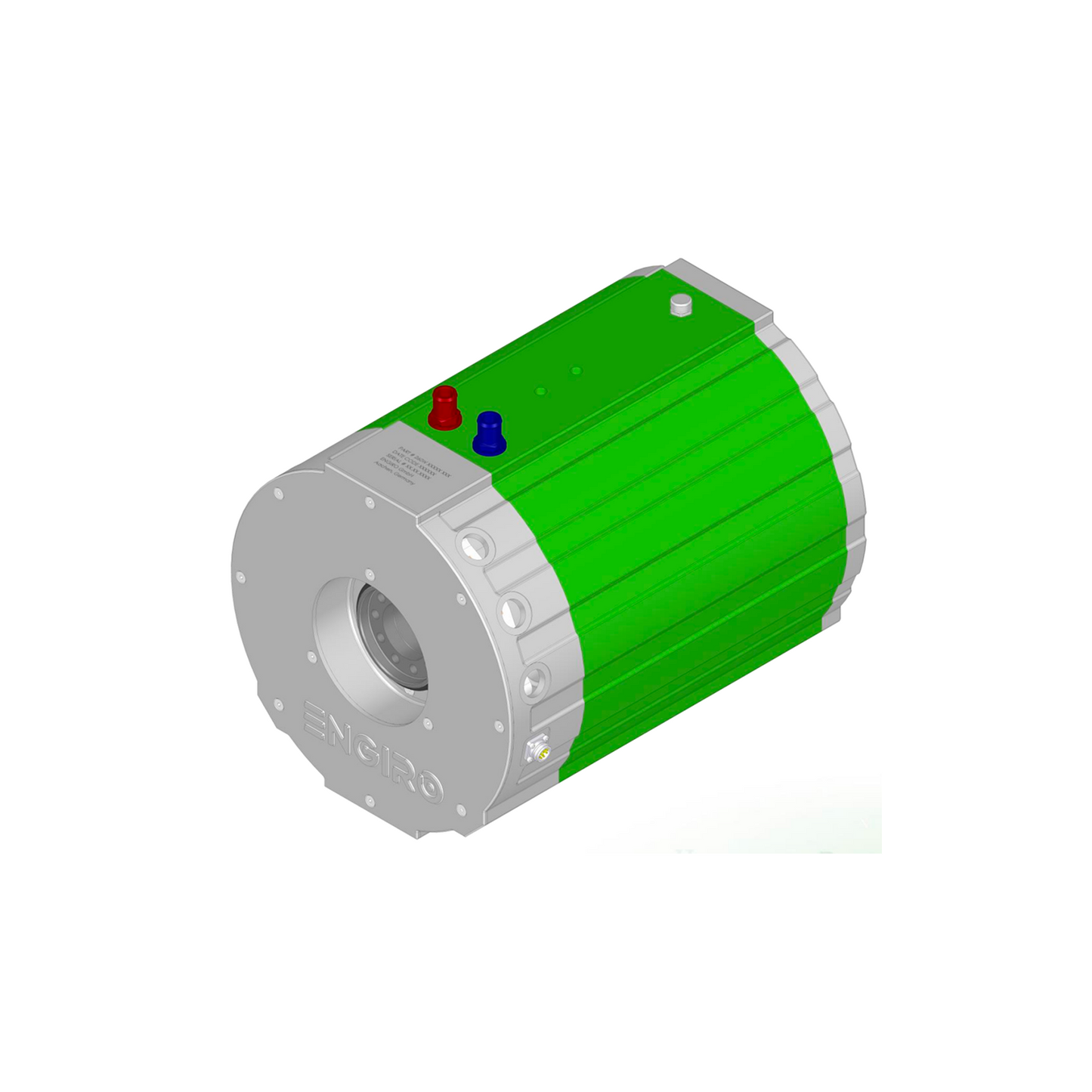

The Engiro 260W_15 family sits just below the 260W_20 motors in Engiro’s lineup. These are water‑cooled permanent‑magnet synchronous machines designed for traction, generator, and industrial applications where high power density and compact packaging matter.

Key Specs

  • Water‑cooled PMSM motor with high continuous and peak power.

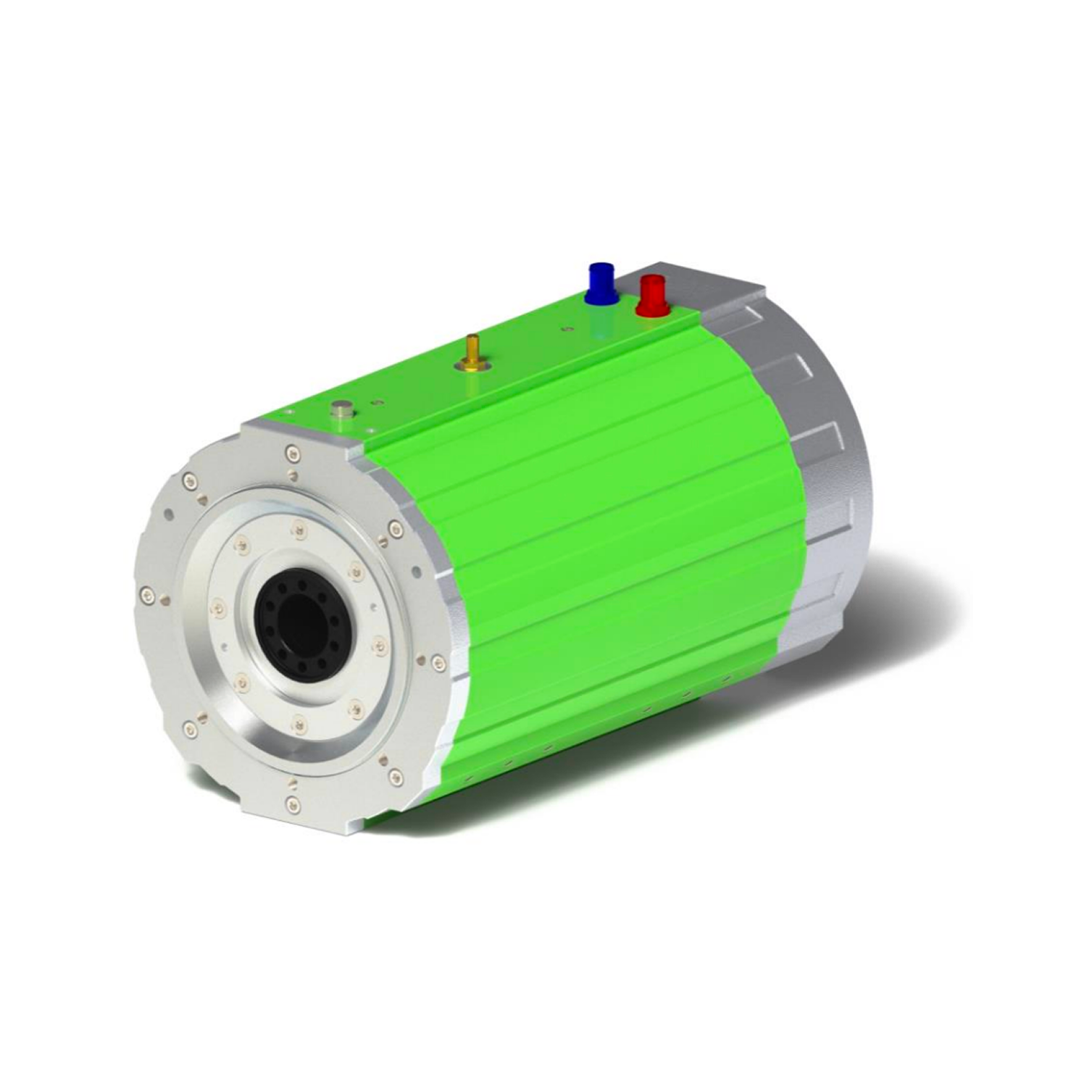

  • Continuous power up to 166 kW for the 15018‑ABC variant.
  • Peak power up to 300 kW
  • Recommended voltage range 350–850 V (ABC variant).
  • High torque output, including:
    • 381–412 Nm continuous torque depending on voltage configuration
    • 817–833 Nm peak torque (10 s)
  • Mass ~97 kg for the 15018‑ABC model.
  • Motor speed range 1910–6000 rpm depending on operating point.
  • IP6K9K protection, suitable for harsh environments.

Engiro 260W Family – Variant Selector

Start Identify voltage, cooling, torque and duty cycle needs.
↓
System Voltage
  • 24–48 V → All 260W variants compatible
Move to torque and cooling requirements.
↓
Cooling Type
  • Air‑cooled → 260W_10, 260W_28 Range
  • Water‑cooled → 260W_08, 260W_15, 260W_20, 260W_25
↓
Torque Requirement
  • Low → 260W_08 / 260W_10
  • Medium → 260W_15 / 260W_20
  • High → 260W_25
  • Extended‑range efficiency → 260W_28 Range
↓
Duty Cycle
  • Light / intermittent → 08 / 10 / 28
  • Medium → 15 / 20
  • Heavy / continuous → 20 / 25
↓
Thermal Load
  • Low → 08 / 10 / 28
  • Moderate → 15 / 20
  • High → 25
↓
Space & Weight Constraints
  • Very compact → 08 / 10
  • Moderate space → 15 / 20
  • Space available → 25 for maximum performance
↓
Result 260W_08 → Compact, water‑cooled, light‑duty
260W_10 → Compact, air‑cooled, light‑duty
260W_15 → Medium torque, water‑cooled
260W_20 → High torque, continuous‑duty capable
260W_25 → Maximum torque, heavy‑duty
260W_28 Range → Air‑cooled, extended‑range efficiency
Feature 260W_08 260W_10 260W_15 260W_20 260W_25 260W_28 Range
Cooling Water‑cooled Air‑cooled Water‑cooled Water‑cooled Water‑cooled Air‑cooled
Voltage Range 24–48 V 24–48 V 24–48 V 24–48 V 24–48 V 24–48 V
Torque Level Low Low Medium High Very High Low–Medium (Efficiency‑optimised)
Duty Cycle Light / Intermittent Light / Intermittent Medium Heavy / Continuous Heavy / Continuous Light / Range‑focused
Thermal Headroom Low–Moderate Low Moderate High Very High Low
Recommended Use Compact EVs, robotics Light EVs, simple cooling Utility EVs, mid‑range Continuous‑duty EVs Heavy‑duty, high‑load EVs Range‑optimised mobility
Controller Compatibility Sevcon / SME / FOC Sevcon / SME / FOC Sevcon / SME / FOC Sevcon / SME / FOC Sevcon / SME / FOC Sevcon / SME / FOC

Specifications

Product Datasheet

 Datasheet31T / Closed B Side / 0.29 Gain Resolver18T / Shaft interface on B Side / 0.29 Gain Resolver18T / Closed B Side / 0.29 Gain Resolver

Dimensions

 -

Manual

 14T / Closed B Side / 0.29 Gain Resolver (1)14T / Closed B Side / 0.29 Gain Resolver (2)
