MTR_EM_132_52_11A

MTR_EM_132_52_11A

1 in stock
Shaft and Mounting Interface
Request Quote
Request Quote

Excluding VAT

Ask for lead time / quote

Motor Pairing Considerations

Most customers speak to us before purchasing to ensure compatibility with:

  • Load profile: Is the motor driving a constant load, variable load, or shock loads?
  • Duty cycle: Continuous vs intermittent use, peak vs average power demand.
  • Environment: Marine (corrosion, humidity), agriculture (dust, mud), motorsport (heat, vibration).
  • Power/torque curve (does the motor deliver the torque at the speed you need?).
  • Cooling requirements (air vs liquid cooled, ventilation needs).

Contact us for any questions on motor pairing!

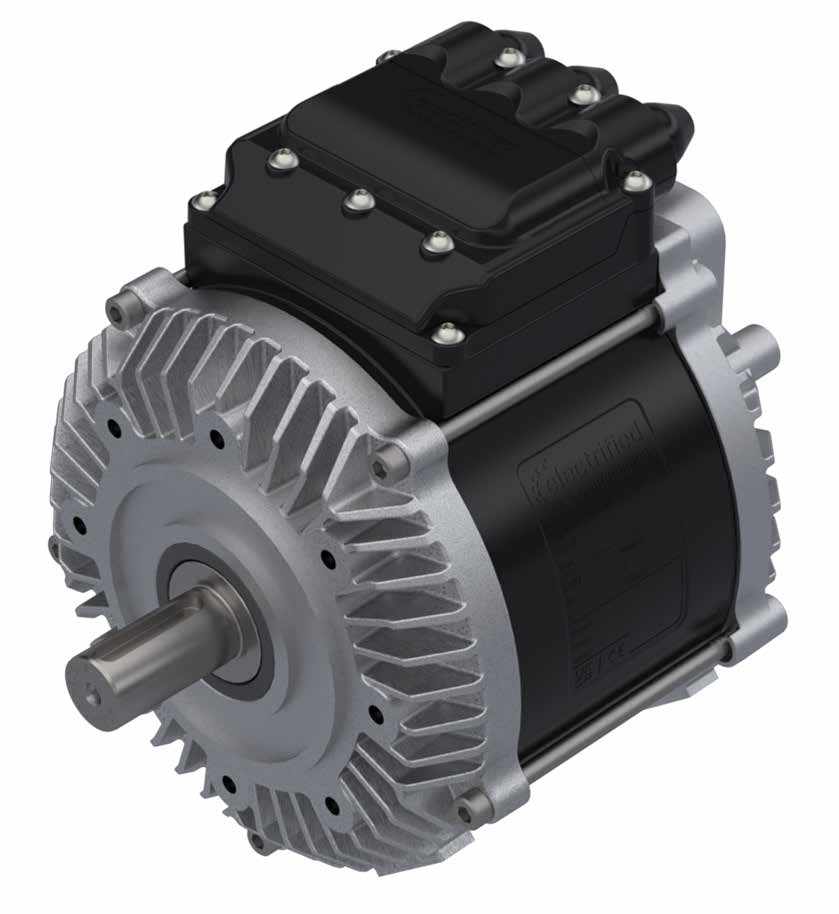

Electrified Motors 132-52 Series

The 132 Series is a powerful solution for space constrained construction vehicles, and set to be market-leading in size per kilowatt for air-cooled electric motors.

Available with a four different interface options:

  • Keyway shaft B12 or B5
  • SAE A with 9T spline for hydraulic pumps
  • Group 1 Cross Coupling Pump Interface.

Performance Overview:

  • Nominal Voltage 48V
  • Peak Torque 30Nm
  • Peak Power (S2 - 5) 7.8kW
  • Rated Power (S2 - 60) 3.6kW
  • Maximum Speed 7000RPM
  • Motor Weight 7kg
  • IP6K9K possible.







Specifications

Product Datasheet

 DatasheetB14-80B5-80Group 1 CouplingSAE A 9T

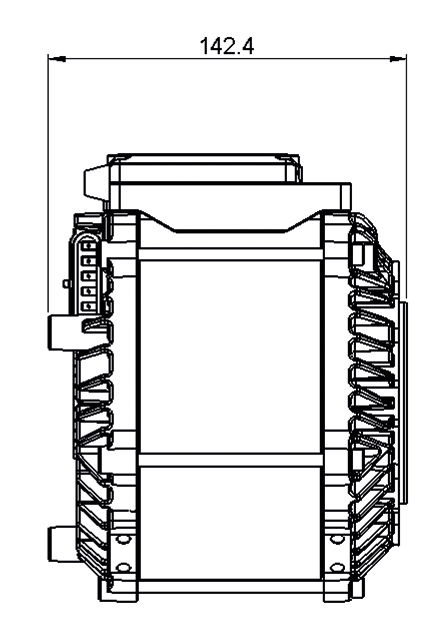

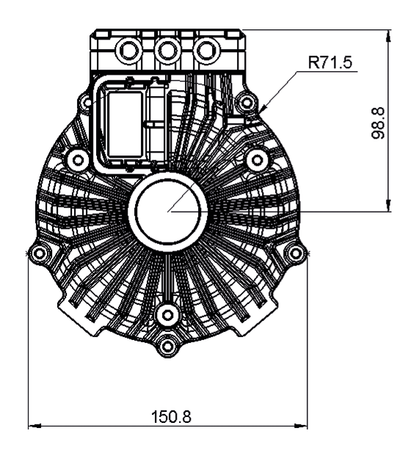

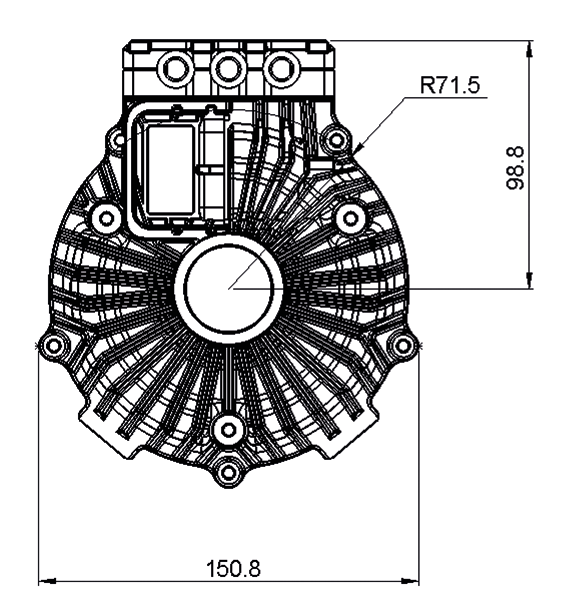

Dimensions

 -

Manual

 -
