NX Technologies E160 size controller

NX Technologies E160 size controller

Out of stock
NX Voltage
Request Quote
Request Quote

Excluding VAT

Ask for lead time / quote

Motor Pairing Considerations

Most customers speak to us before purchasing to ensure compatibility with:

  • Load profile: Is the motor driving a constant load, variable load, or shock loads?
  • Duty cycle: Continuous vs intermittent use, peak vs average power demand.
  • Environment: Marine (corrosion, humidity), agriculture (dust, mud), motorsport (heat, vibration).
  • Power/torque curve (does the motor deliver the torque at the speed you need?).
  • Cooling requirements (air vs liquid cooled, ventilation needs).

Contact us for any questions on motor pairing!

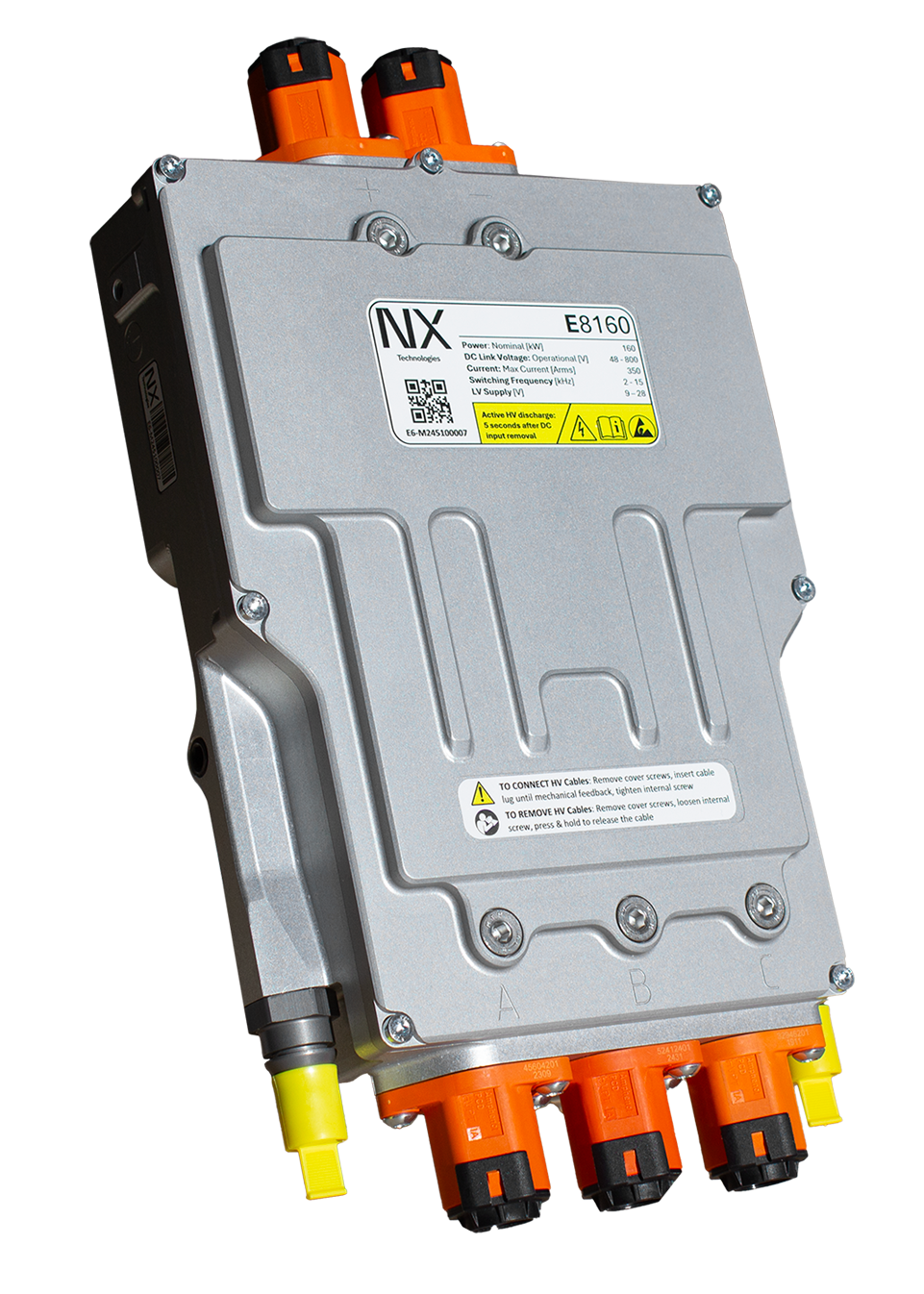

NX Technologies E160 - 400–800 V, up to 160 kW Traction Inverter

The E160 is part of NX Technologies’ high‑voltage E‑Series, designed for 400–800 V traction, commercial EVs, marine, hybrid systems, and e‑bus platforms. It delivers up to 160 kW in a compact, ISO 26262‑ready package with advanced efficiency features and cybersecurity.

Key Highlights

  • Up to 160 kW output

  • 400–800 V operating range

  • Mass: 4.5 kg

  • Peak efficiency up to 99% (via VarioSwitch™)

  • ASIL‑D‑rated hardware with triple‑core MCU

  • EVITA HSM cybersecurity module (ISO 21434)

  • Supports resolver, encoder, xMR, sensorless control

  • Automotive temperature range −40 °C to +105 °C

Specifications

Product Datasheet

 Datasheet

Dimensions

 -

Manual

 -
