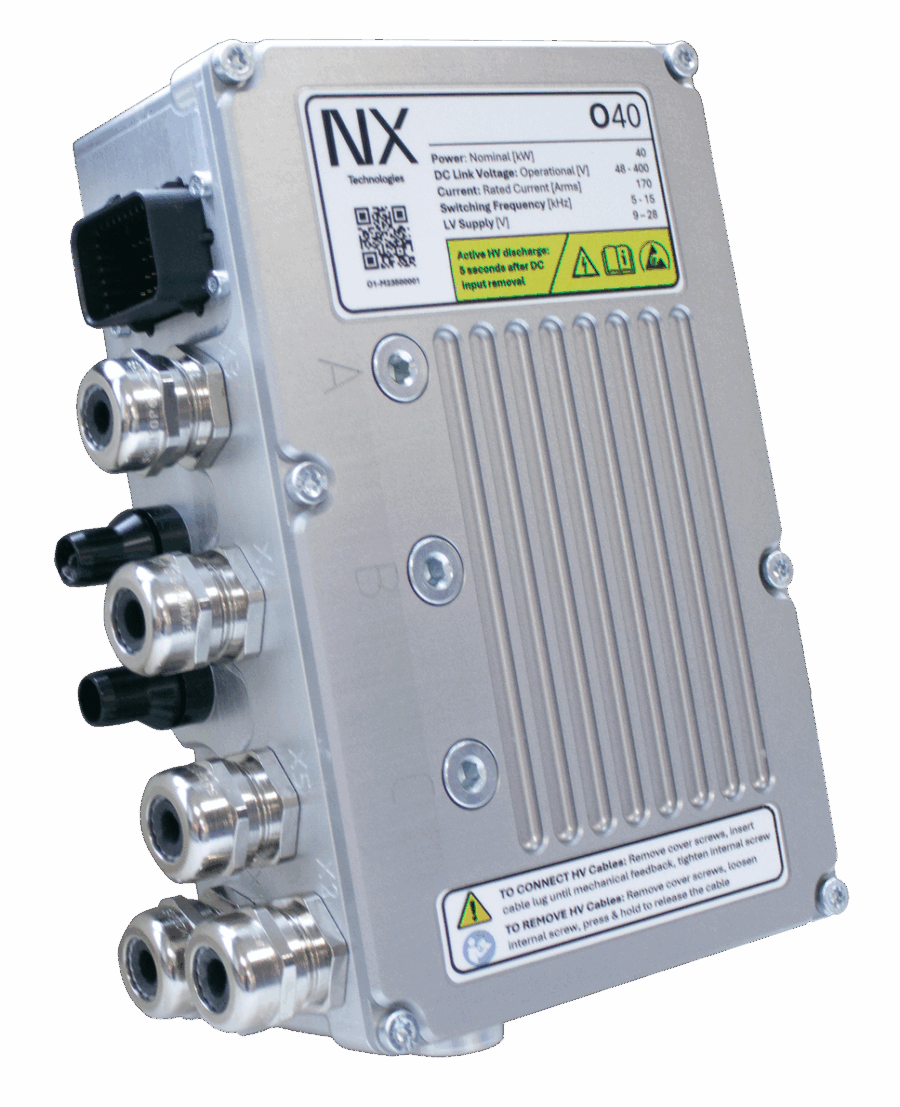

NX Technologies O40 size controller

NX Technologies O40 size controller

Out of stock
NX Voltage
Request Quote
Request Quote

Excluding VAT

Ask for lead time / quote

Motor Pairing Considerations

Most customers speak to us before purchasing to ensure compatibility with:

  • Load profile: Is the motor driving a constant load, variable load, or shock loads?
  • Duty cycle: Continuous vs intermittent use, peak vs average power demand.
  • Environment: Marine (corrosion, humidity), agriculture (dust, mud), motorsport (heat, vibration).
  • Power/torque curve (does the motor deliver the torque at the speed you need?).
  • Cooling requirements (air vs liquid cooled, ventilation needs).

Contact us for any questions on motor pairing!

NX Technologies O40 - Ultra‑Compact 40 kW Inverter for 400-800 V Systems

The NX Technologies O40 is a lightweight, ISO 26262‑ready inverter designed for auxiliary drives, e‑compressors, marine systems, hybrid platforms, and light EV traction. Delivering up to 40 kW in a 2 kg enclosure, it offers exceptional power density and advanced control capability, including NX’s VarioSwitch™ efficiency technology and EVITA‑grade cybersecurity.

Key Highlights

  • Up to 40 kW output for 400–800 V systems

  • Mass: 2 kg — extremely high power density

  • 400 V and 800 V variants available

  • 170 A (400 V) or 110 A (800 V) phase current

  • ASIL‑D‑capable control platform with triple‑core MCU

  • EVITA HSM cybersecurity module (ISO 21434)

  • Torque, speed, Id/Iq, and sensorless control

  • Supports resolver, encoder, xMR, BiSS

  • Real‑time calibration & monitoring tools via DeveLink™

A compact, safety‑certified inverter built for demanding auxiliary and traction applications where size, efficiency, and reliability matter.

Quick Reference Table

Feature Value
Nominal Power 40 kW
Voltage Options 400 V or 800 V
Mass 2 kg
Phase Current 170 A (400 V), 110 A (800 V)
Control Platform ASIL‑D triple‑core MCU
Cybersecurity EVITA HSM (ISO 21434)
Motor Types PMSM, ACIM, BLDC
Sensor Support Resolver, Encoder, xMR, BiSS, Sensorless

Specifications

Product Datasheet

 Datasheet

Dimensions

 -

Manual

 -
