Motor Pairing Considerations

Most customers speak to us before purchasing to ensure compatibility with:

  • Load profile: Is the motor driving a constant load, variable load, or shock loads?
  • Duty cycle: Continuous vs intermittent use, peak vs average power demand.
  • Environment: Marine (corrosion, humidity), agriculture (dust, mud), motorsport (heat, vibration).
  • Power/torque curve (does the motor deliver the torque at the speed you need?).
  • Cooling requirements (air vs liquid cooled, ventilation needs).

Contact us for any questions on motor pairing!

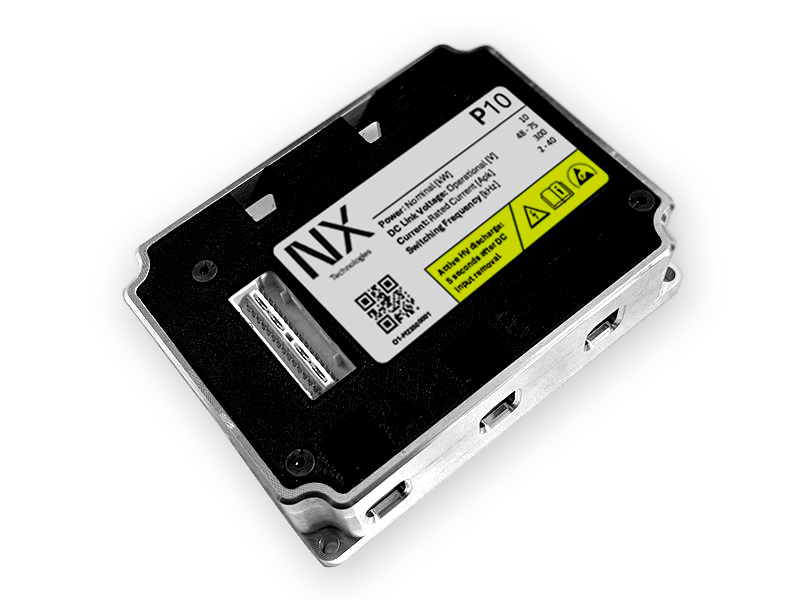

NX Technologies P‑Series — Ultra‑Compact 48–72 V Inverters up to 10 kW

The NX Technologies P‑Series (models P5 and P10) are ultra‑compact, high‑efficiency inverters designed for 48–72 V light‑mobility applications. They deliver up to 10 kW of power in an enclosure weighing only 0.7 kg, making them ideal for e‑motorbikes, scooters, forklifts, marine drives, compressors, and small traction systems. Search results confirm the P‑Series is built on an automotive‑grade ASIL‑D‑capable control platform with advanced features such as VarioSwitch™ and DeveLink™ tools.


Key Highlights

  • Up to 10 kW power capability (P10 model)

  • 48–72 V operating range for light EV and industrial systems

  • Mass only 0.7 kg — extremely high power density

  • Advanced control platform: ASIL‑D hardware, triple‑core MCU, 6 lockstep cores

  • Supports resolver, encoder, xMR, sensorless control

  • VarioSwitch™ adaptive gate drive for maximum efficiency

  • DeveLink™ calibration & programming tools for real‑time tuning

  • 12–75 V DC link capability depending on model (P5 vs P10)

Quick Comparison Table

Model Power Voltage Mass Dimensions
P5 5 kW class 48–72 V 0.7 kg Same enclosure family
P10 10 kW class 48–72 V 0.7 kg 108 × 80 × 30 mm
