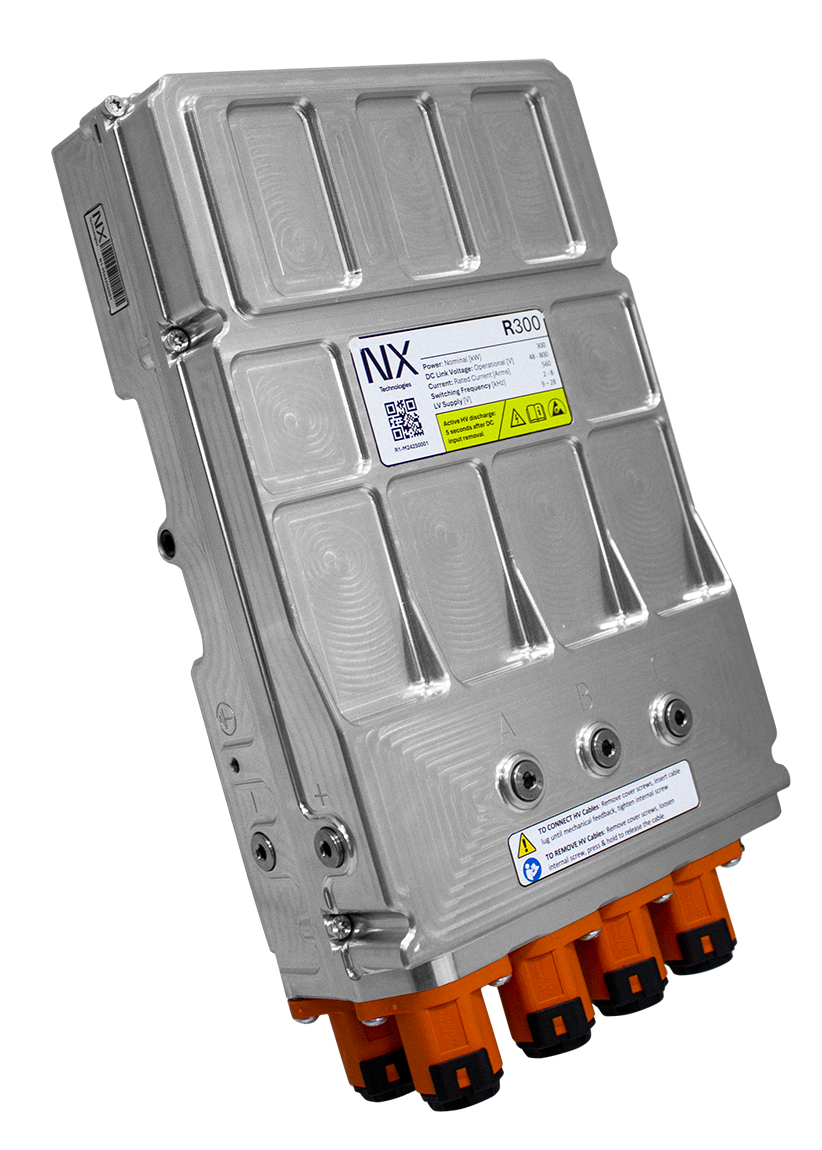

NX Technologies R300 size controller

NX Technologies R300 size controller

Out of stock
NX Voltage
Request Quote
Request Quote

Excluding VAT

Ask for lead time / quote

Motor Pairing Considerations

Most customers speak to us before purchasing to ensure compatibility with:

  • Load profile: Is the motor driving a constant load, variable load, or shock loads?
  • Duty cycle: Continuous vs intermittent use, peak vs average power demand.
  • Environment: Marine (corrosion, humidity), agriculture (dust, mud), motorsport (heat, vibration).
  • Power/torque curve (does the motor deliver the torque at the speed you need?).
  • Cooling requirements (air vs liquid cooled, ventilation needs).

Contact us for any questions on motor pairing!

The NX Technologies R300 is a high‑power‑density traction inverter engineered for modern 800 V electric and hybrid platforms. Delivering up to 300 kW continuous power in a remarkably compact package, it combines automotive‑grade safety, advanced control capability, and cutting‑edge efficiency features such as NX’s VarioSwitch™ technology. Designed for heavy‑duty EVs, commercial vehicles, marine systems, and fuel‑cell applications, the R300 offers exceptional performance.

Key Highlights

  • 300 kW continuous power in a 7 kg / 7 L package

  • 800 V system capability

  • IGBT powerpack up to 1200 V / 800 A peak phase current

  • ASIL‑D capable triple‑core control board @ 300 MHz

  • Redundant HV supply and safety‑critical functions

  • Supports resolver, absolute encoder, incremental encoder, xMR, BiSS

  • Advanced control: torque, speed, Id/Iq, sensorless

  • VarioSwitch™ adaptive gate drive for up to 4% efficiency gain

  • HSM (Hardware Security Module) on board

  • 2× CAN communication channels

A lightweight, integration‑ready inverter built for demanding traction and fuel‑cell systems where power density, safety, and efficiency are non‑negotiable.
