SKAI 45 A2 GD12-WQI

SKAI 45 A2 GD12-WQI

16 in stock
£5,499.00
£5,499.00 £7,000.00

Excluding VAT

Motor Pairing Considerations

Most customers speak to us before purchasing to ensure compatibility with:

  • Load profile: Is the motor driving a constant load, variable load, or shock loads?
  • Duty cycle: Continuous vs intermittent use, peak vs average power demand.
  • Environment: Marine (corrosion, humidity), agriculture (dust, mud), motorsport (heat, vibration).
  • Power/torque curve (does the motor deliver the torque at the speed you need?).
  • Cooling requirements (air vs liquid cooled, ventilation needs).

Contact us for any questions on motor pairing!

Up to 21% off

For a limited time, you can grab a SKAI at our discounted price!

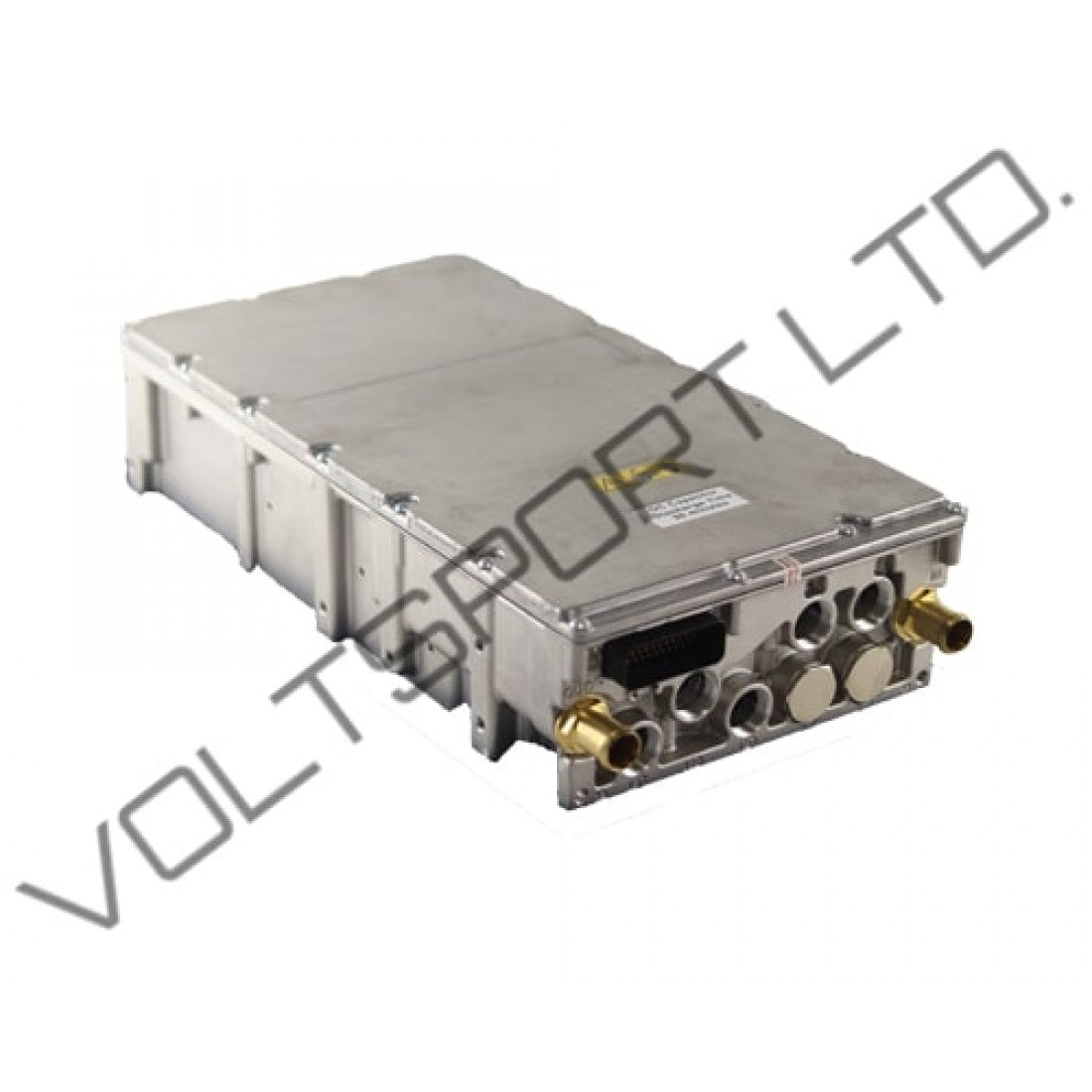

The Semikron SKAI 45 A2 GD12‑WQI is a high‑power three‑phase IGBT inverter engineered for hybrid and electric vehicle platforms that demand maximum reliability and thermal performance. With 800 V DC capability, 300 A nominal current, and a fully integrated IP67‑rated enclosure, it delivers exceptional power density and overload capability for traction and industrial applications.



Semikron was acquired by Danfoss, but we still have these motor controllers in stock.



We can also provide the software to configure these controllers, please specify you require this (no additional cost).

Key Highlights

  • Optimised for HEV and EV applications with high power density and overload capability
  • Integrated V, I, and temperature sensors for precise system monitoring.
  • Built‑in gate driver and protection features for safe, robust operation.
  • Liquid‑cooled IP67 enclosure for harsh‑environment durability
  • 12 V / 24 V tolerant power supply for flexible vehicle integration
  • CAN‑based control interface with optional SKAIware software support
  • 800 V max DC input and 300 A nominal output for high‑power traction systems

Specifications

Product Datasheet

 Datasheet

Dimensions

 Approximately: 475mm Width: 244mm Height: 109mm

Manual

 -
SKAI 45 A2 GD12-WQI

£5,499.00

Does it come with a warranty?

Yes most products have a standard warranty, motors and controllers have extended warranty; used or second-hand products will not have warranty, but your purchase will still be protected. We would never sell you a product we have not inspected ourselves.

What happens if I don't like it?

If you are facing technical issues, let us help you first. We know how tricky it can be with wires, pins and complicated tools so let us see if we can figure it out first. In the chance that your product is defective, then you can use our returns process.

How fast is shipping?

UK Economy - 4 Days

UK Express 2-3 Days

International shipping can vary.

Items can also be collected from our facilities, but please advise us when you want to collect and access to forklift truck etc.

What's the returns policy?

Add your collapsible row content here. If it's set to open one row at a time, consider keeping the content in each row about the same length.
