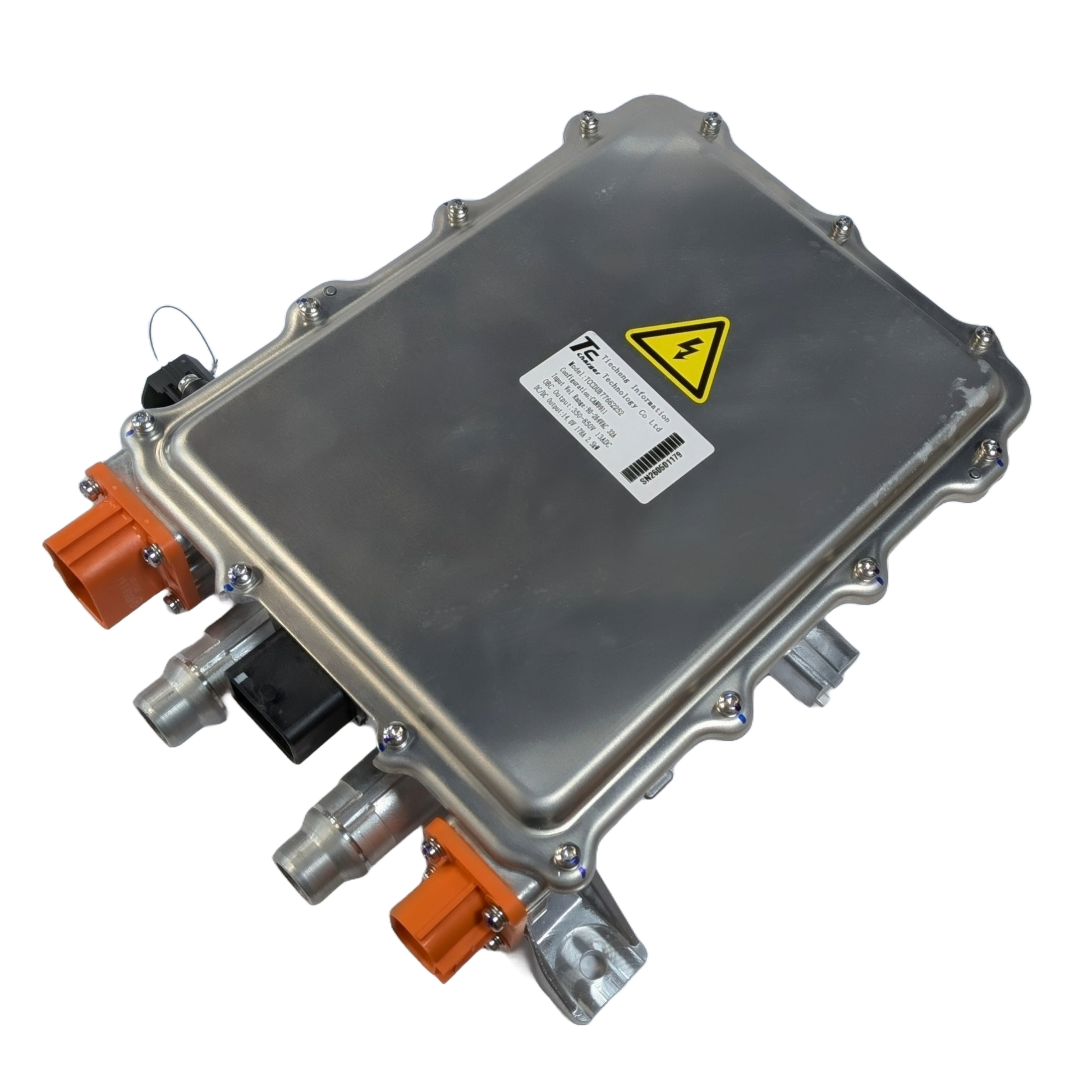

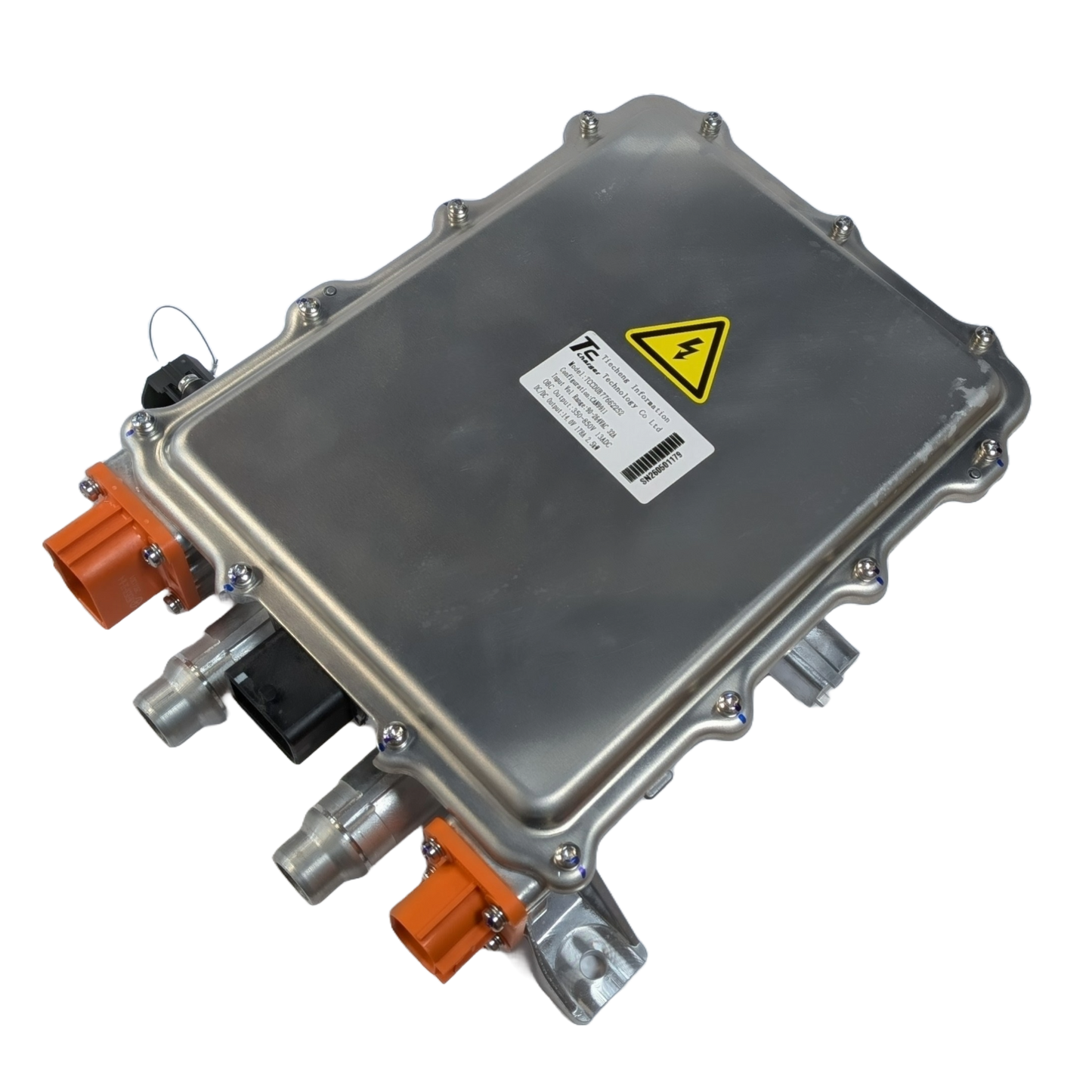

Bi-Directional On-Board Charger with DCDC 500V 20A 6.6kW

Bi-Directional On-Board Charger with DCDC 500V 20A 6.6kW

2 in stock
Request Quote
Request Quote

Excluding VAT

Ask for lead time / quote

Motor Pairing Considerations

Most customers speak to us before purchasing to ensure compatibility with:

  • Load profile: Is the motor driving a constant load, variable load, or shock loads?
  • Duty cycle: Continuous vs intermittent use, peak vs average power demand.
  • Environment: Marine (corrosion, humidity), agriculture (dust, mud), motorsport (heat, vibration).
  • Power/torque curve (does the motor deliver the torque at the speed you need?).
  • Cooling requirements (air vs liquid cooled, ventilation needs).

Contact us for any questions on motor pairing!

The 500V Charger is a compact, high-performance power conversion solution that combines an On-Board Charger (OBC) and DC/DC Converter into a single integrated unit. Designed for electric vehicle and battery-powered applications, it delivers efficient AC charging, reliable low-voltage power supply, and auxiliary AC output through a robust CAN-controlled platform.


Featuring a wide AC input range and support for battery voltages from 200V to 500VDC, the charger provides up to 6.6kW charging power while simultaneously supplying 14V auxiliary power for vehicle systems. Integrated CAN communication enables seamless integration with vehicle control systems and battery management systems (BMS).


Key Features


 • 2-in-1 design: Integrated OBC and DC/DC converter
 • CAN9911 communication interface
 • Wide AC input range: 90-264VAC, 45-65Hz
 • High-power battery charging up to 6.6kW
 • Supports 200-500V battery systems
 • 14V auxiliary output up to 178A
 • Integrated DC-AC output capability up to 3.3kVA
Compact, efficient solution for EV applications

Specifications

Product Datasheet

 -

Dimensions

 -

Manual

 -

Manufacturer Part Number

 TCCDB66662252 (selected)
