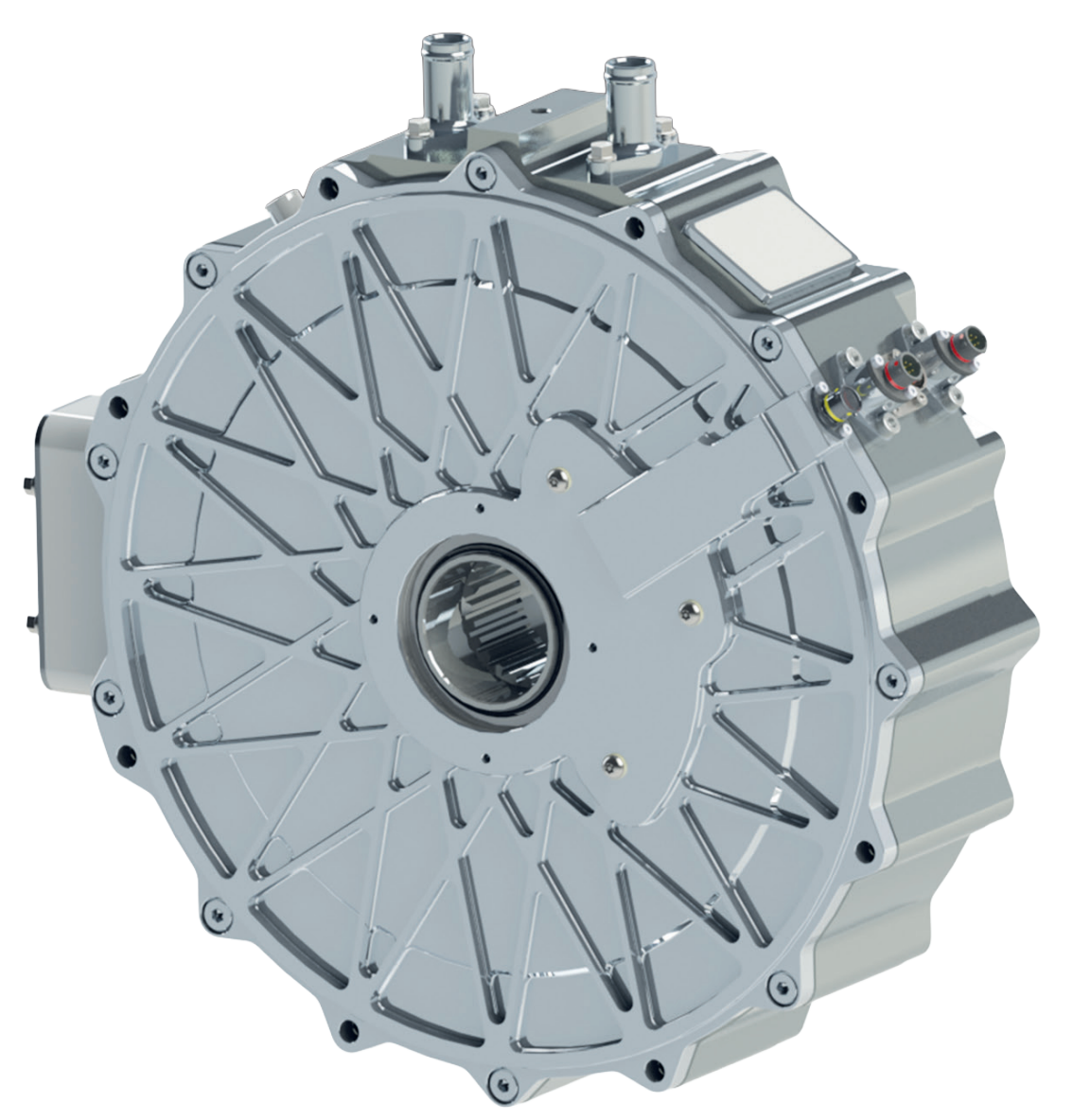

The YASA 750R is a high‑torque, axial‑flux electric motor engineered for applications where power density, efficiency, and packaging freedom are critical. Delivering up to 790 Nm peak torque, 200 kW peak power, and operating from 0–3250 rpm, it packs exceptional performance into an axial length of just 98 mm. Its unique yokeless, segmented‑armature design enables class‑leading torque density and outstanding thermal efficiency.
790 Nm peak torque for extreme low‑speed pulling power
Up to 200 kW peak power at 700 VDC with >95% efficiency
Ultra‑compact 368 mm × 98 mm form factor for tight packaging constraints
Axial‑flux topology delivering best‑in‑class torque and power density
Integrated position & temperature sensors for precise control and monitoring
Stackable through‑shaft design enabling even higher torque and power outputs
A lightweight (~37 kg), high‑efficiency motor built for traction, generation, and demanding electrification platforms where every millimetre and every Newton‑metre count.
